Hobbywing Motor Seaking 4685SL 1500kV V2 Båt 6-8S
1 485 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: HW30419001
Hobbywingh 30419001 - SEAKING 4685 V2 1500KV 6-8S Marine ESC
Engineered for Power, to Dominate the Water with Outstanding Performance.
Powerful output with smooth startup, perfect for big size boats
Eye-catching water cooling jacket with excellent cooling performance
Optimized ESC Compatibility: Designed for seamless integration with the SEAKING 200A HV V4 ESC, enabling higher speeds and increased power output when paired
Durable build: CNC aluminum case, high-temp coils, Kevlar-wrapped rotor, ultra-thin silicon steel sheet，stainless shaft, and premium bearings
Modular design for easy maintenance
Efficient Heat Dissipation, Lower Operational Temperatures

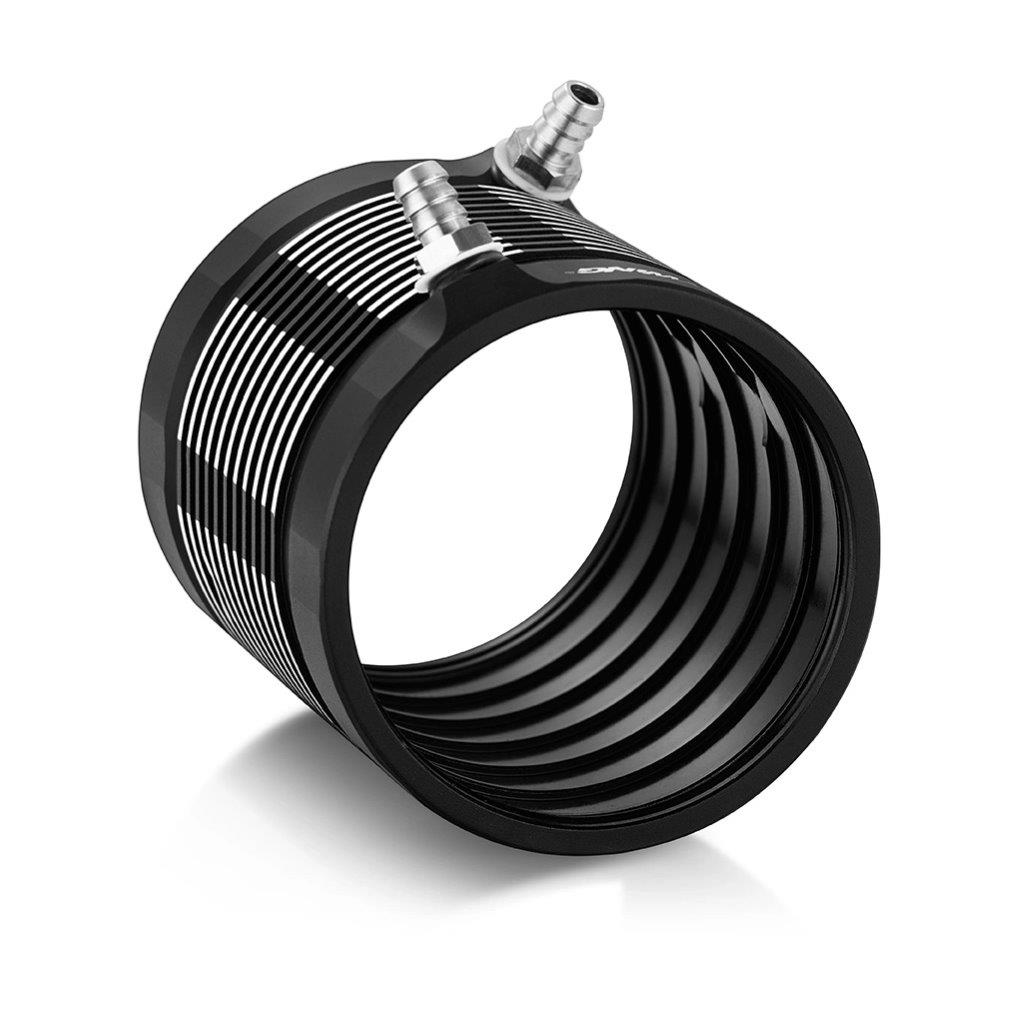

The motors water-cooling jacket features a high-efficiency internal circulation design, with external cooling fins and fan blade-shaped ventilation holes on the front and rear end caps. This design not only enables rapid motor cooling but also ensures stable performance and consistent power output during prolonged high-power and high-torque operation.

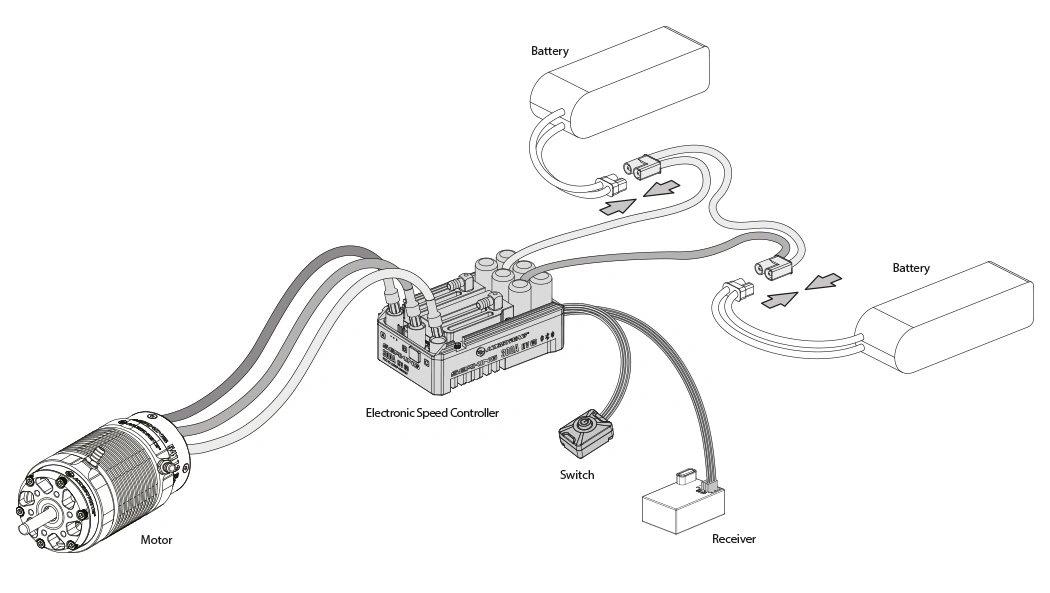

Perfectly Compatible with SeaKing 200A HV V4 ESC
When paired with the SeaKing 200A HV V4 ESC, the motor delivers smoother control, faster response, and a more exhilarating experience!
Combining Style and Performance
The motor end caps feature fan blade-shaped cooling holes inspired by propeller designs. The water-cooling jacket is equipped with CNC-machined polished cooling fins, combined with a golden-ratio design. This not only delivers exceptional performance but also offers a visually striking appearance.
Two KV Options for the 4685 motor Enhanced Compatibility
The 4685 motor is available in two versions: 900KV (6-14S) and 1500KV (6-8S), meeting configuration requirements for different voltage ranges and propeller setups.
900KV: 6-14S LiPo
1500KV: 6-8S LiPo
Reliable Materials and Durable Construction
Constructed with a high-hardness CNC aluminum housing, premium brand high-quality bearings, ultra-thin silicon steel laminations, high-temperature oxygen-free copper wire, high-temperature explosion-proof rotor, and high-toughness alloy output shaft. Every material is carefully selected to ensure the motor delivers long-lasting and stable performance.
High-hardness CNC Aluminum Housing
Ultra-thin Silicon Steel Laminations
High-temperature Explosion-proof Rotor
High-toughness Alloy Output Shaft
Premium Brand High-quality Bearings
High-temperature Oxygen-free Copper Wire

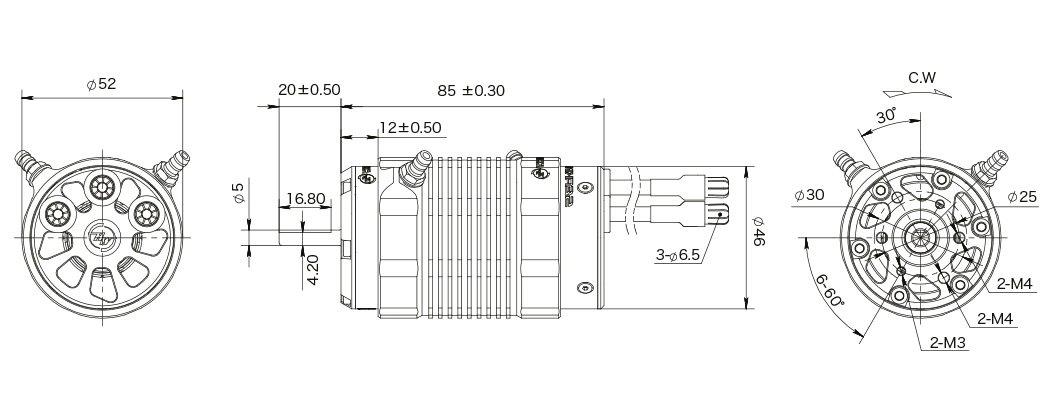

Seaking 4685SL 1500KV V2 Specs:
Type: Brushless Sensorless 4-Pole Marine Motor
KV Rating: 1500
LiPo Cells: 6-8S
No-load Current: 4.7A
O.D.: 46mm
Length: 85mm
Shaft Diameter: 5mm
Weight: 642g
Front Bearing: OD19xID6xT6mm
Rear Bearing: OD15xID6xT5mm
Rec. ESC: Seaking 200A HV V4
Rec. Boat Size: ≤140cm
Ursprungsland: CN
Elmotor Applikation: Båt
Motortyp: Borstlös
kV-värde: 1500 kV
Motor diameter: 46 mm
Motor längd: 85 mm
Motor Vikt: 642 gram
Motoraxel diameter: 5 mm
Motor Max Spänning: 29,6 V
