Hobbywing Motor XeRun 3652SD G3 5300kV 5mm Axel
971,25 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: HW30401065

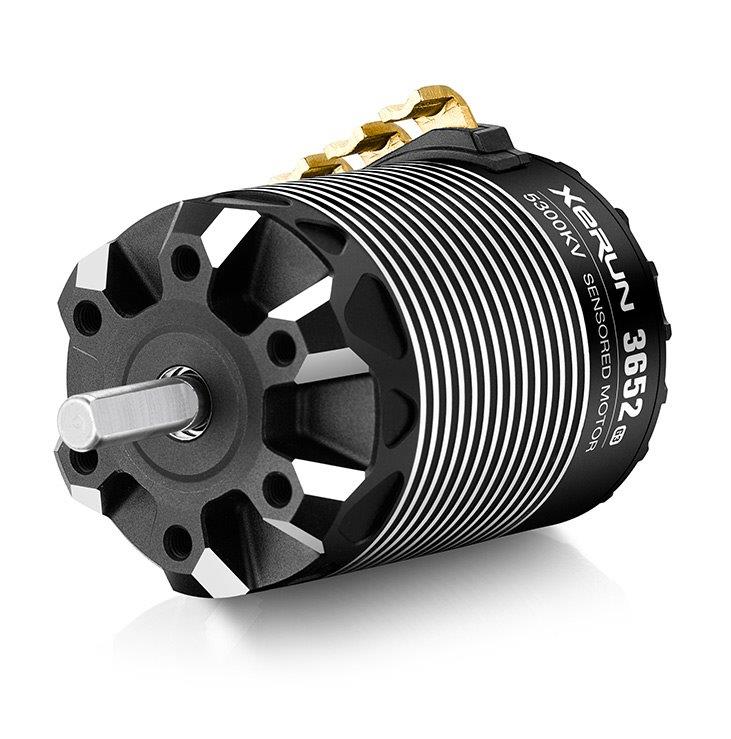

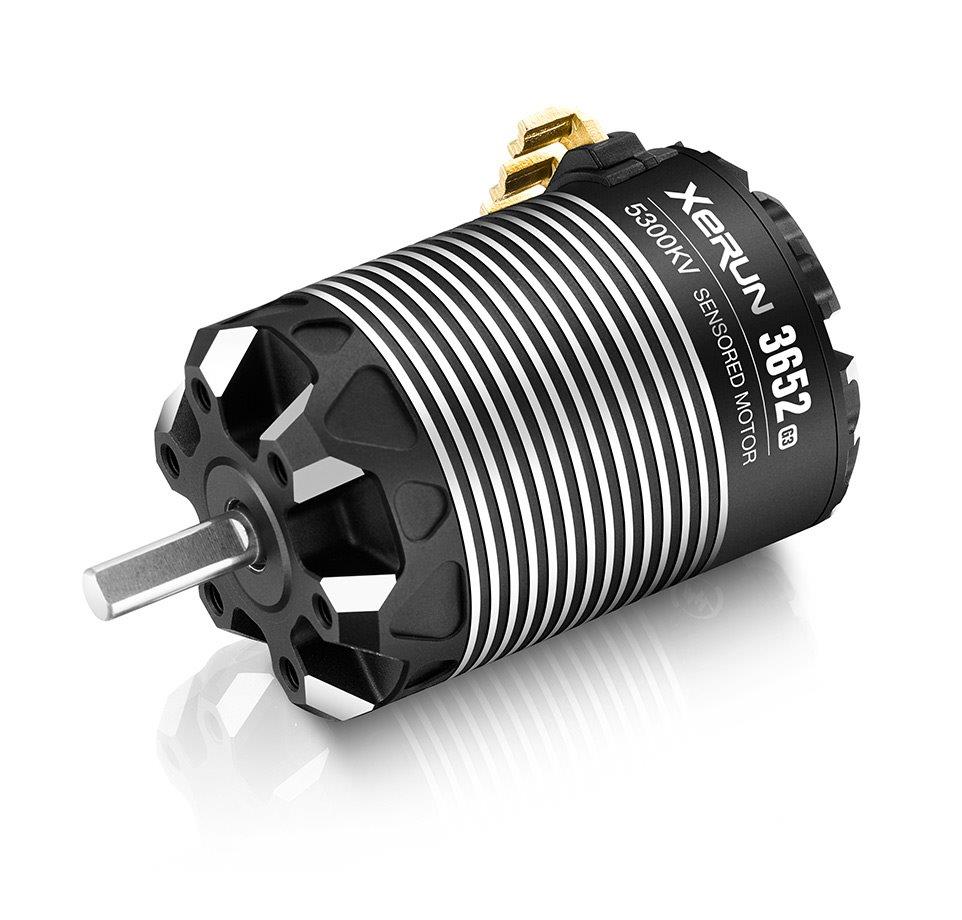

Hobbywing HW30401065 - XeRun 3652SD G3 5300kV Sensored Brushless Motor - 5mm shaft
Overall Power has been improved when compared to the previous generations (G2), the new G3 series offers better overall power and efficiency.
With the 3652-4500KV motor showing a power increase of 5%
Large power gains after turbo is turned on
Compared to the XeRun 3652/3660 G2 motor, the maximum Motor RPM increases by 50% to 100% when the Turbo timing is activated at 24°.
Safe and reliable motor hall sensor system
The motor utilizes a patented 'error-free' hall sensor system, with an independent high-speed, high-precision encoder that consistently outputs a pure rotor position signal. This design prevents sensor signal interference, ensuring stable operation sensored.

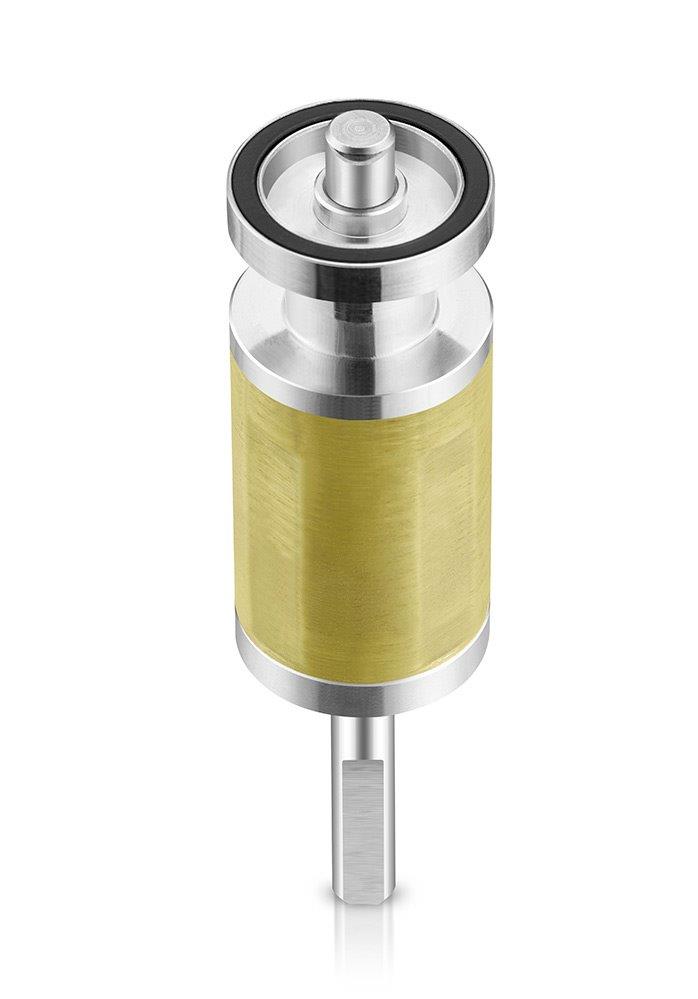

Ultra Reliable rotor design
Compared with the XeRun 3660 G2 motor, the XeRun 3660 G3 boasts up to 75,000 RPM, even under high temperatures of up to 140°C. The rotor durability has been increased by over 15%, ensuring trouble free operation in the most demanding conditions.
Excellent dust resistance
The motor has a protection rating, providing excellent performance. It is designed to easily cope with the challenges of off-road, track environments.

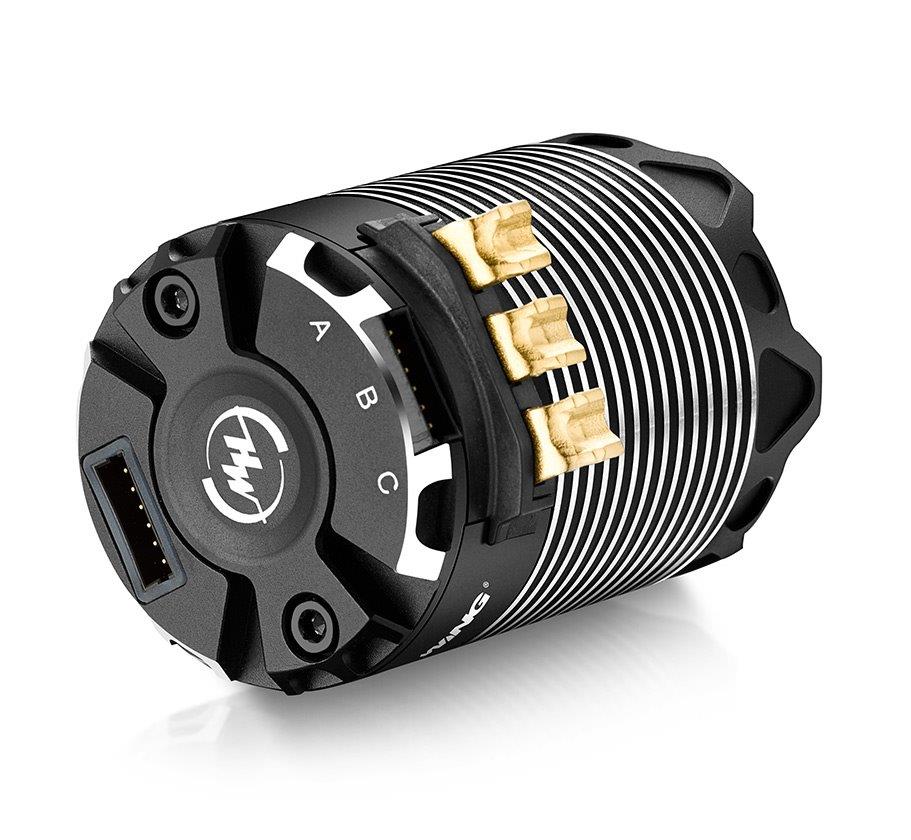

Dual hall sensor ports design for ease of wiring
The dual hall sensor output socket design on the end-bell of the motor accommodates various wiring needs. Additionally, a custom-made dust-proof plug protects unused sockets, preventing dirt from entering them.

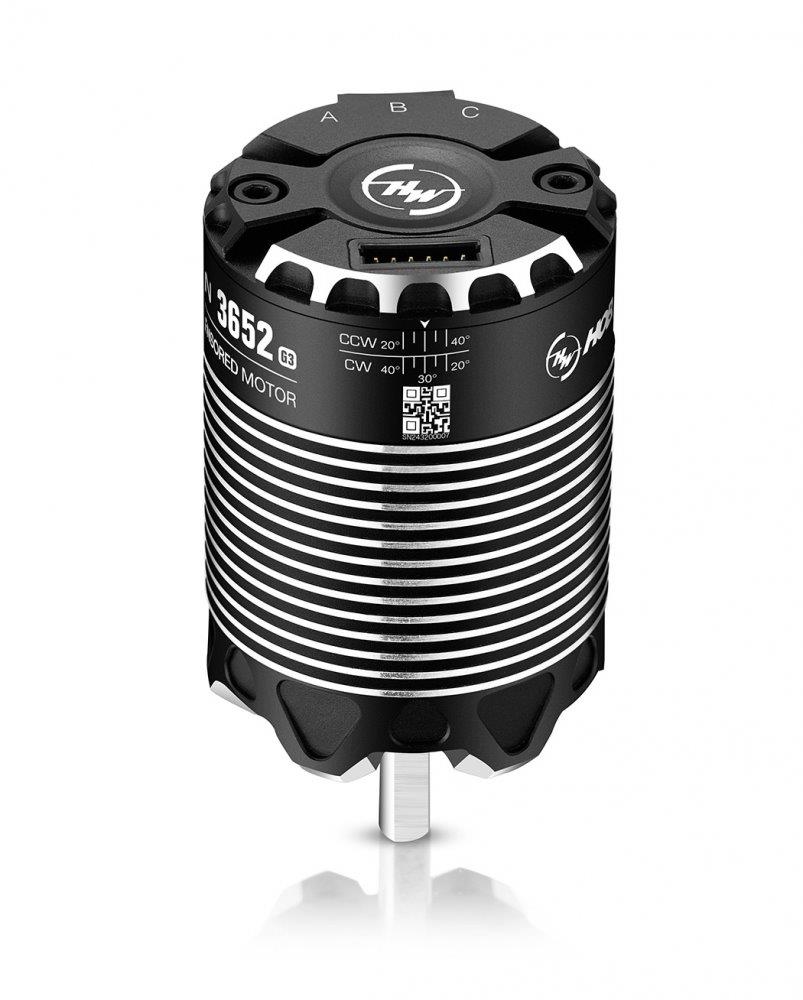

Precise adjustment of two-way mechanical advance timing
The mechanical advance timing of the motor is adjustable in both directions (CW/CCW) within a range of 20-40°
This flexibility allows user to fine-tune the motor's output power
Ensuring it meets the specific power needs of various applications

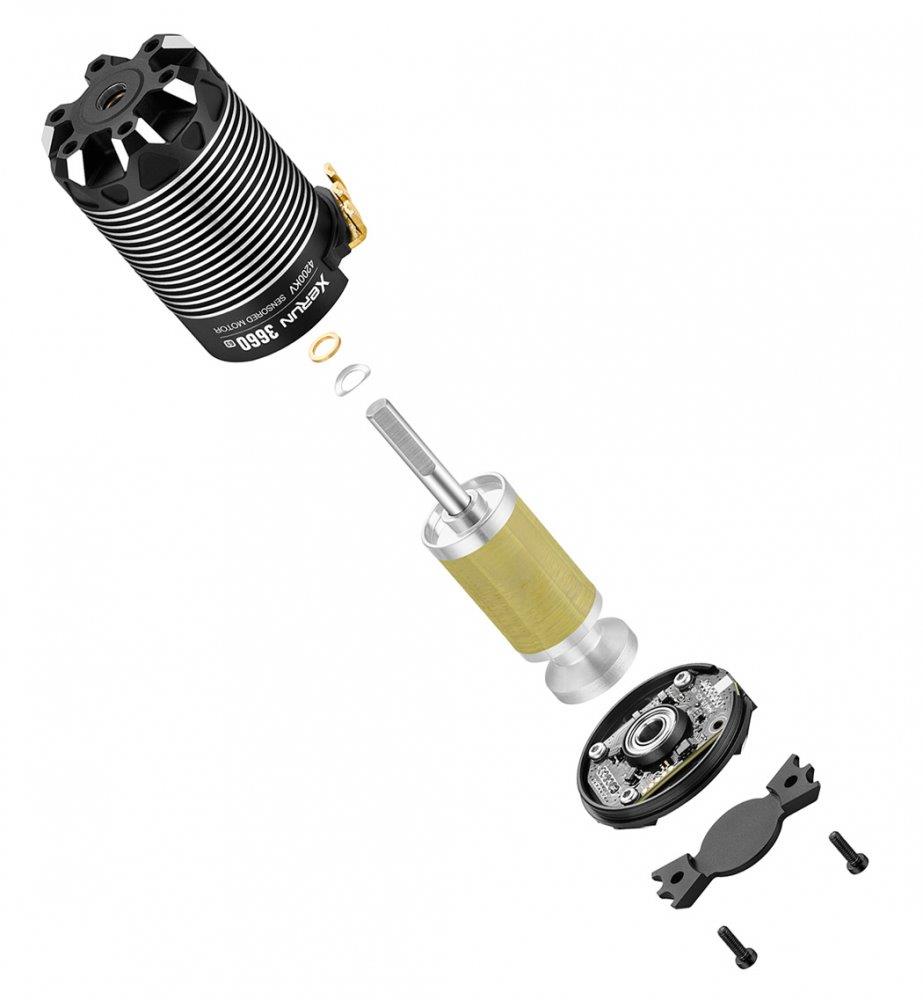

Easy to service and maintain
The motor features a modular structure design that simplifies daily cleaning and maintenance. This design prolongs the motors service life while maintaining its working efficiency.
Smooth cog free operation
The motor features a low cogging design and minimal torque pulsation, ensuring smooth and precise operation, especially at low speed. This results in excellent feel and performance.
Specs:
Type: 1/10, Brushless, Sensored
Pole Count: 4
KV Rating: 5300
LiPo Cells: 2S
No-load Current: 7.5A
O.D.: 36.6mm
Length: 53mm
Shaft Diameter: 5
Weight: 194g
Front Bearing: OD13xID5xT4mm
Rear Bearing: OD11xID5xT5mm
Rec. ESC: XERUN XR8 PRO G3
Vehicles: 1/10 Short course car (2WD), Buggy, Rally
