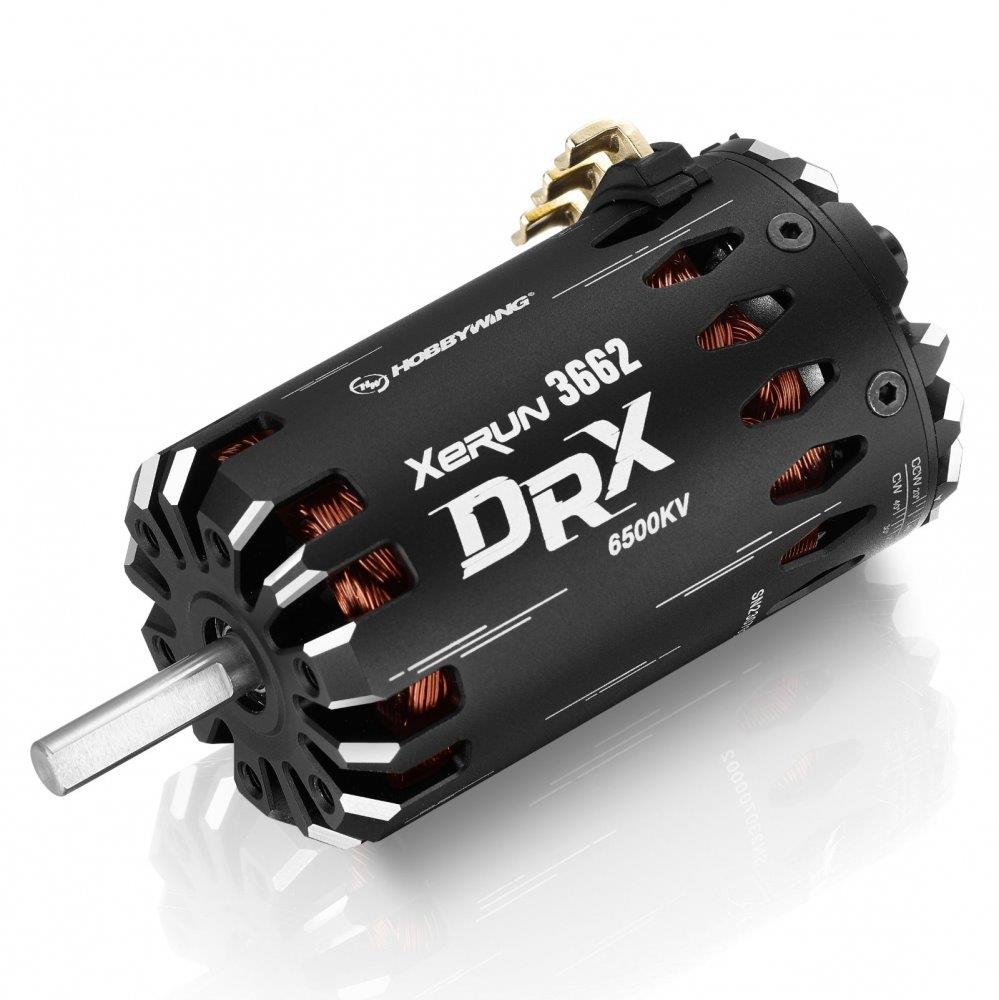

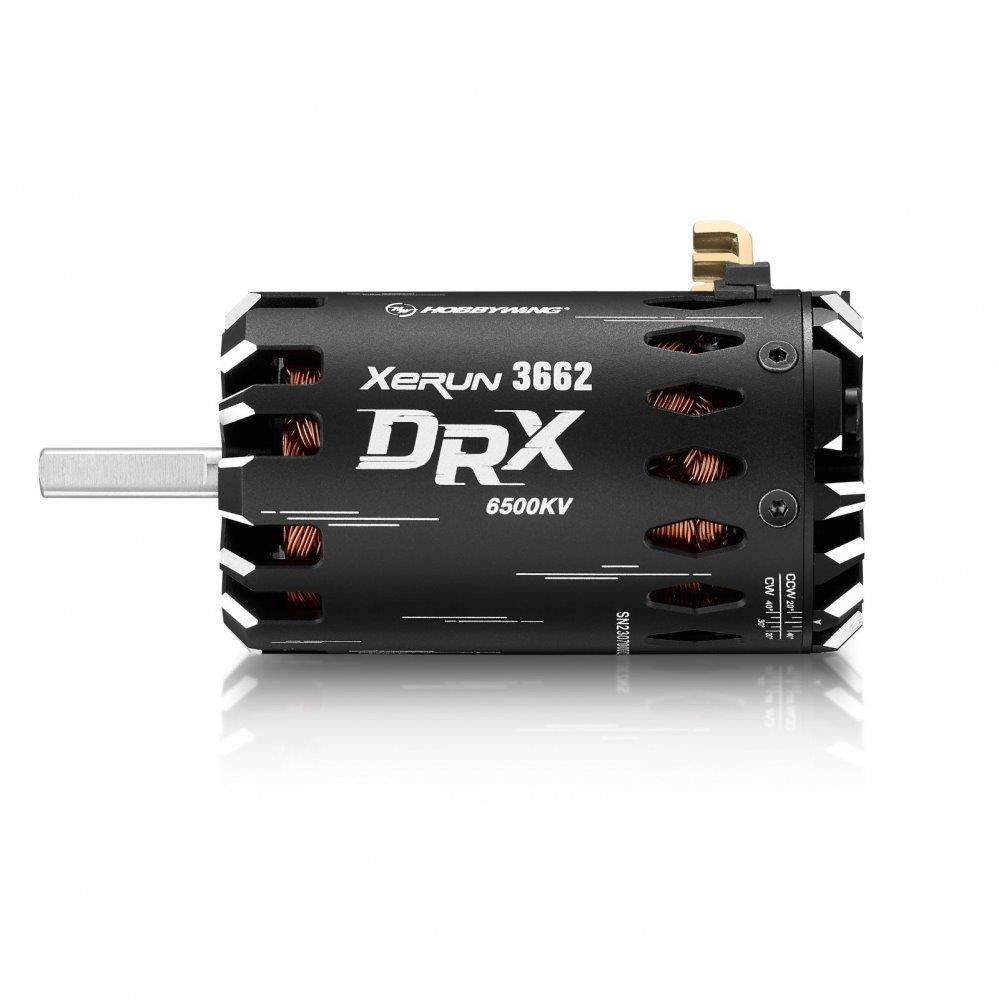

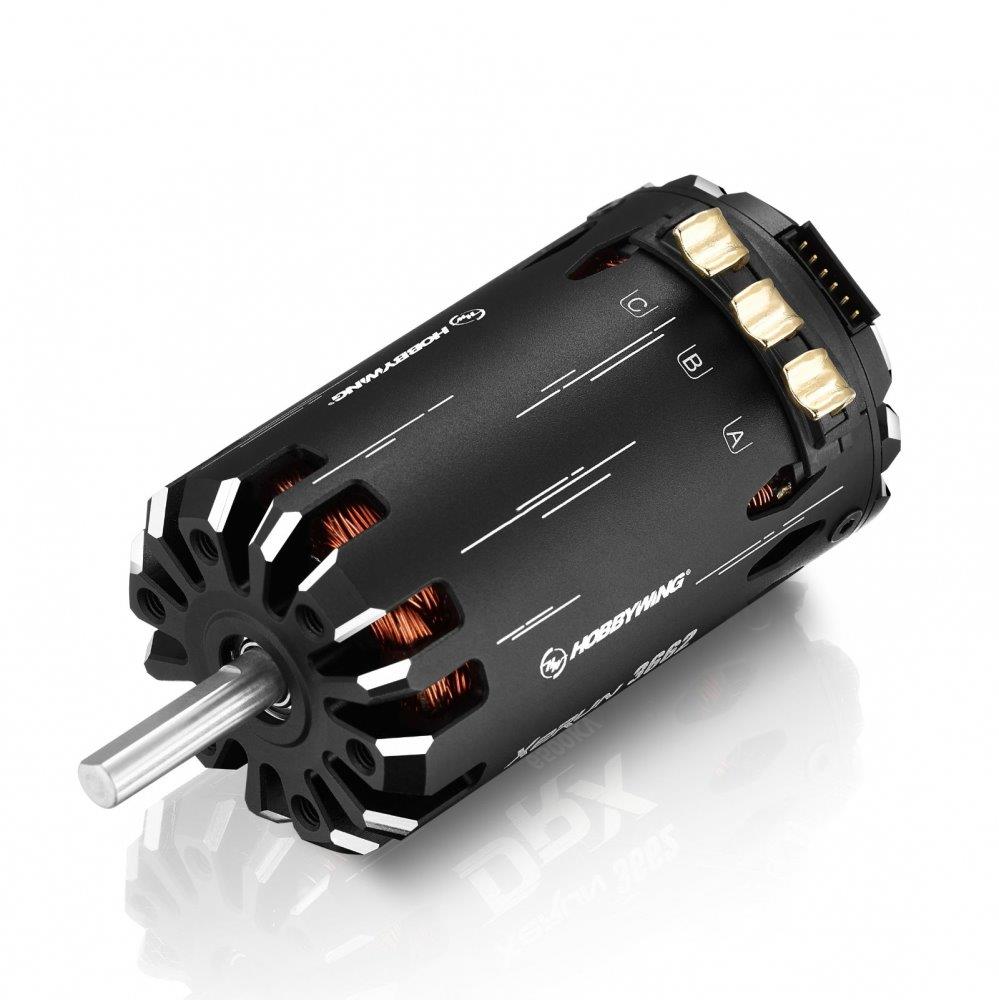

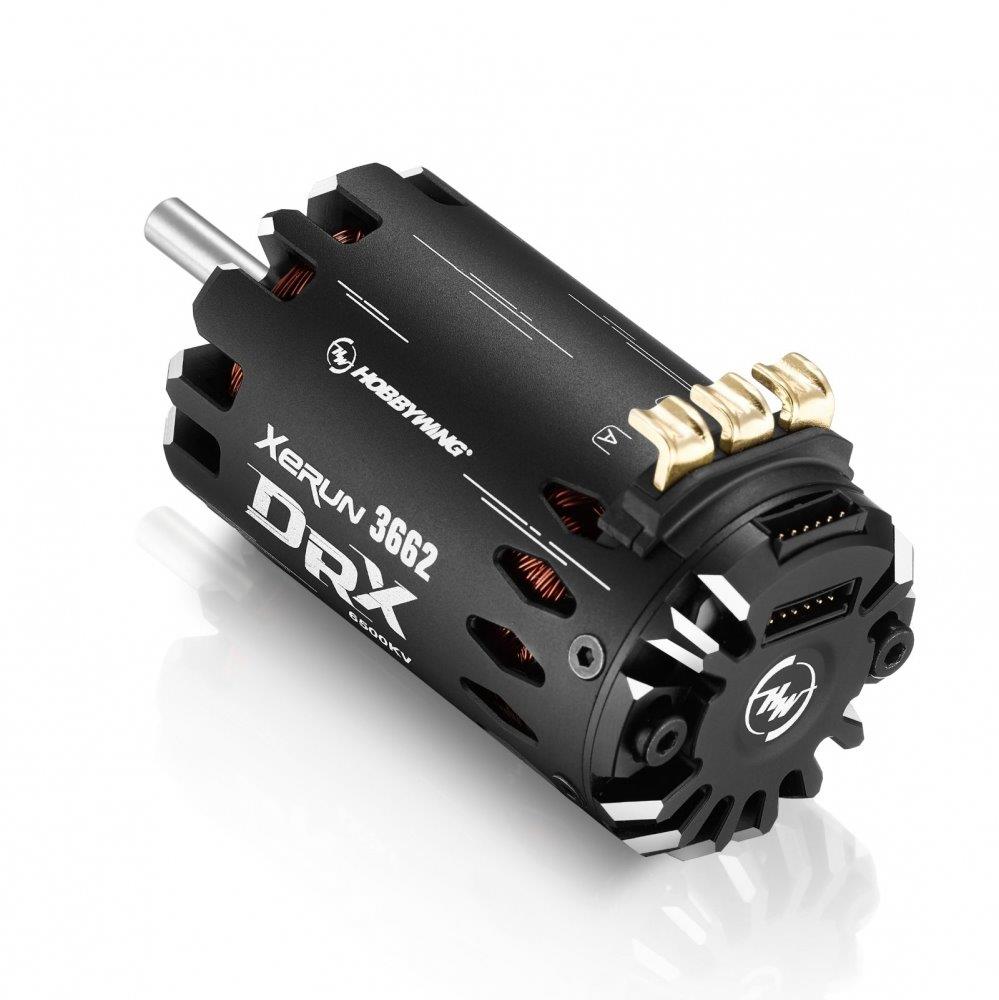

Hobbywing Motor XeRun DRX 3662SD 6500kV 5mm Axel Drag Racing

HW30401352 - Motor XeRun DRX 3662SD 6500kV 5mm Axel Drag Racing

• Ultra high rpm, super power, specially designed for Drag Racing.
• The motor case and end cover are of big opening structure, providing the best heat dissipation effect for the motor.
• Dual sensor interface design to meet various wiring/layout requirements.
• Widened and thickened copper bar design provides guarantee for large current application.
• The rotor adopts steel sleeve explosion-proof design, which withstand ultra-high rpm running conditions.

Type

• Scale:1/10
• Brushed/Brushless: BL
• Sensored/Sensorless: SD
• Pole Count: 4

Relevant Parameters

• KV Rating: 6500KV
• LiPo Cells: 2S LIPO
• No-load Current(A): 8.0A

Size & Weight

• O.D.(mm):36
• Length (mm): 63
• Shaft Diameter (mm): 5
• Weight (g): 240g
• Front Bearing: D11xD5xT5
• Rear Bearing: D8xD3xT4

Other Parameters

• Vehicles: 1/10 Drag Racing

Applikation: Bil
Motortyp: Borstlös
kV-värde: 6500 kV
Motor diameter: 36 mm
Motor längd: 63 mm
Motoraxel diameter: 5 mm
Vikt: 240 gram
