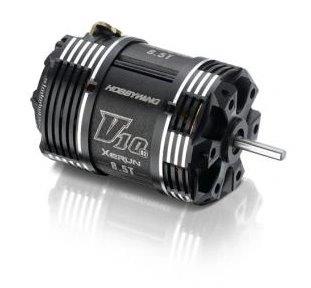

Hobbywing Motor XeRun V10 8.5T G3
956,25 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: HW30401111
Hobbywing XeRun V10 G3-8.5T
Its a motor specially designed for high-level racing. The RMP of G3 Stock motor is significantly improved, the KV & torque are improved by 16% and 4% respectively, compared with the V10 G2 Stock motor.
Lightweight. The G3 Modified & Stock motors only weigh 161g & 132g respectively, the weights are reduced by 11% & 21% when comparing with the V10 G2 motors.
The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
The mechanical timing can be adjusted finely and smoothly; the skid-proof lines on the rear end plate of the motor guarantee stability of the timing after adjustment. For G3 Stock motors (10.5T~25.5T), the timing is adjustable from 30 degrees to 60 degrees; for Modified motors (3.5T~8.5T), the timing is adjustable from 20 degrees to 50 degrees.

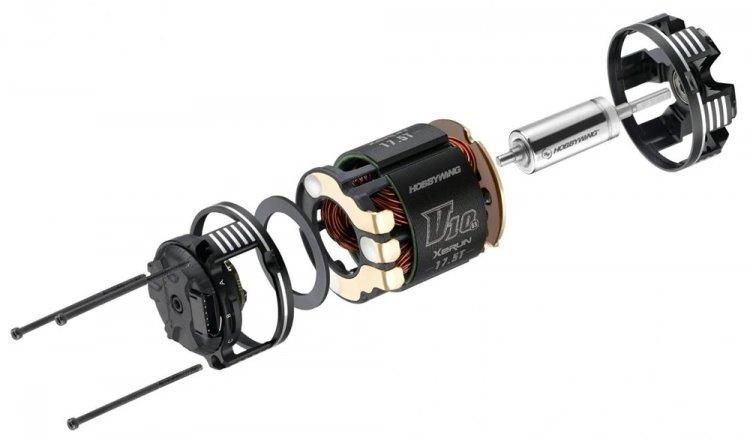

The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.

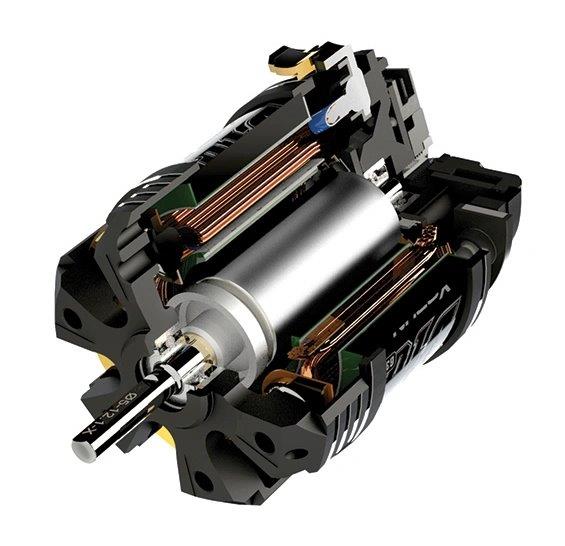

The special shell design which makes the stator core expose to the air maximizes cooling. Big holes on the end plates of 10.5T~21.5T motors further help reduce heat; small holes on the end plates of 5.5T~8.5T motors effectively keep sand or dirt from getting inside and damaging the motor(s).
The use of high-performance stator core, heat ( 200°C) - resistant wire, heat (200°C) - resistant rotor with strong structure, imported high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding performance and super durability.
Asymmetric Bearings: By comparison (with the V10 G2 motor), for improving the load-carrying capacity, the size of the front bearing of the G3 motor is increased by 26% ; while for lower resistance, the size of the rear bearing is reduced by 6%. The asymmetric bearing design will make the motor running more stable and smooth.
Its compliant with IFMAR, ROAR, EFRA, BRCA rules, and certificated by RoHS, CE, FCC and etc.
8.5T Specs:
Application: 1/10 2WD Modified Class Off-road Racing
Type: Sensored Brushless
Poles: 2
KV Rating: 3970
LiPo: 2S
No Load Current: 2.8A
Max Power Output: 298W
Amp at max power: 84A
OD: 35.9 mm
Length: 51.2 mm
Shaft dia: 3.17 mm
Shaft length: 13.3 mm
Weight: 161 g
Std rotor: 5-12.5
Timing: 20-50° (Adjustable)
Ursprungsland: CN
Applikation: Bil
Motortyp: Borstlös
Rating: 8,5 T
kV-värde: 3970 kV
Motor diameter: 35,9 mm
Motor längd: 51,2 mm
Motoraxel längd: 13,3 mm
Motoraxel diameter: 3,17 mm
Vikt: 163 gram
Strömtålighet Peak: 84 A
Effekt Peak: 298 W
Special: Sensorbaserad
