Beskrivning
Art.nr: HW30209103
Hobbywing HW30209103 - Platinum HV 180A V5 ÉSC
Compact size with excellent heat dissipation
The new design allows for the ESC to be more compact and weigh less. The ESC can meet the demands of more crafts.

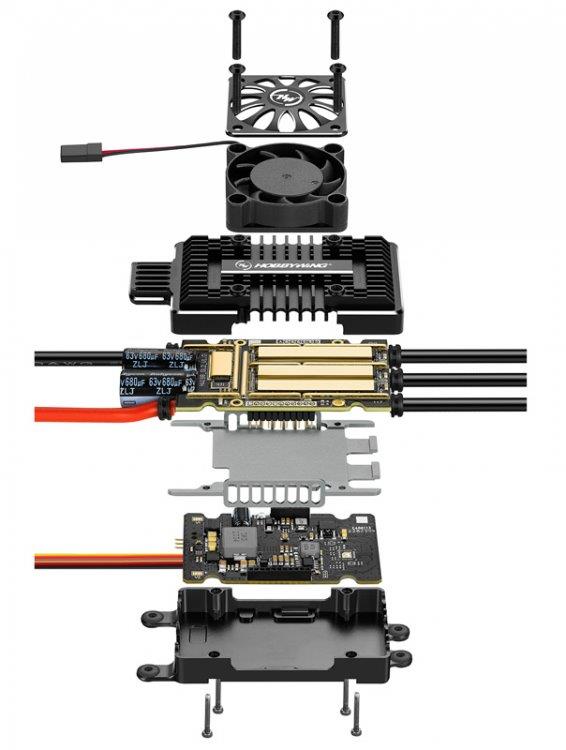

The ESC is redesigned with a double-sided heat sink with a side vent. The air is able to quickly pass through the inside of the ESC and cool the ESC more efficiently. This innovative air duct design is able to generate strong airflow on the entire ESC from the cooling fan. Significantly improving the cooling capability.
Built-in 12V Switch BEC for greater output capability
Instantaneous high current with a built-in 12V programmable BEC
The new circuit design raises the max output from 8.4V to 12V (5-12V adjustable)
The high-power BEC has added an anti-reverse circuit to use parallel with external 2S batteries at the same time to provide double protection.
Constant speed performance upgrade - Ultimate flight experience
The 32-bit processor combined with the RPM accuracy algorithm makes the ESC more powerful and more consistent, maximizing the RPM accuracy to enhance overall performance.
The adjustable constant speed sensitivity allows every pilot to easily find a setting that suits them personally.
Support multiples protocols - Strong adaptability
Supports Mikado VBar System, Futaba S.BUS2 and other devices data return protocols. Users are able to adjust parameters on the remote-control device (VBar protocol support) or check the working status of the ESC at any time.
Built-in anti-spark circuitry
The built-in anti-spark circuitry effectively eliminates the electric spark generated during battery connection. Prolonging the life of the battery connectors.
Multiple protections, double security
It has multiple protection functions, to effectively prolonging the lifespan of the ESC.
Start-up protection
Current protection
Temperature protection
Input voltage abnormality protection
Overload protection
Throttle signal loss protection
Capacitor temperature protection
Specs:
Brushless, High Voltage, Airplane or Helicopter ESC
Cont./Peak Current: 180A/260A
Input Voltage: 6-14S LiPo
BEC Output: Switch Mode：5-12V & Cont. 10A，Peak 30A
Input Wires: 10AWG-255mm
Output Wires: 10AWG-150mm
Input Connectors: No
Output Connectors: No
Firmware Upgrade: Supported
Telemetry Function: Mikado VBar & Futaba S.BUS2 etc.
Size: 100.6x45.5x26.1mm (without fan)
Weight: 250.6g (without fan)
Applications: 550-700 class electric helicopter (main rotor length 550-700mm) or fixed-wing aircrafts
ESC Programing via:
Transmitter: Not Supported
LED Program Card: Not Supported
LED Program Box: Not Supported
LCD Program Box: Supported
OTA Programmer: Supported
Program Port: Separate Program Port
