Hobbywing Platinum 4130SL 490kV 6S Motor D49.5 x 82.3mm 129A/2867W/55s
1 097,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: HW30416102

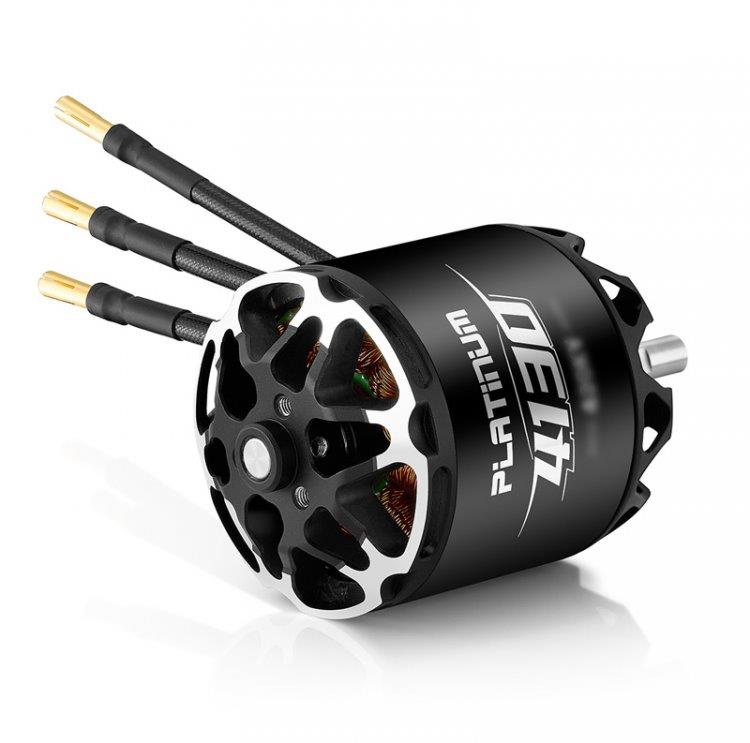

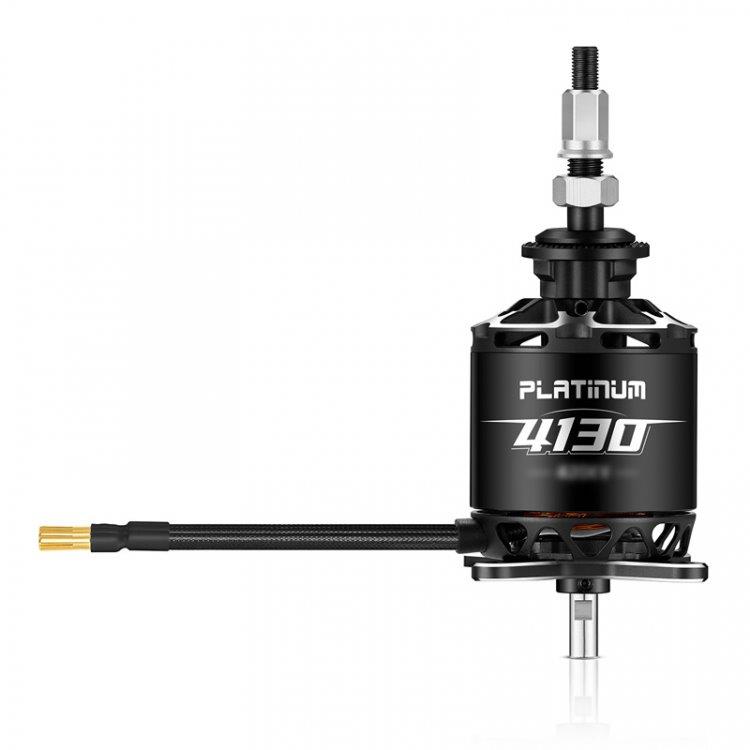

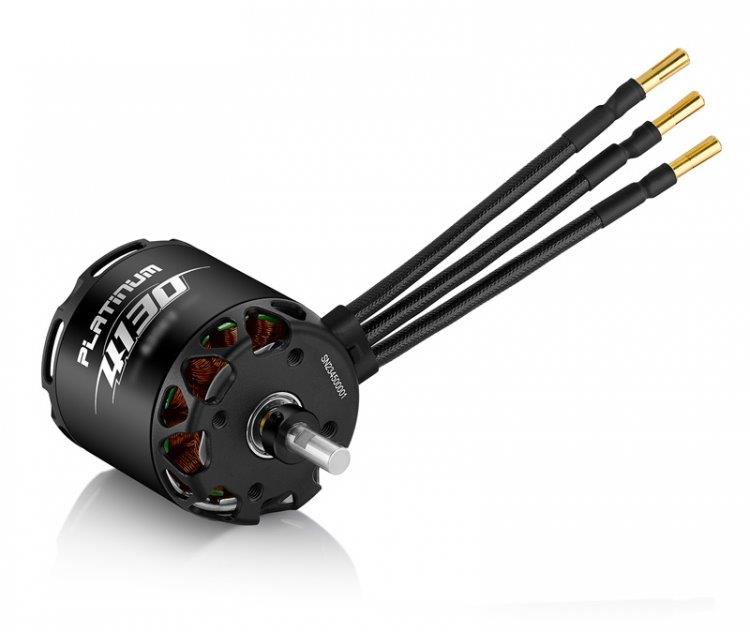

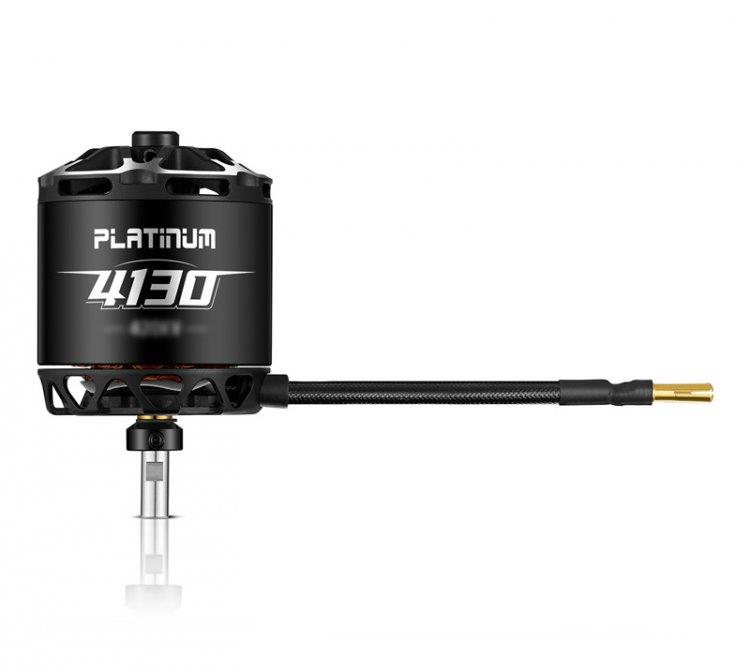

Hobbywing HW30416102 - Platinum 4130SL 490kv 6S Brushless Outrunner Motor
Double dynamic balance to control motor vibration
The rotor and the complete machine undergo dynamic balancing. The rotor dynamic balancing is completed first, then the operating conditions are simulated. A secondary dynamic balance test is performed on the motor to ensure smooth operation and eliminate any imbalance in the assembly.
High efficiency and strong performance
The efficiency is increased by more than 2.5% compared with competing motors of the same specifications.
Efficient heat dissipation keeps the motor cooler
The rotor adopts a self cooling structure to further improve the motor's heat dissipation performance. The continuous running time of the motor is extended by more than 30% compared with competing motors of the same specification. The running time under heavy load is longer

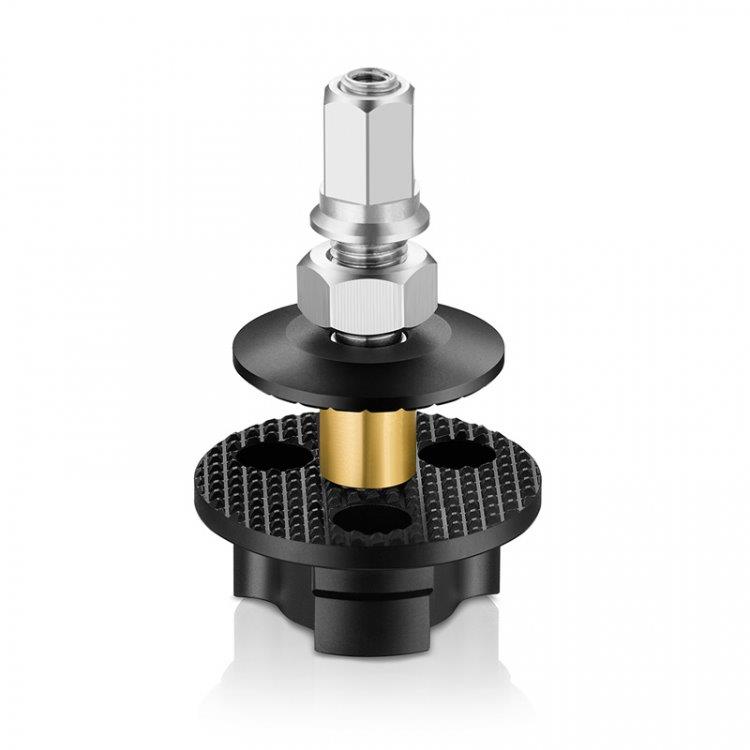

The locking design of the propeller mount has been patented
The innovative designed propeller mount locking system can effectively prevent the propeller from flying off due to the loose propeller mounting nut, ensuring safe flight.
Diamond-shaped anti-slip design of the propeller mounting seat
The propeller mount seat adopts a diamond-shaped anti-slip design, which effectively prevents the propeller from slipping and free spinning, making it safer and more reliable.
Outstanding product design and industry-leading material selection

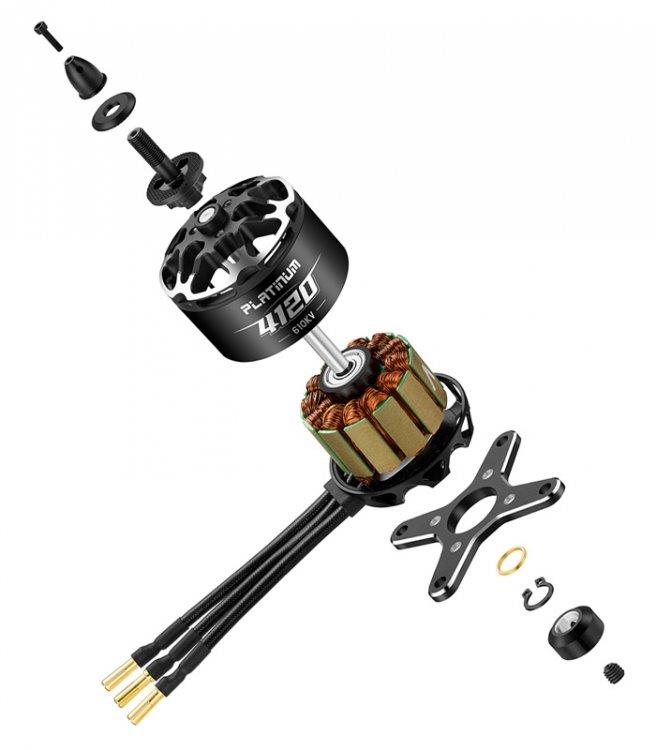

It adopts top-tier brand JNEH1200 iron core, 200°C high-temperature resistant wire, and international top-tier brand bearings to meet the needs of users in different scenarios. N52SH strong magnetic arc-shaped magnet design provides powerful torque for the motor. The motor's three-phase wire outlet is equipped with a custom-made silicone rubber sheath, taking into account both aesthetic appearance and insulation. The rotor has multiple locking designs, copper pad, circlip and bushing set screw to prevent the motor rotor from loosening and further improve the reliability of the motor. Multi-purpose design, the optional rear shaft propeller mount can also be installed on the rear end of the motor to meet the multi-purpose needs of different machines. Standard titanium alloy nuts and bracket mounting screws help to reduce the overall weight. The motor adopts a modular and easy to disassemble design, which facilitates easy cleaning and maintenance.
Specs:
Motor Size: Φ49.5x82.3mm
Stator Size: Φ40.6x30mm
Stator process: High standard silicon steel sheet, 180°C high temperature resistance coating
Enamelled wire: 200°C
Propeller mounting dimensions: Φ15mm-3xM3
Motor mounting dimensions: Φ30mm-4xM4
Slots & Poles: 12N14P
Dynamic balance: ≤10mg
Bearings: 696ZZ
Motor axle diameter: Φ6mm
Isolation test: 500V AC high voltage resistance test
Revs per volt: 420KV
Battery: LiPo-6S
No-load current: 2.4A/22.2V
Maximum current (Non-hermetic Ambient Temperature ≤ 25°C): 129.3A/55s
Max power: 2867W/55s
Max thrust: 9.12kg
Resistance: 10.6mΩ
Wire length: 90mm
Weight (with wire): 418g
Recommended ESC: PLATINUM 120A V4 & PLATINUM 150A V5
Recommended Propeller Size 6S：15X8E，16X6E，16X8E，17X8E
Included:
Outrunner Motor
Propeller adapter
Motor Mount Plate
Applikation: Flyg/Heli
Motortyp: Borstlös
kV-värde: 490 kV
Motor diameter: 49,5 mm
Motor längd: 82,3 mm
Motoraxel diameter: 6 mm
Vikt: 418 gram
Effekt Peak: 2867 W
Max spänning: 22,2 V
Inkluderar även: Motorfäste , Propelleradapter
