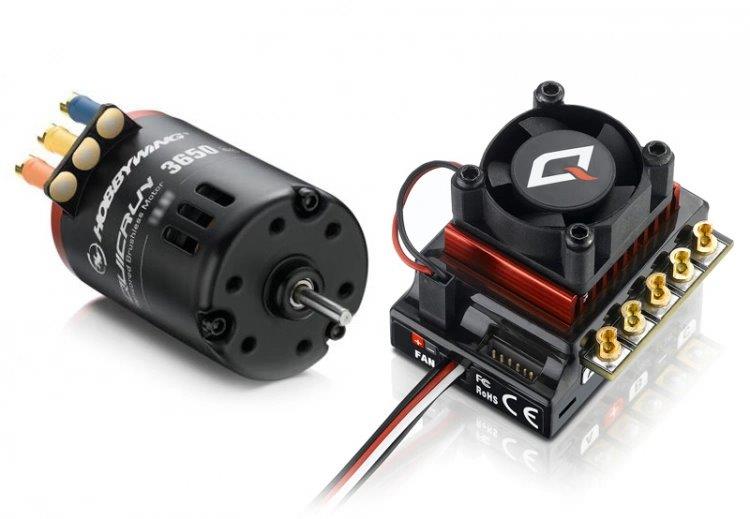

Hobbywing QuicRun Combo 10BL120 G2 Sensor - 3650SD 13.5T 2850kV G2 1/10
1 187,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: HW38020382
Hobbywing HW38020382 - QuicRun 10BL120 Sensored G2 ESC + QuicRun 3650SD-13.5T/2850KV G2 2-3S Motor Combo
Best value for money, Easy to use
The new 10BL120 G2, takes the outstanding quality and durability of proven HOBBYWING platforms and makes it even easier to use and setup. The perfect choice for 10th scale setups.
BEC upgrade, stronger driver
The BEC's continuous output current has been upgraded from 3A to 4A. The maximum current is at 7A, and the output voltage is now 6V/7.4V adjustable. Hobbyist will be able to use high-voltage and powerful servos available on the market with greater control.
Boost/Turbo timing technology
The 10BL120 G2 features adjustable electronic timing. Turbo and Boost can be used to fine tune power delivery and get the most out of your setup. Up to 32 degrees of electronic timing is available.
Note: Boost and Turbo timing cannot be used with a 3S battery to prevent damage.
Comprehensive Protection
Combining software and hardware to provide comprehensive protection The ESC is built using top of the line hardware, and proven software to provide a robust and reliable platform.
Low-voltage protection
Over-heating protection
Throttle-loss protection
Overload protection
Supports Motor Rotation CW/CCW
The motor rotation is adjustable CW (clockwise) and CCW (counterclockwise), adapting to different chassis.
ESC Specs:
Sensored, brushless, 1/10 ESC
Cont./Peak Current: 120A/760A
Input Voltage: 2-3S Lipo
BEC Output: Switch Mode 6V/7.4V @4A
Input Wires: 12AWG-200mm
Output Wires: 12AWG-200mm
Input Connectors: No
Output Connectors: No
Fan size: 25x25x10mm
Fan input: 5-8.4V
Input Connectors: Powered by BEC
Firmware Upgrade: Not Supported
Size: 43x36.8x32.3mm
Weight: 101.5g
Motors: Sensorless or Sensored Brushless Motors
Vehicles: 1/10 Touring Cars, Buggies, Drift Cars
KV Rating/T Count: 2S Lipo ≥4.5T / 3S Lipo ≥10.5T 3650 Size Motor
ESC Programing via:
SET Button on ESC: Supported
LED Program Box: Supported
LCD Pro Program Box: Supported
OTA Programmer: Not Supported
Program Port: Separate Programming Port
Motor Specs:
Sensored, brushless 1/10 motor
Pole count: 2
KV Rating: 2850
LiPo cells: 2-3
No-load: 2.4A
Diameter: 36mm
Length: 52.8mm
Shaft Diameter: 3.17mm
Weight: 186g
Front Bearing: OD9.525xiD3.175xT4mm
Rear Bearing: OD9.525xiD3.175xT4mm
Timing: Fixed
Applications: 1/10, 1/12 On-road (Race or drift Touring cars, F1, M-vehicles and etc.) & Off-road (Buggies, 2WD SCTs & Trucks)
Ursprungsland: CN
Applikation: Bil
Motortyp: Borstlös
Rating: 13,5 T
kV-värde: 2850 kV
Motor diameter: 36 mm
Motor längd: 52,8 mm
Motoraxel diameter: 3,17 mm
Vikt: 186 gram
Max spänning: 11,1 V
Special: Sensorbaserad
