Hobbywing Skywalker 2826SL Motor D35.1x46mm 6S 540kV 50A/1140W/60s
590 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: HW30415250

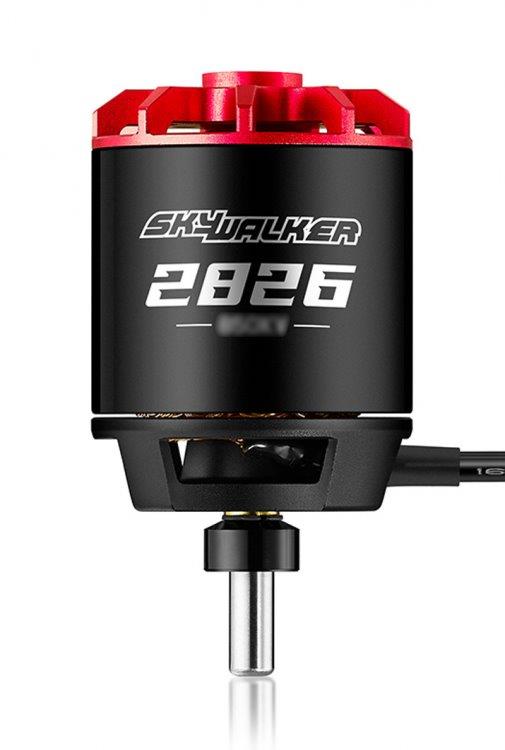

Hobbywing HW30415250 - SkyWalker 2826SL 540Kv Outrunner
High power & High performance
The newly designed 2814, 2820, and 2826 fixed-wing motors have increased output power. Suitable for 800-2300g 3D fixed wings, gliders, sport fixed wings, etc. Suitable for many airplane applications!
Excellent heat dissipation design

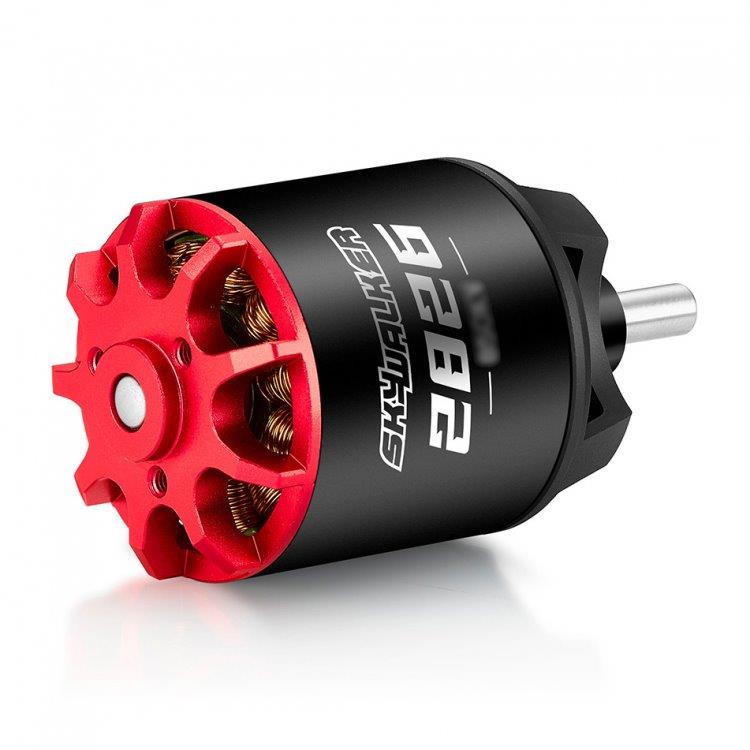

The large hollow design, combined with the self-dissipating structure of the top cover, enhances the cooling capacity and prolongs the lifespan of the motor.
Higher dynamic balance requirements
Adopts an excellent production and assembly dynamic balance technology with high-quality bearing and high-precision CNC machining, it provides an extremely low dynamic balance of the rotor to reduce motor vibration and provide smoother operation.
Anti-loosening rotor design
After installing the copper pad and retainer spring on the core of the rotor shaft, the bushing and set screw help secure the rotor and improving the reliability of the motor.
Excellent materials
Top branded JNEH1200 silicon steel sheet, 0.2mm thick material, provides lower iron loss.
N48 strong magnetic arc magnetic steel design provides maximum torque output for the motor.
180°C high temperature resistant enameled wire, enhances the high temperature resistance of the stator coil.

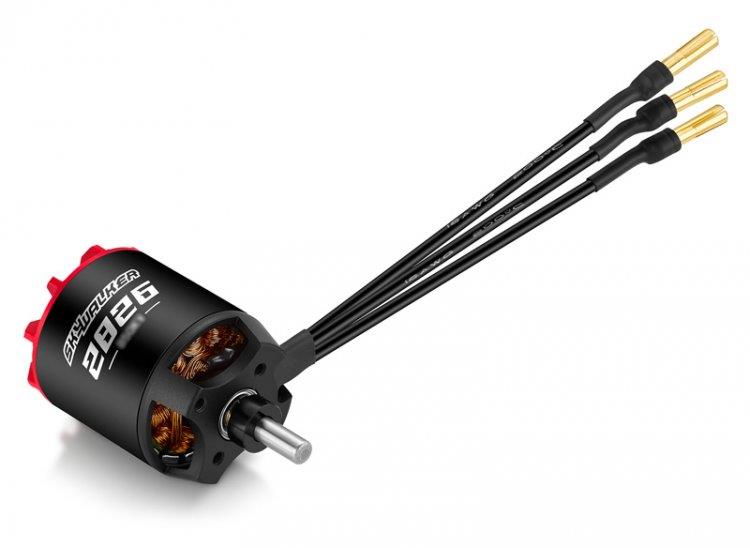

Silicone wire outlet, which is softer and easier to route than the traditional straight outlet silicone wire.

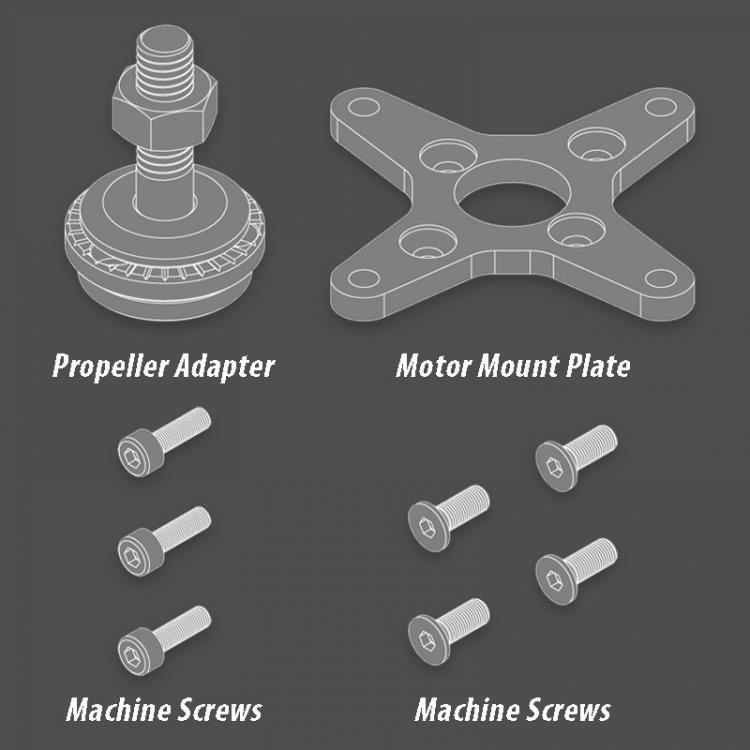

Included Accessories:

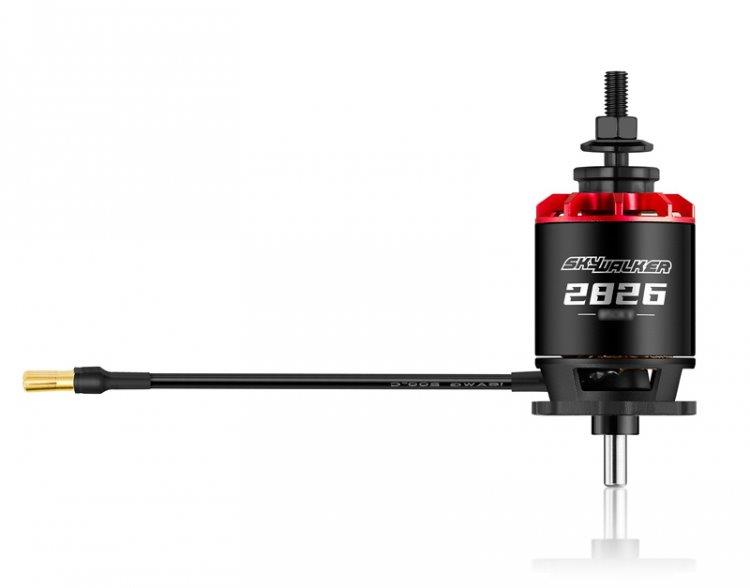

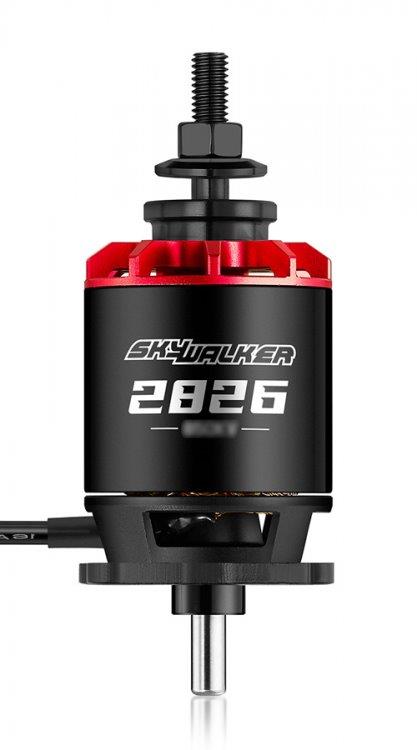

Propeller Adapter Assembly
Motor mounting plate
Screws
Specs:
Recommended Battery: 6S LiPo
KV Rating: 540KV
No-load Current: 1.58A/22.2V
Winding Resistance: 43.9mΩ
Number of slot poles: 12N14P
Maximum continuous current: 49.7A/1m
Maximum continuous power: 1106W/1m
Motor Size: D35.1xL48mm
Motor Weight: 175.5g
Shaft Diameter: 5mm
Bearing model: 685ZZ（OD11xiD5xT5mm)
Phase cable: 16AWG
Cable length: 110mm
Connectors: 4mm Bullet
Recommended ESC: Skywalker 80A
Recommended Propellers: 6S: 12x6E, 13x6.5E, 14X6
Clip mounting hole threads: D15mm-3xM2.5
Base threads: D19mm-2xM3 / D25mm-2xM3
Applikation: Flyg/Heli
Motortyp: Borstlös
kV-värde: 540 kV
Motor diameter: 35,1 mm
Motor längd: 48 mm
Motoraxel diameter: 5 mm
Vikt: 175,5 gram
Kontakt: 4mm Bullet
Max spänning: 22,2 V
Inkluderar även: Motorfäste , Propelleradapter
