Beskrivning
Art.nr: HW30603003

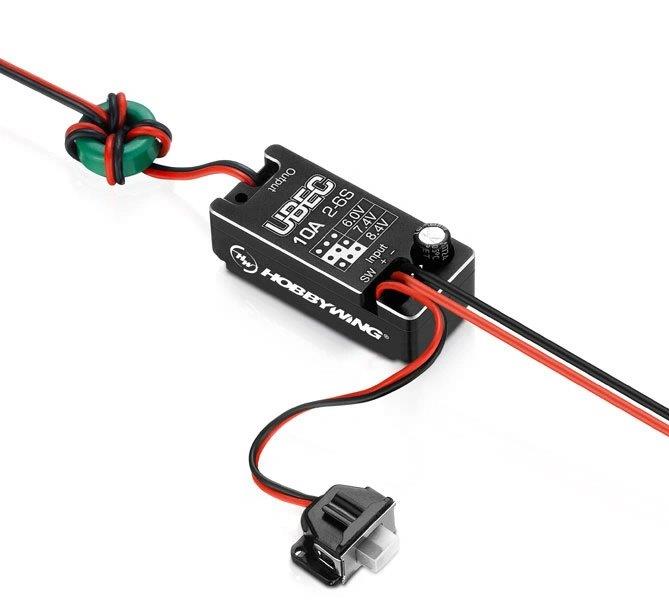

Hobbywing UBEC 10A Car 2-6S V2
The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. The all-metal housing is designed to help dissipate heat and reduce electromagnetic interference. UBEC output voltage is adjustable in three stages (6.0/7.4/8.4 V) with a continuous current of 10A and a maximum of 15A. The voltage specifications allow the use for a wide range of servos and electrical equipment such as lights, winches, wipers and etc. At the same time, the UBEC is equipped with overcurrent protection, output short-circuit protection, overheat protection, and IP67 waterproof dust design, and can be widely used on crawlers, trucks, and other electric models as well.
Features:
High efficiency DC-DC regulator chip for transfer efficiency of over 90%
All metal shell design helps to heat dissipation and reduce electromagnetic interference
Adjustable UBEC output voltage (6.0V/7.4V/8.4V) applicable for servos with different voltages
The continuous current of UBEC is up to 10A and 15A at max., which can be used for various electrical equipment (such as car light, winch, wiper, etc)
Excellent water-proof and dust-proof design as well as the IP67 protection grade can easily deal with different complicated environments
Multiple protections: over-current protection, output short-circuit protection, overheating protection, safe and reliable
External switch allows to turn on/off the UBEC easily
LED indicator for indicating the work status of the UBEC
Specifications:
Model: UBEC 10A-Car
Input voltage: 2-6s lithium batteries
Output voltage: 6.0 / 7.4 / 8.4 V (3 options adjustable)
Output current: Continuous 10A，Instantaneous 15A
Measurement: 45x20x16.2mm
Weight: 34g（including wires)
Partistorlek: 10
Ursprungsland: CN
The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. The all-metal housing is designed to help dissipate heat and reduce electromagnetic interference. UBEC output voltage is adjustable in three stages (6.0/7.4/8.4 V) with a continuous current of 10A and a maximum of 15A. The voltage specifications allow the use for a wide range of servos and electrical equipment such as lights, winches, wipers and etc. At the same time, the UBEC is equipped with overcurrent protection, output short-circuit protection, overheat protection, and IP67 waterproof dust design, and can be widely used on crawlers, trucks, and other electric models as well.
Features:
High efficiency DC-DC regulator chip for transfer efficiency of over 90%
All metal shell design helps to heat dissipation and reduce electromagnetic interference
Adjustable UBEC output voltage (6.0V/7.4V/8.4V) applicable for servos with different voltages
The continuous current of UBEC is up to 10A and 15A at max., which can be used for various electrical equipment (such as car light, winch, wiper, etc)
Excellent water-proof and dust-proof design as well as the IP67 protection grade can easily deal with different complicated environments
Multiple protections: over-current protection, output short-circuit protection, overheating protection, safe and reliable
External switch allows to turn on/off the UBEC easily
LED indicator for indicating the work status of the UBEC
Specifications:
Model: UBEC 10A-Car
Input voltage: 2-6s lithium batteries
Output voltage: 6.0 / 7.4 / 8.4 V (3 options adjustable)
Output current: Continuous 10A，Instantaneous 15A
Measurement: 45x20x16.2mm
Weight: 34g（including wires)
Partistorlek: 10
Ursprungsland: CN
