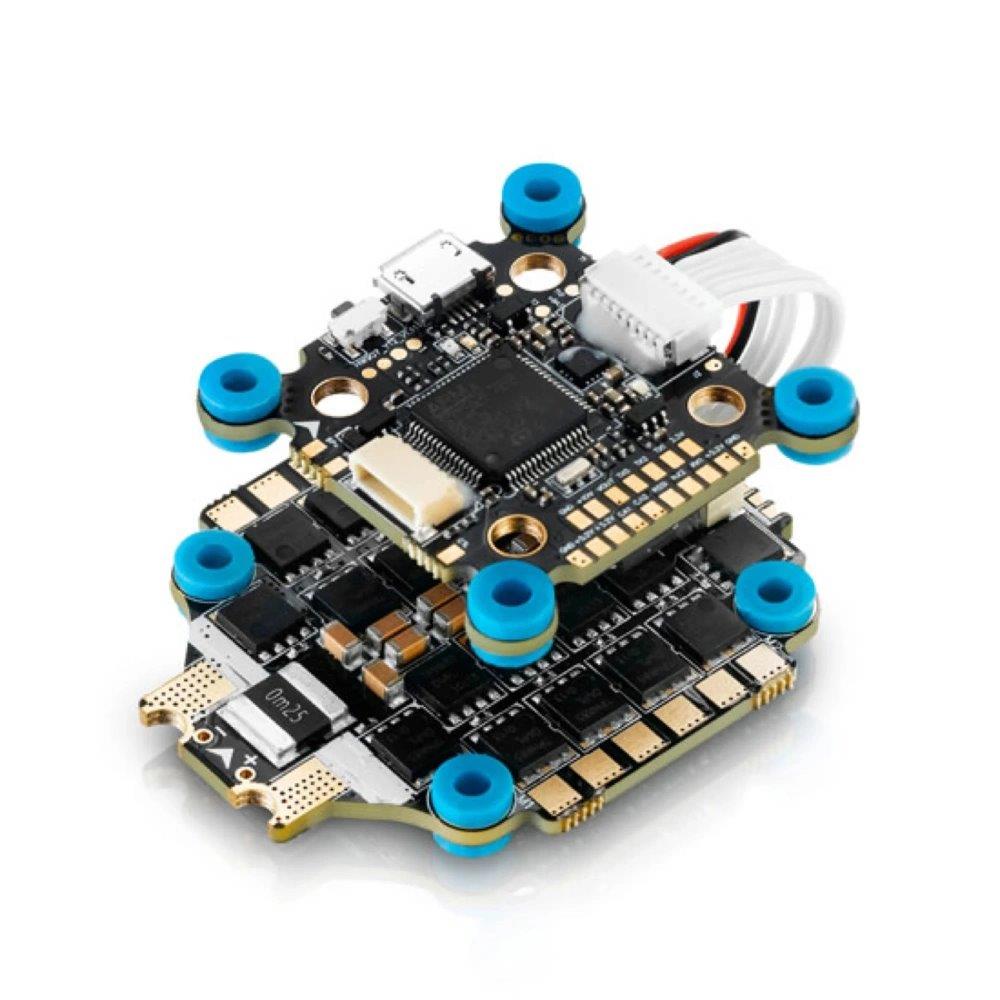

Hobbywing Xrotor FPV Micro Power System 65A ESC (4in1) F7 FC Combo

Hobbywing 38040306 - Xrotor FPV Micro Power System 65A ESC (4in1) F7 FC Combo

Features
• 4-in-1 ESC, 65A continuous per channel (4 channels total)
• Burst current up to 80A per channel
• Input voltage: 3S–6S LiPo
• BLHeli_32 firmware, supports DShot (up to DShot1200)
• Integrated voltage and current sensing
• Dual BEC outputs: 5V & 12V for powering peripherals (receiver, VTX, LEDs, etc.)
• F7 Flight Controller with STM32F722 MCU
• Built-in OSD and blackbox logging
• Supports multiple protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot, Proshot
• DJI digital FPV system plug-and-play support
• Beacon / buzzer output for locating the drone
• Standard mounting: 30.5 × 30.5 mm holes (ESC), flexible mounting options for FC (30.5×30.5 / 20×20 mm)
________________________________________

Specifications
• Input Voltage: 3S – 6S LiPo
• Continuous Current: 65A × 4
• Burst Current: 80A × 4
• ESC Size (L×W×H): 52 × 42 × 6.6 mm
• ESC Mounting Pattern: 30.5 × 30.5 mm
• ESC Weight: ~15 g
• Flight Controller Size: 32 × 32 mm
• Flight Controller Weight: ~3.3 g
• Firmware: BLHeli_32 (ESC) / Betaflight compatible (FC)
• Processor (FC): STM32 F722
• BEC Outputs: 5V & 12V (dual)
