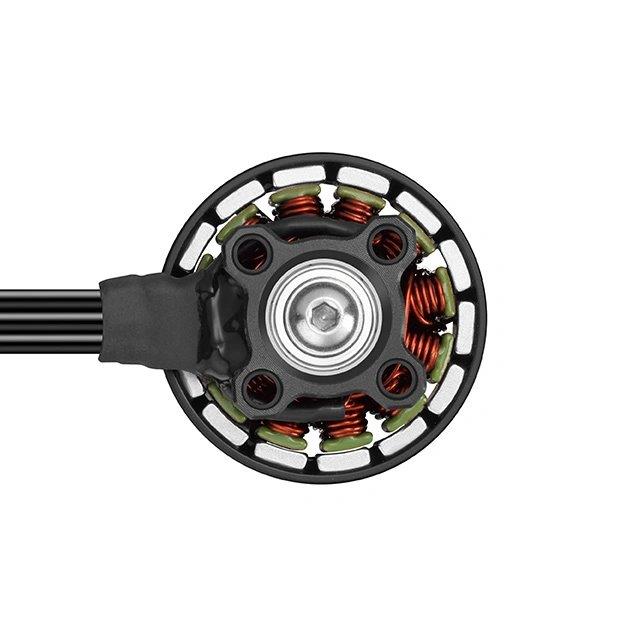

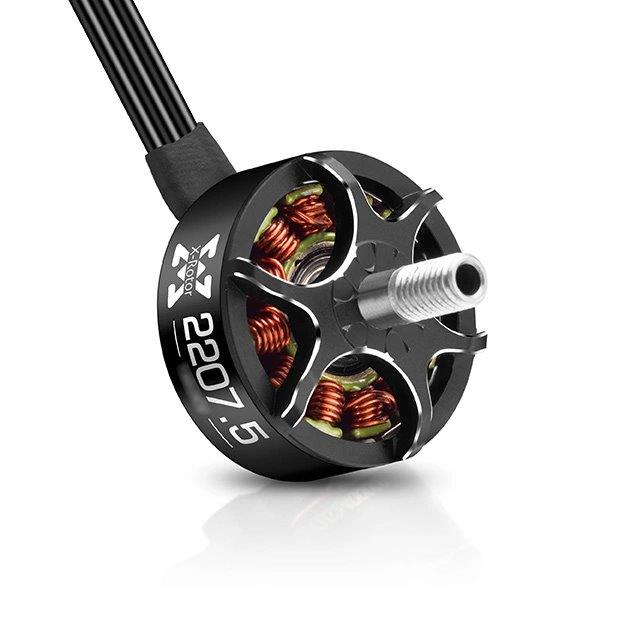

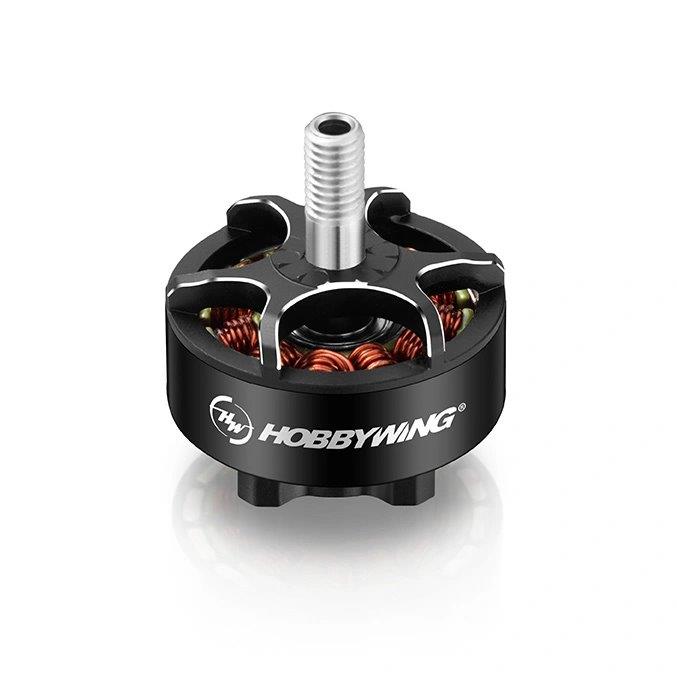

Hobbywing Xrotor FPV Motor 2207.5 1780kV 6S

Hobbywing 30418009 - Xrotor FPXMotor 2207.5 1780kV 6S

Features
• High-efficiency FPV racing motor with optimized electromagnetic design for strong torque and fast response.
• Stator built with 0.2 mm laminations, high-temperature (220 °C) enameled wire, and high-quality magnets for durability.
• Self-cooling design with anti-slip propeller mounting surface to prevent prop slip.
• Precision bearings (MR105ZZ) for smooth and reliable operation.
• Lightweight construction (38 g including wires) for agile flight.
• Standard 16 mm mounting pattern for easy installation.
• Designed for use with 6S LiPo batteries and optimized for HQ 4.9×3.7×3 or HQ 5.1×4×3 props.

Specifications
• KV Rating: 1780 KV
• Recommended Voltage: 6S LiPo
• Stator Size: Ø 22.5 × 7.6 mm
• Motor Dimensions: Ø 28 × 19.9 mm
• Shaft Diameter: 5 mm (M5 thread)
• Slot / Pole: 12N14P
• Bearings: MR105ZZ
• Mounting: 4 × M3 @ Ø 16 mm
• Weight (with wires): 38 g
• Cable: 20 AWG, length 150 mm
• Resistance (phase-to-phase): 76 mΩ
• No-Load Current (24 V): 2.7 A
• Max Continuous Current (3 s, ≤25 °C): 41 A
• Max Power (3 s, ≤25 °C): 988 W
• Max Thrust: 1827 g (with HQ 51477 prop)

Ursprungsland: CN
Elmotor Applikation: Multirotor
Typ av motor: Borstlös
kV-värde: 1780 kV
Motor Vikt: 38 gram
