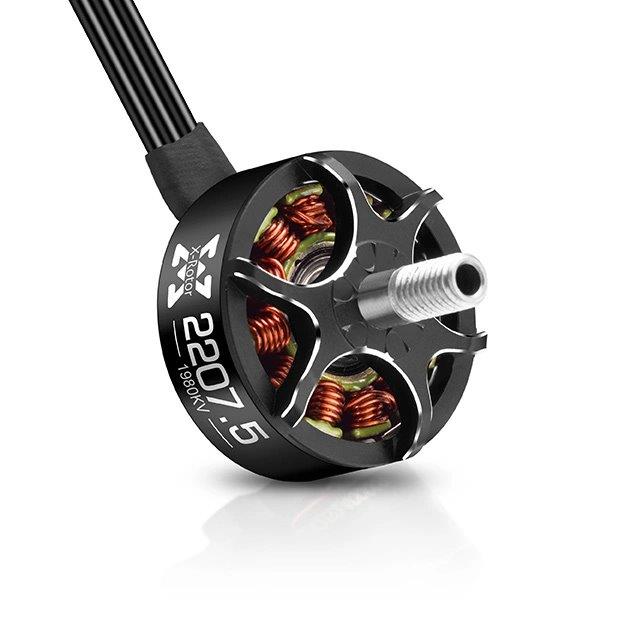

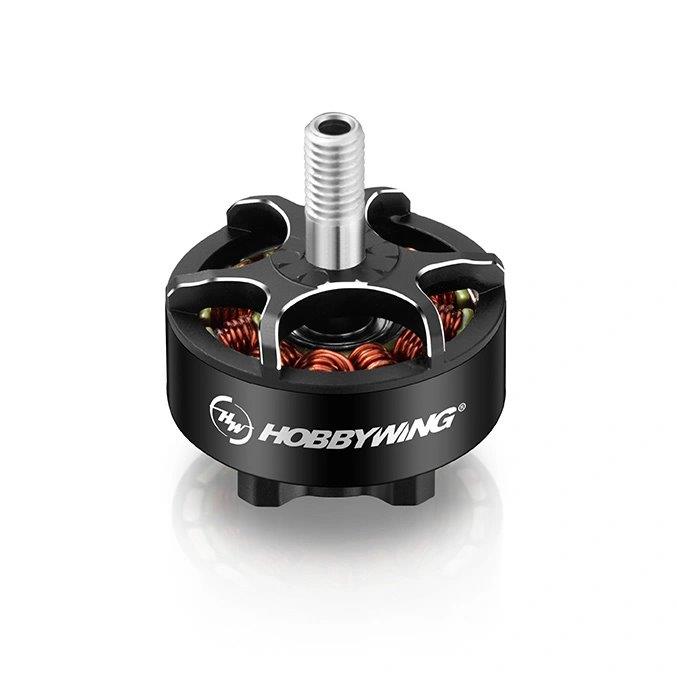

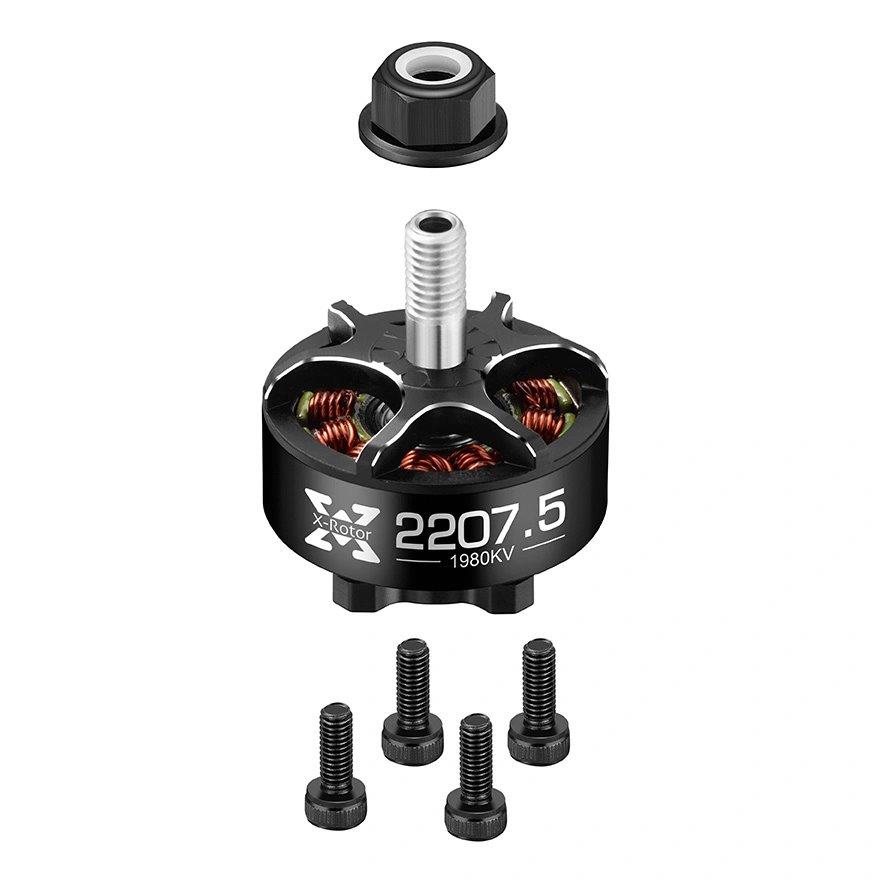

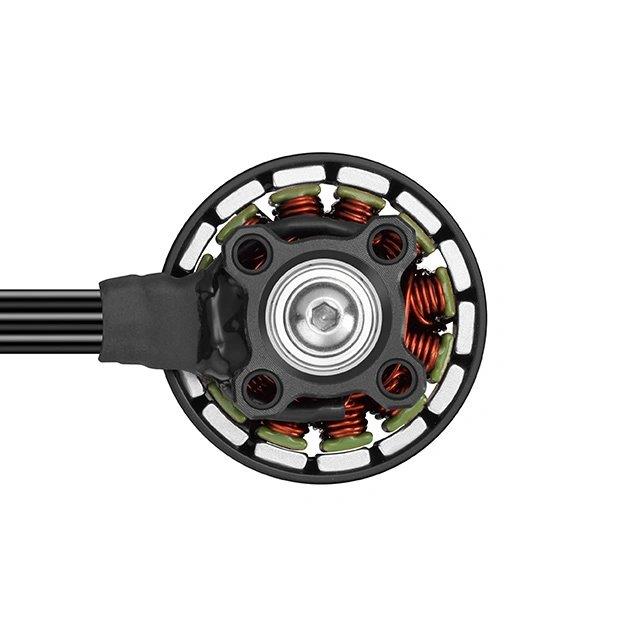

Hobbywing Xrotor FPV Motor 2207.5 1980kV 6S
143,75 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: HW30418010
Hobbywing 30418010 - Xrotor FPV Motor 2207.5 1980kV 6S
Features
High-efficiency FPV motor with optimized electromagnetic design
Stator constructed with high-quality silicon steel sheets and high-temperature (220 °C) enameled wire
Precision MR105ZZ bearings for smooth operation
Standard mounting pattern 4 × M3 at Ø 16 mm
Suitable for props like HQ 4.9×3.7×3, GF51466, HQ5037
20 AWG wire leads, 150 mm length
Lightweight design (38 g including wires)
Specifications
Model: XRotor 2207.5SL 1980KV
Motor Size: Ø 28 × H 19.9 mm
Slot / Pole: 12N14P
Stator Size: Ø 22.5 × 7.6 mm
Shaft Diameter: 5 mm + M5 thread
Bearing: MR105ZZ
Recommended Voltage: LiPo 6S
No-Load Current: 3.2 A
Max Current (3 s, ambient ≤ 25 °C): 49 A
Max Power (3 s): 1166 W
Max Thrust: 1868 g
Phase Resistance (interphase): 65 mΩ
Wire Spec: 20 AWG
Wire Length: 150 mm
Weight (with wires): 38 g
Ursprungsland: CN
Elmotor Applikation: Multirotor
Typ av motor: Borstlös
kV-värde: 1980 kV
