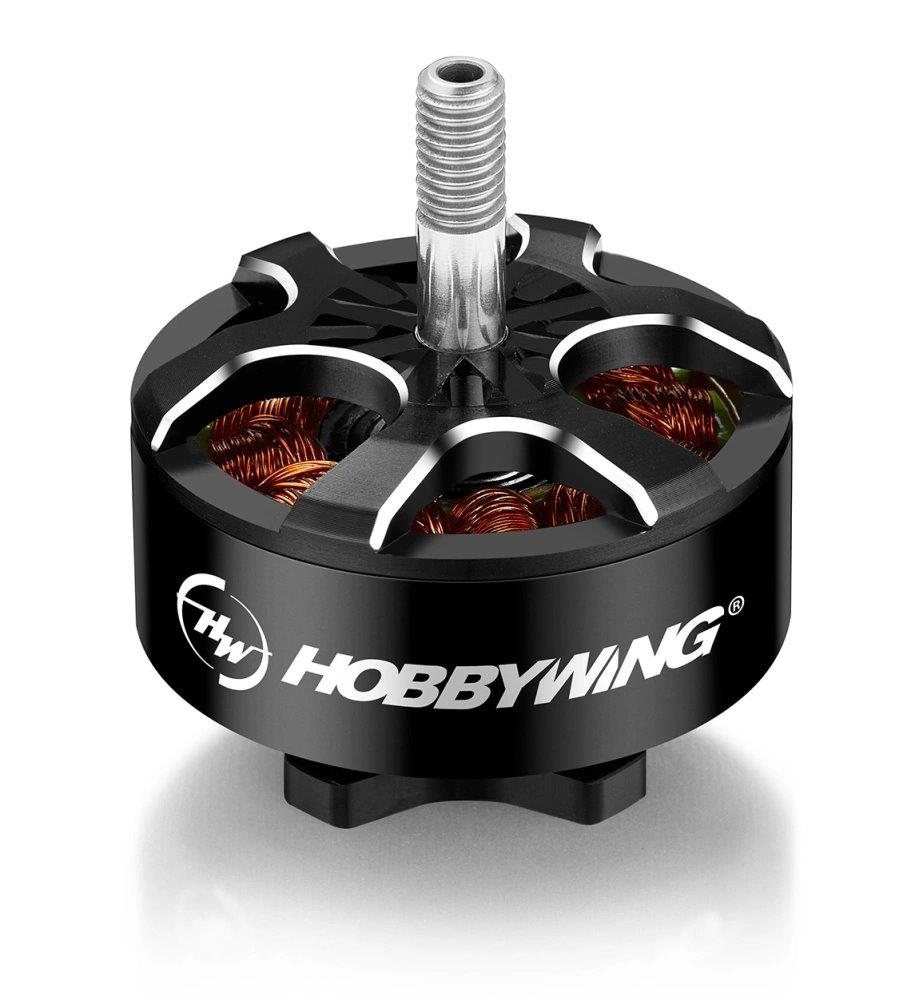

Hobbywing Xrotor FPV Motor 3110 1150kV 6S

Hobbywing 30418006 - Xrotor FPV Motor 3110 1150kV 6S

New Tooth Groove Anti-slip Design
To achieve a safer and more reliable flight, the propeller mount has a new grooved design preventing the propeller from slipping.

Excellent Product Design, Industry-leading Materials:
• High-performance 0.2mm silicon steel sheets
• 200°C high-temperature resistant enameled wire
• Meet the needs of users pursuing extreme motor performance
• The multi-strand enameled wire winding design increases the slot full rate by approximately more than 5%
• The temperature is lower when compared with other competing brands on the market

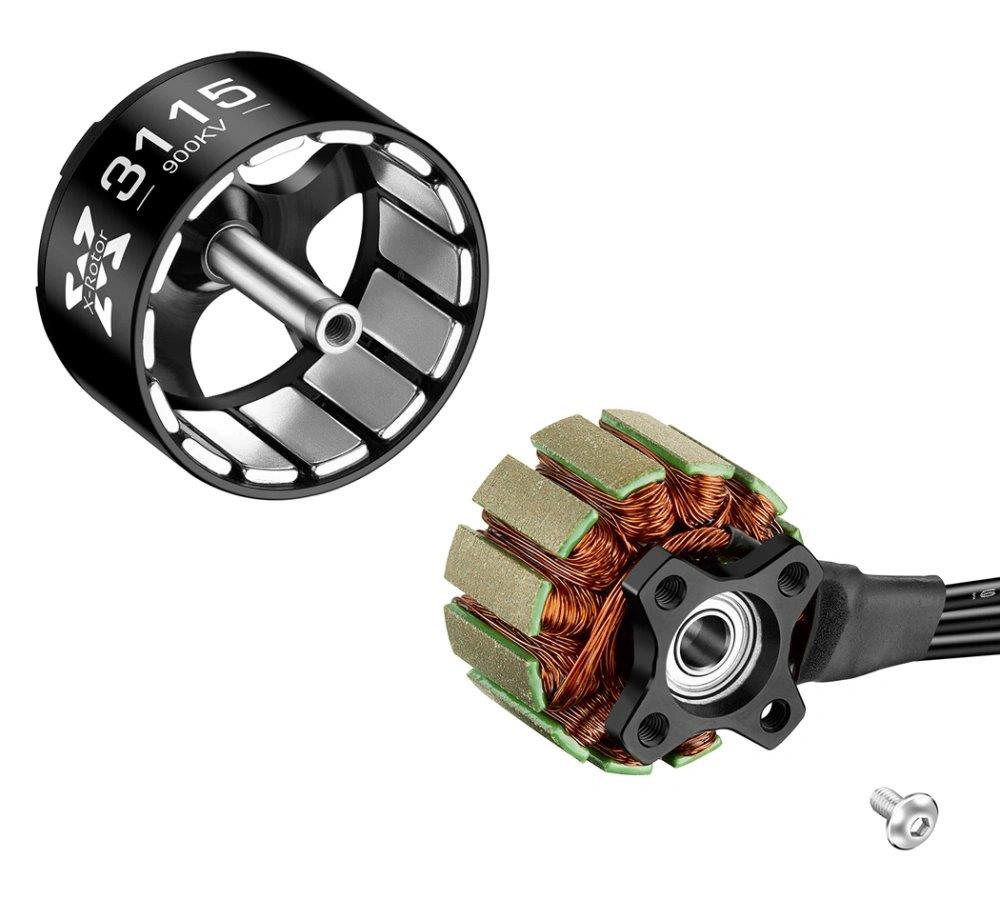

• Uses N52 strong magnetic tiles with an arc- shaped design to provide a stronger torque to the motor

Specs:

• KV Rating: 1150KV
• LiPo Cells: 4-6S
• No-Load Current: 2.8A/24V
• Maximum Continuous Current: 69A/6s
• Maximum Continuous Rating: 1656W/6s
• Maximum Thrust: 4126g
• Motor Weight: 88g
• Motor Size: Φ37.2x27mm
• Slot/Pole: 12N14P
• Wire Size: 18AWG
• Wire Length: 250mm
• Enamelled Wire Insulation Class: 200℃ High temperature Resistant, H Class insulation
• Internal Resistance: 45mΩ
• Shaft Diameter: D5+M5
• Shaft Length: 16mm
• Screw Diameter/Thread: Φ19mm-4x M3
• Recommended ESC: XRotor FPV G2 65A 4in1 ESC
• Propeller: 6S:HQ8x4x3, HQ9x4x3

Ursprungsland: CN
Applikation: Multirotor
Motortyp: Borstlös
kV-värde: 1150 kV
Motor diameter: 37,2 mm
Motor längd: 27 mm
Motoraxel längd: 16 mm
Vikt: 88 gram
Strömtålighet Kont.: 69 A
Effekt Kont: 1656 W
