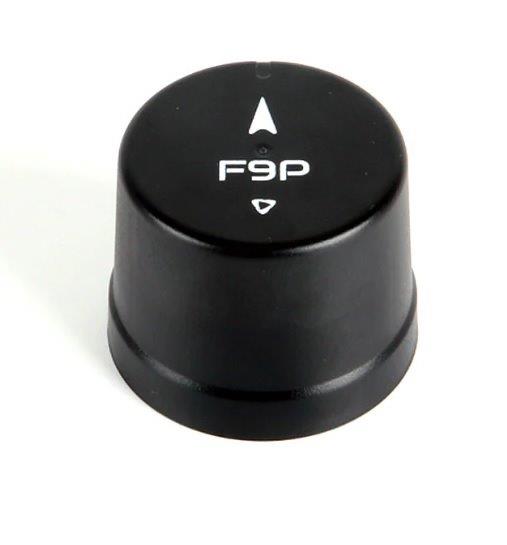

Holybro H-RTK F9P Ultralight
4 795 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 12053
Feature
U-blox ZED-F9P GNSS module
Ultralight weight at 21.4 gram
Integrated helical antenna
IST8310 compass
H-RTK F9P Ultralight is an ultra-lightweight RTK GNSS module with U-blox ZED-F9P, an IST8310 compass, and an integrated helical antenna. It is designed specifically for weight-conscious applications where every gram counts.
The H-RTK F9P Ultralight can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations (GPS, GLONASS, Galileo, and BDS) can be received concurrently. All satellites in view can be processed to provide an RTK navigation solution when used with correction data.
It can be configured for concurrent GPS, GLONASS, Galileo, BDS, QZSS, and SBAS reception to provide a high-performance position reporting and navigation solution. It provides exceptional sensitivity and acquisition times, and interference suppression measures enable reliable positioning even in difficult signal conditions.
Specification:
GNSS module: u-blox ZED-F9P
Compass: IST8310
Weight: 21.4g
Application: Rover (Aircraft)
Receiver type:
■ GPS L1C/A L2C ■Galileo E1 E5b
GLONASS G2 G1 ■BDS B1l B2l
Sensitivity
Tracking / -163dBm
Reacquisition / -147dBm
Time-To-First-Fix¹
Cold Start / ≤35 s
Warm Start / 20s
Hot Start / 1 s
Position accuracy²
Autonomous / 2.0 m CEP
DGNSS / 0.5m CEP
RTK / 1cm+1ppm (Horizontal)3
Accuracy of time pulse signal: RMS / 30ns
Velocity accuracy:
GNSS / 0.1 m/s
D-GNSS / 0.05 m/s
Operational limits:
Dynamics / ≤ 4 g
Altitude / 18000 m
Velocity / 515 m/s
Baud Rate: 38400-230400 bps（Default 115200 bps）
Max navigation update rate: 10Hz
1. All satellites at ≥-130dBm
2. CEP, 50%, 24 hours static, ≥-130dBm, > 8SVs
3. Based on 30km, the accuracy error increases by 1cm every 10km from the base station
4. Assuming Airborne < 4 g platform
You can use PA2.0*4, or KA2.0*4. But the actual specification of the screw to be used depends on what it is to be installed on and how thick it is. The required torque is about 0.08-0.15N/M.
Package Included:
H-RTK F9P Ultralight *1
GH 10P cable 200mm *1
GH 6P cable 200mm *1
