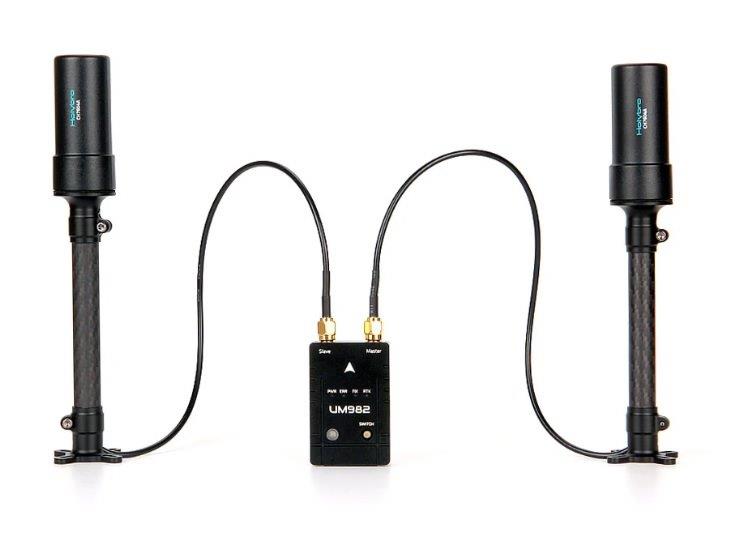

Holybro H-RTK Unicore UM982 (Dual Antenna Heading)
4 799 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 12036
Overview
The Holybro UM982 Dual Antenna RTK GPS provides high-precision positioning information and is capable of generating non-magnetometer moving baseline yaw determinations for autopilots with one single GPS module.
One of the best applications of this GPS is to provide compass-less YAW information to the autopilot (commonly called GPS Heading or Moving Baseline Yaw). Using this GPS as a yaw source prevents magnetic interference from the vehicle motors and electrical systems and any environmental interference sources, such as metallic structures or equipment, that can cause incorrect yaw reports to the autopilot.
This works even if the GPSs are not receiving RTCM data from a fixed RTK station or NTRIP server. The device is based on the Unicore UM982 NMEA GNSS module and supports RTK positioning adjustment for centimeter-level accuracy, GPS/GLONASS, Beidou, Galileo, and QZSS global positioning systems.
It also includes a magnetometer, LED, and safety switch button. It also serves as an RTK-corrected vehicle GPS, with or without moving baseline yaw determination, and as a base station GPS for sending RTCM data to a ground control station to provide an RTK source for the vehicle via telemetry.
Note: The Status LED driver has changed. This LED is supported in PX4 1.14, ArduPilot 4.4.0 & later.
Features
Dual antennas allow Moving Baseline Yaw (GPS Heading) with just one module
Can replace the traditional compass/magnetometer
Perfect for system/environment with high magnetic interference
Excellent RTK performance
Specification:
Product UM982
Application
Rover
Moving Baseline Rover
Base Station (Recommend using H-RTK F9P-Base as a base station)
Compass: IST8310
GNSS
BDS B1I/B2I/B3I
GPS L1C/A/L2P (Y)/L2C/L5
GLONASS L1/L2
Galileo E1/E5a/E5b
QZSS L1/L2/L5
RTK Accuracy (RMS)
Horizontal: 0.8cm + 1ppm
Vertical: 1.5cm + 1ppm
Velocity: 0.03 m/s
DGPS Accuracy (RMS)
Horizontal: 0.4 m
Vertical: 0.8 m
Heading: 0.1°/1 m baseline
Single Point Positioning Accuracy (RMS)
Horizontal: 1.5m
Vertical: 2.5m
Antennas Peak Gain (MAX): 2dBi
LNA Gain
(typical): 33±2dB
Time-TO-First Fix
Cold start: ≤ 30s
Hot start: ≤ 5s
RTK-SurveyIn-Time: ≤5 minute @2.0mCEP
Data and Update Rate
20 Hz Positioning & Heading
20 Hz Raw Data observation
Port
Port 1: GH1.25 10-pin
Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin)
Cable Length
GH 10P: 150mm
GH 10P: 400mm
GH 10P to 6P: 300mm
Antenna Connection Type
Board: SMA female
Antenna: SMA male
Baud rate: (Adjustable): 230400 5Hz default
Working voltage: 4.75V~5.25V
Current Consumption: ~350mA
Dimensions
Board: 34.8*58.9*14.4mm
Antenna Diameter: 27.5mm
Antenna height: 59mm
Weight: 37.9g (without antennas)
Package Included:
1x H-RTK UM982
2x High Precision Helical Antennas
2x Antenna Mounts
2x SMA Cables (40cm)
2x 10pin - 10pin JST-GH Cables
1x 10pin - 6pin JST-GH Cable
1x 6pin - 6pin JST-GH Cable
