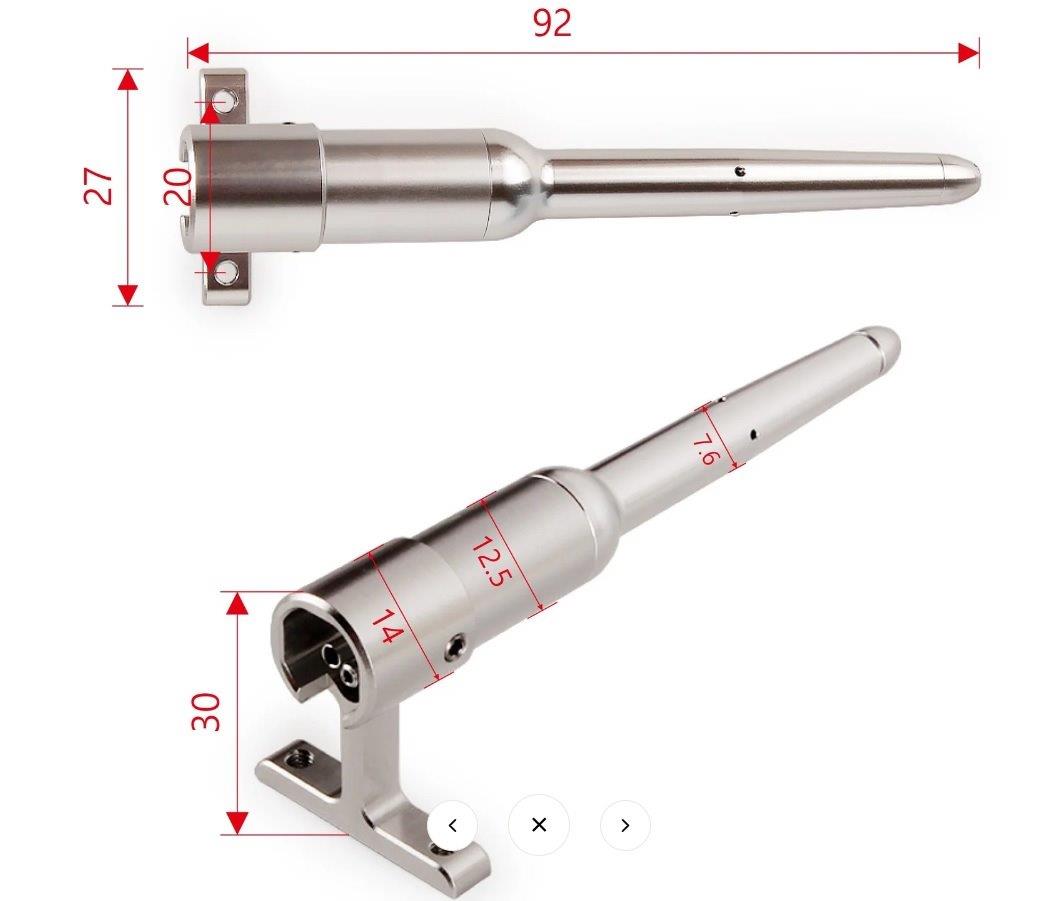

Holybro High Precision DroneCAN Airspeed Sensor- DLVR, PT60 Pitot Tube Only
510 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 31227
Overview
The Holybro DroneCAN Airspeed is an industrial-grade differential pressure measurement module designed for precision airspeed measurement in various UAVs, including planes, VTOLs, and other vehicles. Equipped with the DLVR-L10D Digital Pressure Sensor and running ArduPilot AP-Periph Firmware, this module ensures accurate and reliable airspeed data across different flight conditions.
Features
Wide Pressure Range: Supports up to 2500 Pa and 226.8 km/h (141 mph) airspeed measurement.
High-Precision DLVR-L10DSensor : Based on ALLSENSORS® DLVR with CoBeam technology, providing high precision and low temperature drift.
High Accuracy: Achieves better than 1% accuracy across a wide temperature range, ensuring reliable and accurate readings in demanding applications.
DroneCAN Protocol: Compatible with both PX4 and ArduPilot platforms.
Aluminum Shell: Durable and reliable construction
Specifications
MCU: STM32G473CE, 170 MHz, 128KB RAM, 512KB Flash
Sensor: DLVR-L10D
Pressure Range: 2500 Pa
Burst Pressure: 75 kPa
Airspeed Measurement: 0-226.8 km/h
Accuracy: <1.0% Error
Firmware: AP-Periph DroneCAN
Communication Protocol: DroneCAN
Compatible Flight Controllers: Any flight controller with a CAN interface running PX4 or Ardupilot firmware
Working Voltage: 4.75~5.25V
Current Consumption: ~100mA
Dimensions: 29 x 35.5 x 16.5 mm (module), 91.5 x 28 x 30 mm (Pitot tube)
Weight: 38.3g (Includes Pitot tube and tubing)
Operating Temperature: -20 to 85 Celsius
SKU19012 Package Includes:
1x DroneCAN Airspeed Sensor-DLVR
1x Rubber tubing 100cm
1x GH 4P Cable
SKU19013 Package Includes:
1x DroneCAN Airspeed Sensor-DLVR
1x PT40 Pitot Tube
1x Rubber tubing 100cm
1x GH 4P Cable
SKU19014 Package Includes:
1x DroneCAN Airspeed Sensor-DLVR
1x PT60 Pitot Tube
1x Rubber tubing 100cm
1x GH 4P Cable
The Holybro DroneCAN Airspeed is an industrial-grade differential pressure measurement module designed for precision airspeed measurement in various UAVs, including planes, VTOLs, and other vehicles. Equipped with the DLVR-L10D Digital Pressure Sensor and running ArduPilot AP-Periph Firmware, this module ensures accurate and reliable airspeed data across different flight conditions.
Features
Wide Pressure Range: Supports up to 2500 Pa and 226.8 km/h (141 mph) airspeed measurement.
High-Precision DLVR-L10DSensor : Based on ALLSENSORS® DLVR with CoBeam technology, providing high precision and low temperature drift.
High Accuracy: Achieves better than 1% accuracy across a wide temperature range, ensuring reliable and accurate readings in demanding applications.
DroneCAN Protocol: Compatible with both PX4 and ArduPilot platforms.
Aluminum Shell: Durable and reliable construction
Specifications
MCU: STM32G473CE, 170 MHz, 128KB RAM, 512KB Flash
Sensor: DLVR-L10D
Pressure Range: 2500 Pa
Burst Pressure: 75 kPa
Airspeed Measurement: 0-226.8 km/h
Accuracy: <1.0% Error
Firmware: AP-Periph DroneCAN
Communication Protocol: DroneCAN
Compatible Flight Controllers: Any flight controller with a CAN interface running PX4 or Ardupilot firmware
Working Voltage: 4.75~5.25V
Current Consumption: ~100mA
Dimensions: 29 x 35.5 x 16.5 mm (module), 91.5 x 28 x 30 mm (Pitot tube)
Weight: 38.3g (Includes Pitot tube and tubing)
Operating Temperature: -20 to 85 Celsius
SKU19012 Package Includes:
1x DroneCAN Airspeed Sensor-DLVR
1x Rubber tubing 100cm
1x GH 4P Cable
SKU19013 Package Includes:
1x DroneCAN Airspeed Sensor-DLVR
1x PT40 Pitot Tube
1x Rubber tubing 100cm
1x GH 4P Cable
SKU19014 Package Includes:
1x DroneCAN Airspeed Sensor-DLVR
1x PT60 Pitot Tube
1x Rubber tubing 100cm
1x GH 4P Cable
