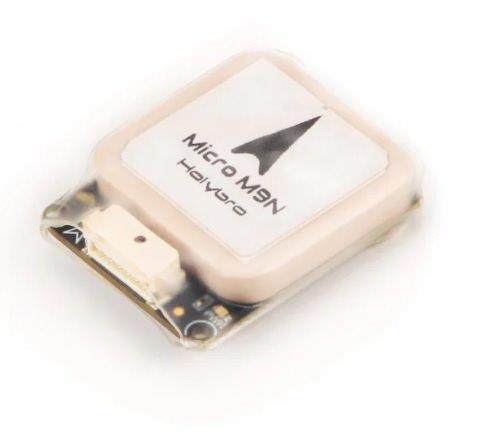

Holybro Micro M9N GPS (Without Case)
765 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 12045
Description:
These Micro GPS uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass.
The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
High-Speed Drone GPS Comparison:
This blog post put Holybro M10, M9N, F9P and Matek M10Q was put to an ultimate test to determine which GPS units could keep pace with a high-speed drone in acro mode while ensuring precision during RTL and autonomous missions.
Features
Newest Ublox 10th Gen GNSS
Fast & Accurate Positioning
IST8310 Compass
Small Form Factor
Specifications:
Holybro Micro M10 GPS / Holybro Micro M9N GPS
GNSS Receiver: Ublox M10 / Ublox M9N
Number of Concurrent GNSS:
Up to 4 GNSS / Up to 4 GNSS
- BeiDou / - BeiDou
- Galileo / - Galileo
- GLONASS / - GLONASS
- GPS / - GPS
- QZSS / - QZSS
Frequency Band:
- GPS L1 / - GPS L1
- Galileo E1 / - Galileo E1
- GLONASS L1 / - GLONASS L1
- BeiDou B1 / - BeiDou B1
- SBAS L1 / - SBAS L1
- QZSS L1 / - QZSS L1
Compass: IST8310 / IST8310
Output Protocol:
- UBX (U-blox) / - UBX (U-blox)
- NMEA / - NMEA
Accuracy: 2.0m CEP / 1.5m CEP
Nav. Update Rate:
Up to 25 Hz (single GNSS), / Up to 25 Hz (4 concerrent GNSS)
Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation System:
EGNOS, GAGAN, MSAS and WAAS / EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S / QZSS: L1S
Default Baud Rate: 115200 / 115200
Input Voltage : 4.7-5.2V / 4.7-5.2V
Port Type: JST-GH-6P / JST-GH-6P
Antenna: 25 x 25 x 4 mm ceramic patch antenna / 25 x 25 x 4 mm ceramic patch antenna
Power consumption: Less than 200mA @ 5V / Less than 200mA @ 5V
Operating Temperature: -40~80C / -40~80C
Dimension:
- 32 x 26 x 9mm (w/o Case) / - 32 x 26 x 9mm (w/o Case)
- 34 x 28 x 11mm (With Case) / - 34 x 28 x 11mm (With Case)
Weight:
- 14g (w/o Case) / - 14g (w/o Case)
- 16g (With Case) / - 16g (With Case)
Other:
- LNA MAX2659ELT+ RF Amplifier / - LNA MAX2659ELT+ RF Amplifier
- Rechargeable Farah capacitance / - Rechargeable Farah capacitance
- Low noise 3.3V regulator / - Low noise 3.3V regulator
Package Includes:
1x Micro GPS module *1
1x JST GH 6 Position Connector 15 cm
1x JST-GH 6pin Colored Silicon Cable 15 cm
