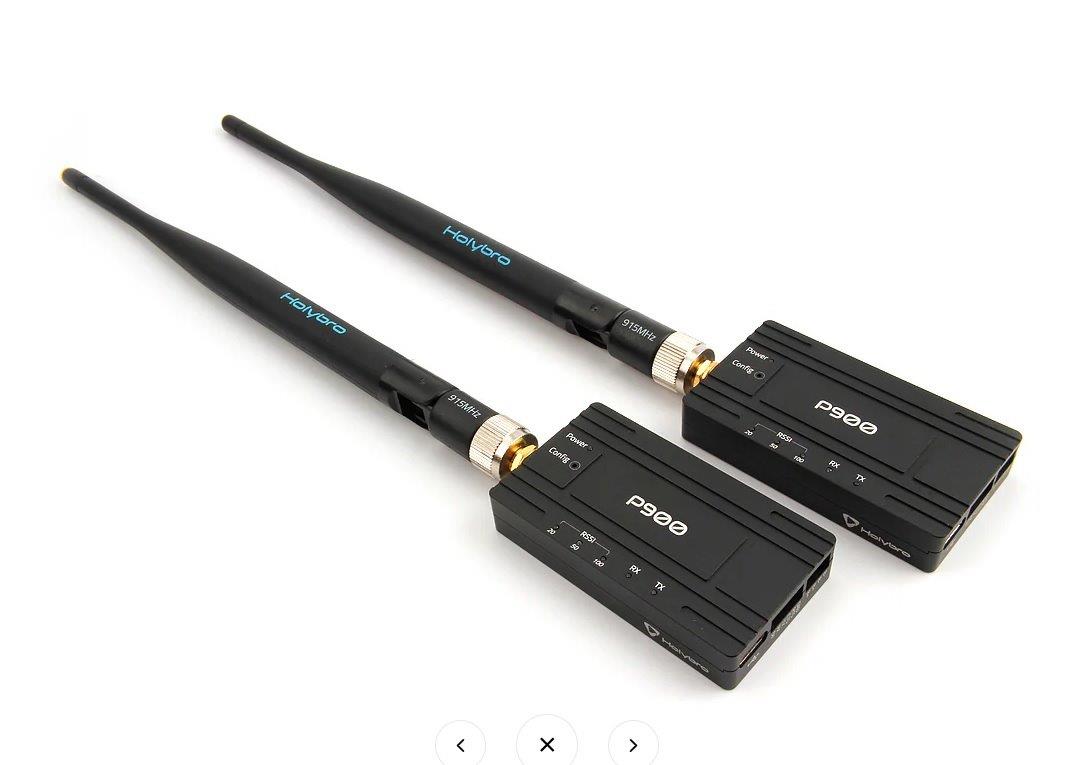

Holybro Microhard Telemetry Radio, P900, One Pair (Two Radios)
8 809 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 17020
Holybro Microhard Telemetry Radio integrates microhard Pico Series RF module which is capable of delivering high-performance wireless serial communications in robust topologies, such as Point to Point, Point to Multipoint and secure Mesh (Mesh only available on P900).
It uses frequency hopping spread spectrum (FHSS) technology, providing reliable wireless asynchronous data transfer between most equipment types which employ a serial interface. Fixed frequency is available on the P840 version. The radio is configured using AT commands through the Data port or using PicoConfig application through the Diagnostic Port.
P900 Radio operate within the 902-928 MHz ISM frequency band while the P840 operate within 840-845Mhz, and P400 operate within 410-480MHz. You can select your radio based on your country's available frequency band.
FCC ID: NS913P900
Feature
USB Type-C port, integrated USB to UART converter
6-position JST-GH connector, can be directly connected to the TELEM port on various flight controller
High voltage BEC onboard, Support DC7~35V voltage supply
UART transmission LED indicator
Three-stage RSSI LED indicator
Transmission within a public, license-exempt band of the radio spectrum
Transparent, low latency link rates up to 276 kbps (P900) and 345 kbps (P860 & P400)
Supports a robust true Mesh operation with auto-routing (P900 Only)
32 bits of CRC, selectable retransmission and forward error correction
Separate diagnostics port, transparent remote diagnostics and online network control
Specification
P900 / P840 / P400-C1S
Frequency Range: 902 to 928 MHz / 840 to 845 MHz / 410 to 480 MHz
Transmit Power
(software adjustable):
100mW to 1W (20-30dBm) /
100mW to 1W (20-30dBm) /
100mW to 1W (20-30dBm)
Link Rate: Up to 276 kbps / Up to 345 kbps / Up to 345 kbps
Serial Baud Rate: Up to 230.4 kbps asynchronous / 300 bps to 230 kbps
Range: Up to 40 miles (60 km) / Up to 60 miles (100 km) / Up to 60 miles (100 km) @ 19.2 kbps
Spreading Method:
Frequency Hopping Spread Spectrum (FHSS) /
Frequency Hopping/Fixed Frequency,
GMSK, 2GFSK, 4GFSK, QPSK /
Frequency Hopping,
GMSK, 2GFSK, 4GFSK, QPSK
Operating Modes:
Mesh, Point-to-Point, Point-to-Multipoint, Store and Forward,
Auto Routing, Self Healing, Packet Routing Modes /
Point-to-Point, Point-to-Multipoint,
Store & Forward Repeater, Peer-to-Peer
Input Voltage:
DC7~35V
(4-position JST-GH)
Power Consumption
Sleep < 1mA / Sleep < 1mA / Sleep < 1mA
Idle 3.5mA / Idle 20mA / Idle 20mA
Rx: 45mA to 98mA / 45mA to 98mA / 45mA to 98mA
Tx: 1000mA to 1400mA / Tx Peak: 2A / Tx Peak: 2A
Error Detection: 32 bits of CRC, ARQ
Weight: 44g (without antenna) 71g (with antenna) / 44g (without antenna) 71g (with antenna) / 44g (without antenna) 67g (with antenna)
SKU17024/17019/17026 Includes:
1x Microhard P840/P900/P400 Radio
1x Antenna
1x XT30 Power cable
1x GH 6P to 6P cable
1x Metal Pin
SKU17025/17020/17027 Includes:
2x Microhard P840/P900/P400 Radio
2x Antenna
2x XT30 Power cable
1x GH 6P to 6P cable
1x Metal Pin
