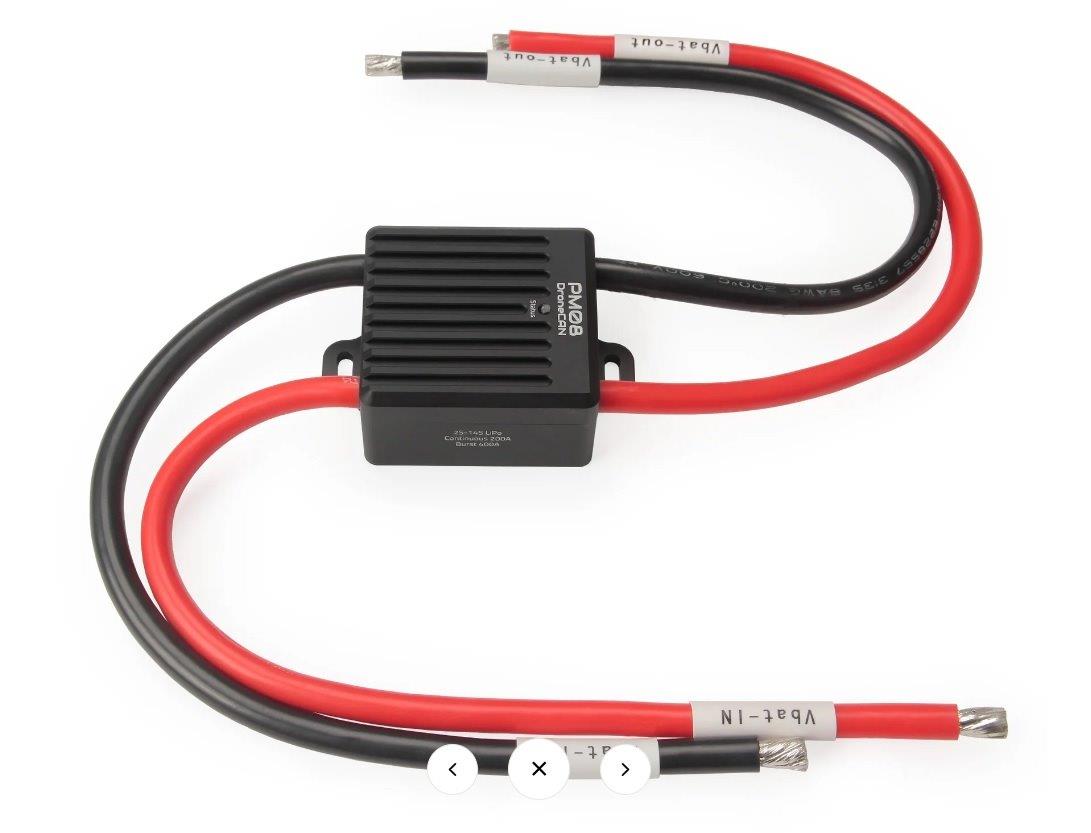

Holybro PM08-CAN Power Module 14S, 200A, Tinned Wires
1 629 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 15029
Feature
Supports 2-14S & 200A Cont, 400A Burst
DroneCAN Communication Protocol
Small & Compact Design
Two 5V Output with Independent BEC IC and Circuitry
Separated Sensor and BEC Board to Minimize Electrical Noise Interference
Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
High Accuracy Temperature Sensor for Temperature Monitor
High-Efficiency Aluminum Heat Dissipation Shell
Specifications
Processor：STM32F405RG 168MHz 1024KB Flash 196KB RAM
Voltage input: 7~60.9V (2S~14S)
Continuous current:200A
Burst current
o 400A @ 25℃ 1 sec
o 1000A @ 25℃ < 1 sec
Max current sensing: 376A
Voltage accuracy: ±0.1V
Current accuracy: ±5%
Temperature accuracy:±1℃
Power port output: 5.3V/3A each port
Protocol: DroneCAN
Operating temperature :-25℃~105℃
Firmware upgrade: Support
Calibration: Support
Interface Type
Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
Battery IN/OUT Options:
o XT90 Connectors
o Tinned Wires
o XT90 & Ring Terminals
Status LED
Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash
Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
Flashing slowly (one-second intervals): CAN is successfully connected
Mechanical Spec
Size: 45mm×41mm×26mm (Not Include Cable)
Weight: 185g (Include Cable)
