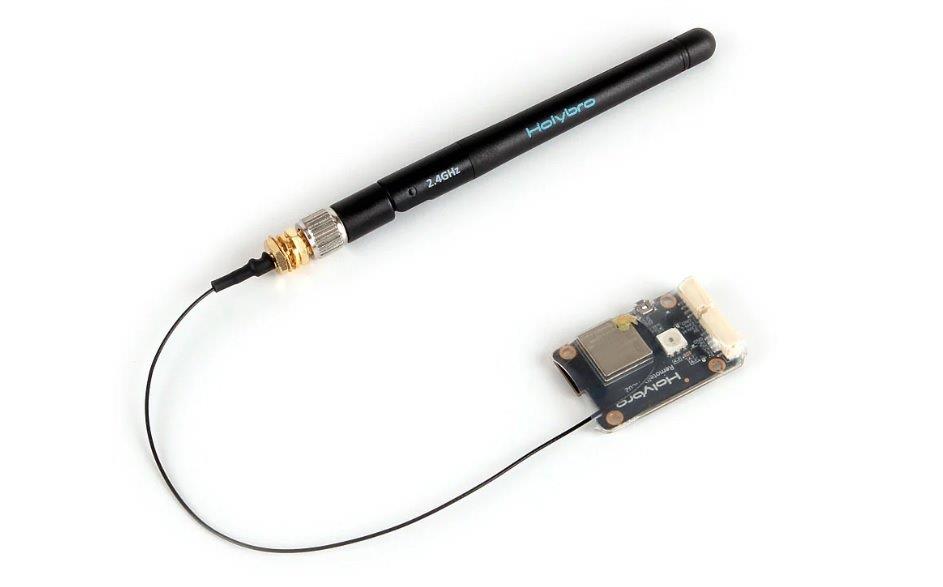

Holybro Remote ID (Without Case)
359 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 18089A
Warning
This product is designed for the Standard Remote ID Solution, primarily targeting drone manufacturers and system integrators, NOT for DIY users, as you need to do your own approval process at the FAA (DoC submission) if you are in the USA. This product does not include serial number. For the most accurate and latest information related to this topic, please refer to the official governance website of your country.
Overview
Holybro RemoteID Module is a low-cost, small-size, and light-weight module that broadcasts information about UAVs in flight through WiFi and Bluetooth. It supports both CAN and serial protocols. It is a FCC and CE-approved radio module.
The products run open-source firmware (ArduRemoteID) and provides a so-called standard Remote ID solution, primarily target drone manufacturers & system integrators.
Specification
Radio module:
o Espressif ESP-C3 module
o Bluetooth and WiFi 2.4GHz (ERP): + 20 dBm (100 mW)
o FCC & CE certified radio module
Firmware:
o ArduRemoteID (https://github.com/ArduPilot/ArduRemoteID).
o Supports upgrading firmware via the web interface (OTA)
Supported in PX4 & Ardupilot
Protocol: CAN & Serial
Interface:
o 1x JST GH 4-pin CAN (CAN) port
o 1x JST GH 6-pin TELEM (UART) port
Antenna Connector type:
o On CNC Case: SMA connector
o On PCB: IPEX Connector
Range: > 5km detection range*
Power: 5V supplied from TELEM or CAN port
LED lights: Bright RGB status LED
Size:
o Without case: 35.3 x 23.5 mm (not including antenna)
o With CNC case: 38 x 26.5 x 11.5 mm (not including antenna)
Mount: M2 screws
Operating temperature: -40°C to +85°C
Weight:
o PCB only: 4 g
o With CNC case & Antenna: 27.5g
o Without case & Antenna: 16.5g (Cable 20cm)
Certification: FCC& CE
* The detection range depends on many factors such as the receiver antenna gain, transmission protocol, weather conditions, flying height, receiver height line of sight etc. With professional receivers a range of 5 km and more is possible.
Package Includes：
1x Remote ID
1x Antenna
1x JST GH 6pin 150mm Cable
1x JST GH 4pin 150mm Cable
This product is designed for the Standard Remote ID Solution, primarily targeting drone manufacturers and system integrators, NOT for DIY users, as you need to do your own approval process at the FAA (DoC submission) if you are in the USA. This product does not include serial number. For the most accurate and latest information related to this topic, please refer to the official governance website of your country.
Overview
Holybro RemoteID Module is a low-cost, small-size, and light-weight module that broadcasts information about UAVs in flight through WiFi and Bluetooth. It supports both CAN and serial protocols. It is a FCC and CE-approved radio module.
The products run open-source firmware (ArduRemoteID) and provides a so-called standard Remote ID solution, primarily target drone manufacturers & system integrators.
Specification
Radio module:
o Espressif ESP-C3 module
o Bluetooth and WiFi 2.4GHz (ERP): + 20 dBm (100 mW)
o FCC & CE certified radio module
Firmware:
o ArduRemoteID (https://github.com/ArduPilot/ArduRemoteID).
o Supports upgrading firmware via the web interface (OTA)
Supported in PX4 & Ardupilot
Protocol: CAN & Serial
Interface:
o 1x JST GH 4-pin CAN (CAN) port
o 1x JST GH 6-pin TELEM (UART) port
Antenna Connector type:
o On CNC Case: SMA connector
o On PCB: IPEX Connector
Range: > 5km detection range*
Power: 5V supplied from TELEM or CAN port
LED lights: Bright RGB status LED
Size:
o Without case: 35.3 x 23.5 mm (not including antenna)
o With CNC case: 38 x 26.5 x 11.5 mm (not including antenna)
Mount: M2 screws
Operating temperature: -40°C to +85°C
Weight:
o PCB only: 4 g
o With CNC case & Antenna: 27.5g
o Without case & Antenna: 16.5g (Cable 20cm)
Certification: FCC& CE
* The detection range depends on many factors such as the receiver antenna gain, transmission protocol, weather conditions, flying height, receiver height line of sight etc. With professional receivers a range of 5 km and more is possible.
Package Includes：
1x Remote ID
1x Antenna
1x JST GH 6pin 150mm Cable
1x JST GH 4pin 150mm Cable
