HolybroDroneCAN RM3100 Professional Grade Compass, 42cm
719 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 15026
Overview

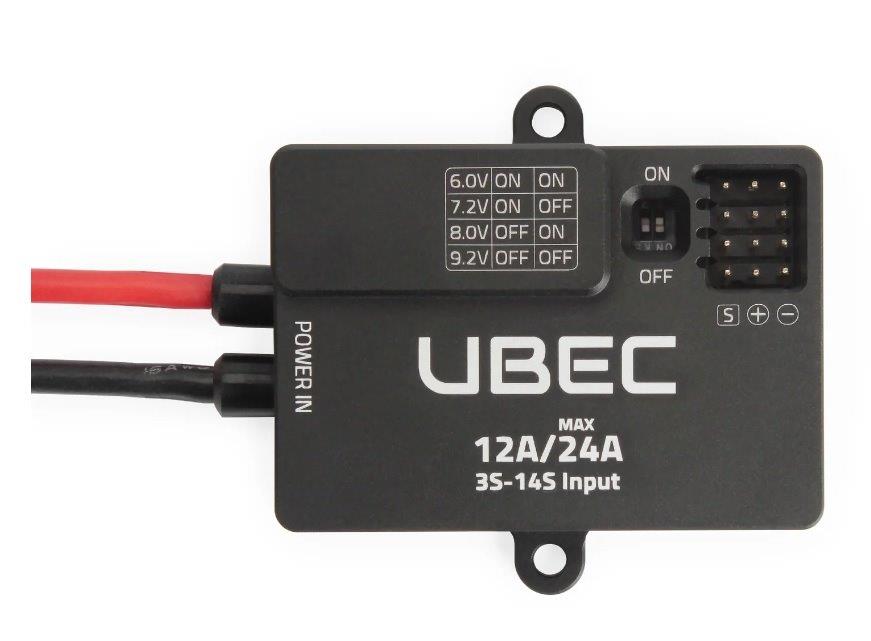

UBEC 12A (3-14S) is a synchronous step-down regulator from a high voltage or widely varying input supply. It draws the DC voltage from a 3-14S LiPo battery and drops the voltage to a level suitable for receivers and other electronic devices and keeps providing the stable current output of up to 12Amp. The output voltage can be adjusted by the onboard DIP switches.
Features
High efficiency DC-DC regulator chip for transfer efficiency of over 90%
Adjustable output voltage (6.0V/7.2V/8.0V/9.2V) applicable for devices with different voltages
4-channel parallel header pin outputs for servos
XT30 output for high current devices
Multiple protections including over-current, (output end) short circuit, overheat, and low-voltage cutoff
Metal housing for quick heat dissipation and less electromagnetic interference.
Specifications
Input voltage: 3~14S (XT30)
Output voltage: 6.0V/7.2V/8.0V/9.2V (Adjustable by using onboard DIP Switches)
Output Current
o Continuous: 12A
o Burst: 24A
Size: 48x33.6x16.3 mm
Weight: 47.8g
Package Includes:
1x UBEC Power Module
1x XT30 18AWG Cable
1x DuPont 3P Cable
UBEC 12A (3-14S) is a synchronous step-down regulator from a high voltage or widely varying input supply. It draws the DC voltage from a 3-14S LiPo battery and drops the voltage to a level suitable for receivers and other electronic devices and keeps providing the stable current output of up to 12Amp. The output voltage can be adjusted by the onboard DIP switches.
Features
High efficiency DC-DC regulator chip for transfer efficiency of over 90%
Adjustable output voltage (6.0V/7.2V/8.0V/9.2V) applicable for devices with different voltages
4-channel parallel header pin outputs for servos
XT30 output for high current devices
Multiple protections including over-current, (output end) short circuit, overheat, and low-voltage cutoff
Metal housing for quick heat dissipation and less electromagnetic interference.
Specifications
Input voltage: 3~14S (XT30)
Output voltage: 6.0V/7.2V/8.0V/9.2V (Adjustable by using onboard DIP Switches)
Output Current
o Continuous: 12A
o Burst: 24A
Size: 48x33.6x16.3 mm
Weight: 47.8g
Package Includes:
1x UBEC Power Module
1x XT30 18AWG Cable
1x DuPont 3P Cable
