Beskrivning
Art.nr: ISDT1023
Palm-size channel DC fast charger with balancers for 116 cells NiMH, 16 cells Li-Po/Li-Fe/LiHV, 224V Pb with current 0.510A (max. 240W). Power supply 530V DC. Internal resistance measurement, USB-C port for update, Bluetooth for setting in the ISD Link app. You can also use it as a USB-C/PD2.0-3.1 charger with model battery pack.

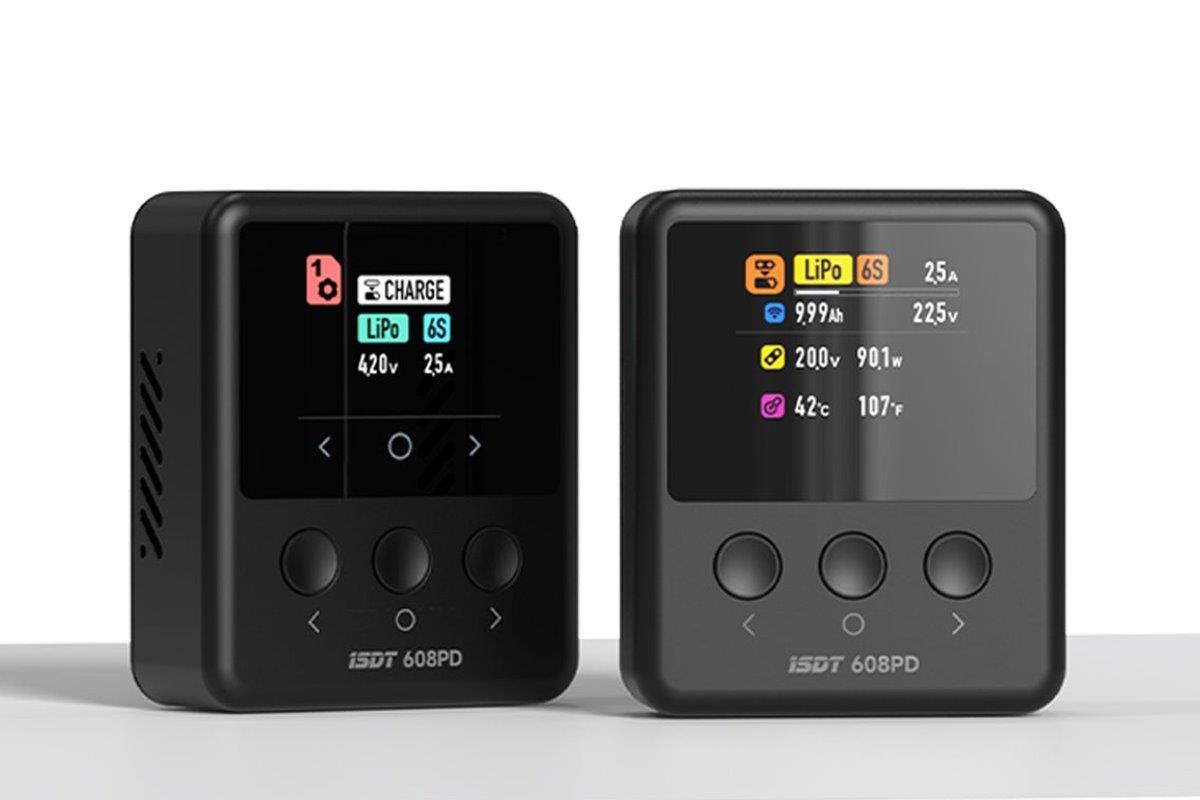

The ISDT 608PD 240 W miniature charger is a powerful smart charger powered by a car battery, stabilised power supply or USB-C power supply with very simple and intuitive operation. The 608PD can charge common cell types (NiMH, Li-Po, LiHV/ULiHV, LiFe, Pb), plus it features built-in six-channel balancers to ensure safe charging of lithium batteries. The charger is equipped with a colour LCD and three programming buttons, which offer you more comfortable and straightforward parameter setting, control and monitoring of the charging process.
In addition to the "palm-size" design with high performance and intuitive operation, worth a special mention is:
Program for new high-voltage lithium batteries LiHV with an output voltage for charging of up to 4.35 V and ULiHV with an output voltage for charging of up to 4.45 V (voltage adjustable from 4.254.50 V)
Adjustable end voltage for charging lithium batteries (allows more gentle charging that pilots like, or brutal over-charging suitable for car guys)
Adjustable end voltage for lead-acid battery charging (2.002.45 V; allows charging of all types of lead-acid batteries)

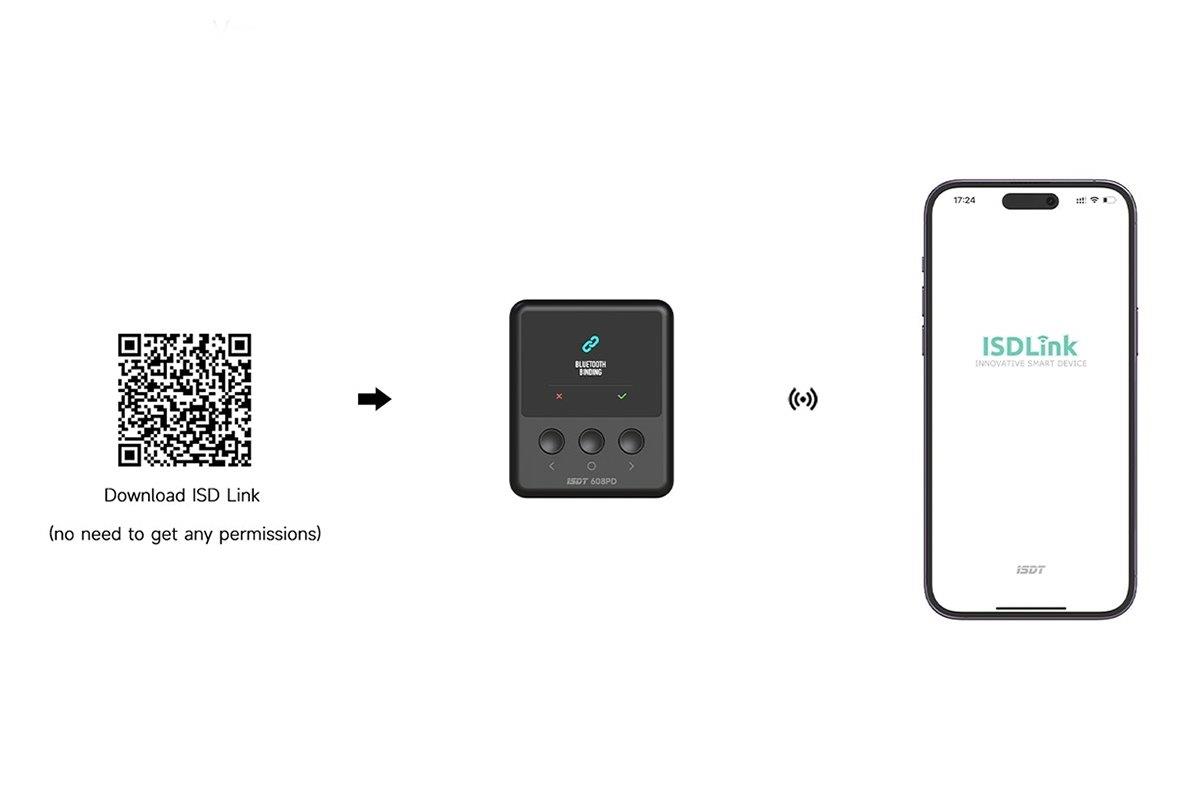

Bluetooth in the ISD Link mobile app (Android and iOS): ability to set up, start and charge tracking

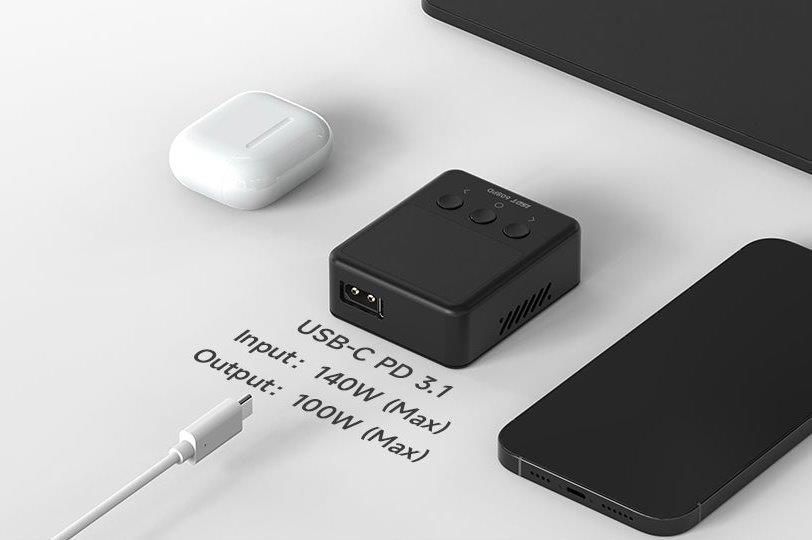

Can be used as a USB-C/PD2.0/3.0/3.1 charger for smartphones, tablets and similar devices
Basic features and parameters overview:
Power supply 1030 V DC (XT60 port) or USB-C (528 V)
For charging 116 NiMH cells, 16 Li-Po/Li-Fe/LiHV cells or 224 V lead-acid batteries
Adjustable charging current 0.510.0 A (max. 240 W) - the power supply must have a voltage of at least 24 V to fully utilize the power of the charger
Charging termination via delta-peak automation for NiMH batteries
Lithium and lead-acid batteries are charged via the "constant current/constant voltage" (CCCV) method
Adjustable delta-peak detection sensitivity for NiMH batteries
Adjustable end voltage for lithium and lead-acid battery charging
The charger can work as a USB-C/PD2.0/PD3.0/PD3.1 charger for smartphones, tablets and similar devices when powered by a 530V model battery pack (with adjustable voltage limit to prevent deep discharge)

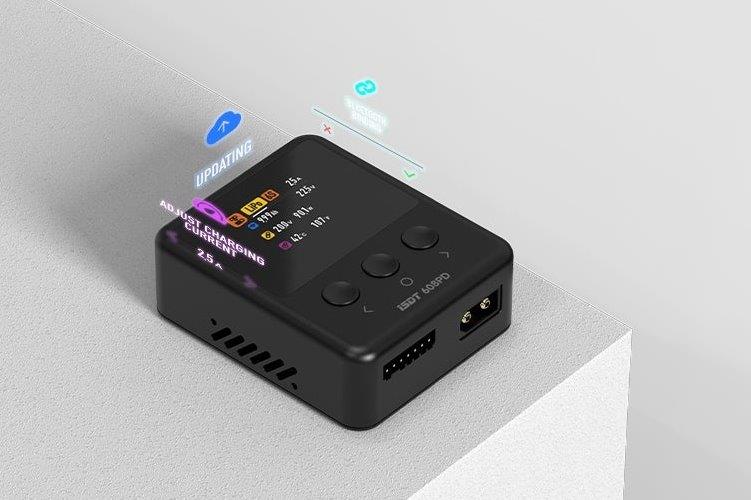

Simple firmware update via USB-C port

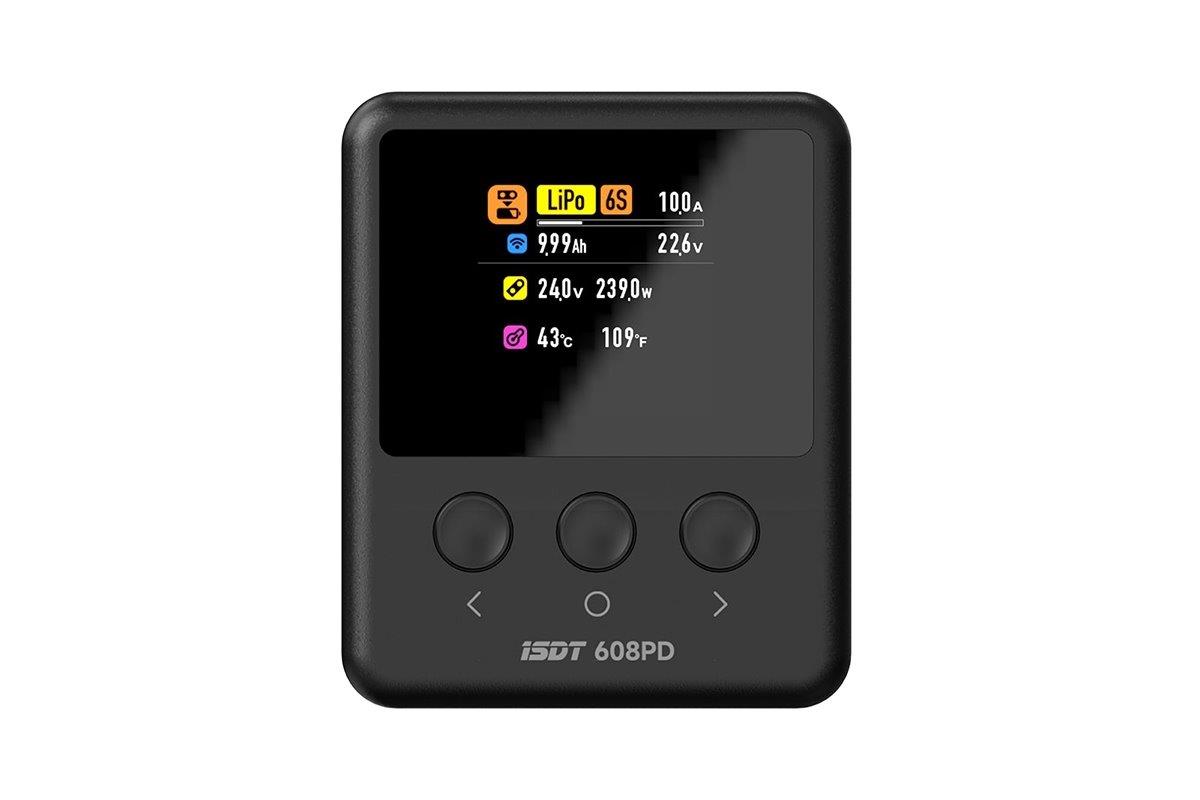

Back-lit LCD with a clear and simple menu and parameter monitoring during charging
Programming buttons for simple setting and operation of the charger
Safety is ensured by several warnings (incorrect battery type/voltage, drop in supply voltage, etc.)

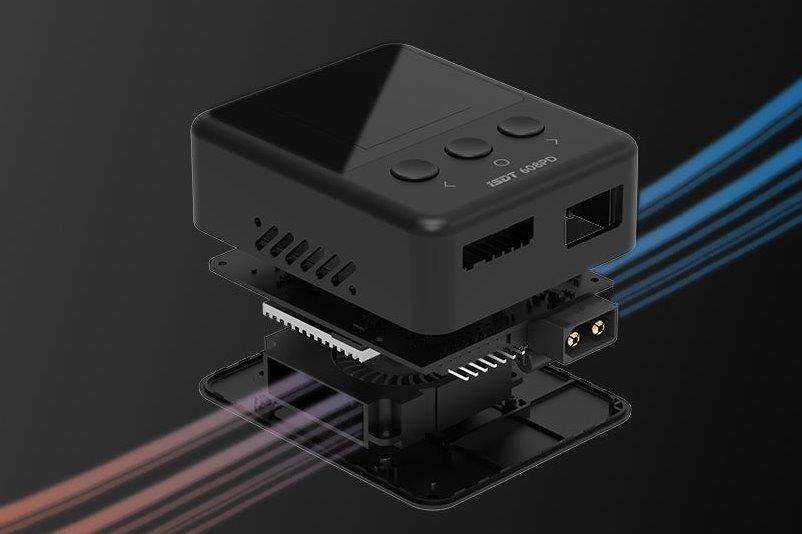

Fan for forced cooling
Compact plastic case, very small dimensions

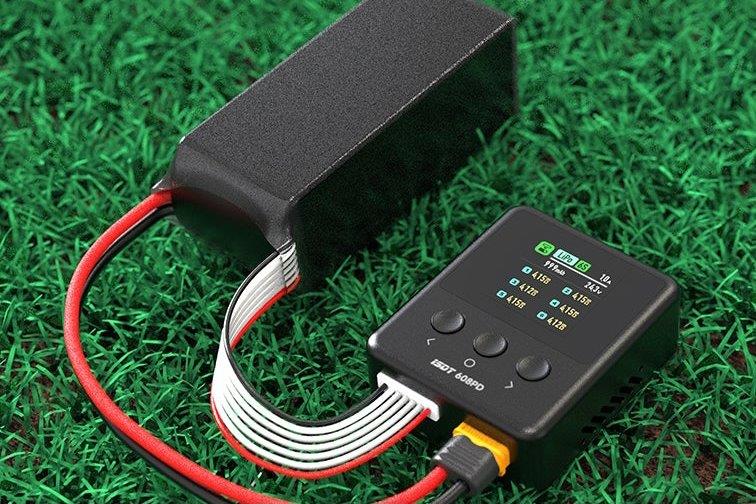

The charger is equipped with an XT60 socket and universal JST-XH socket for service connectors, allowing direct connection of power cables and JST-XH service connectors of 26S packs. If you are using packs with XT60 and JST-XH connectors, you don't need any charging cables or adapters. To connect service cables of a different system you can use standard adapters Sky RC or KAVAN.
The set contains: ISDT 608PD charger, user manual.
Input voltage (autobaterie - DC) [V]: 5 - 30
Charging current [A]: 0.5 - 10
Charging power [W]: 240
Channels: 1
NiMH [čl.]: 1 - 16
Li-Po [čl.]: 1 - 6
Li-Fe [čl.]: 1 - 6
Li-HV [čl.]: 1 - 6
Pb [čl.]: 1 - 12
Balancer: Yes
Balancer current [mA]: 800
Length [mm]: 72.5
Width [mm]: 60
Height [mm]: 26.6
Weight [g]: 85
