Art.nr: JME085O

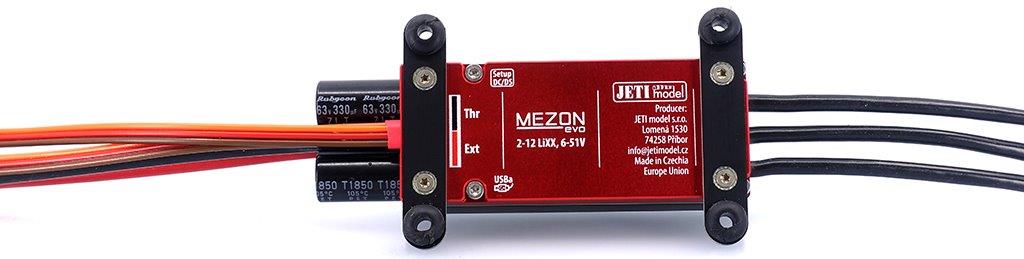

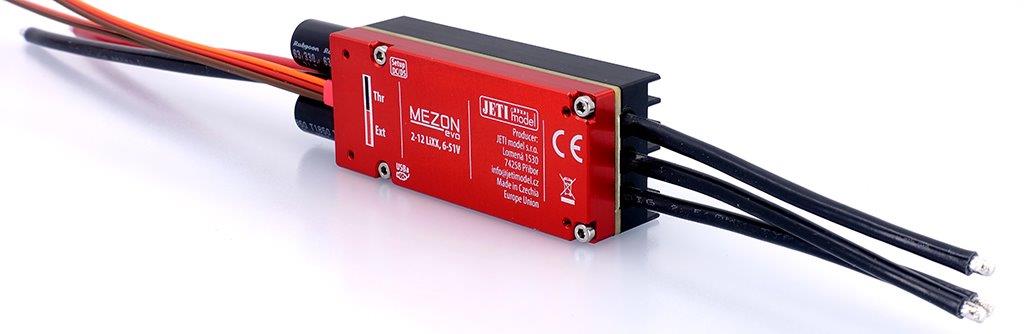

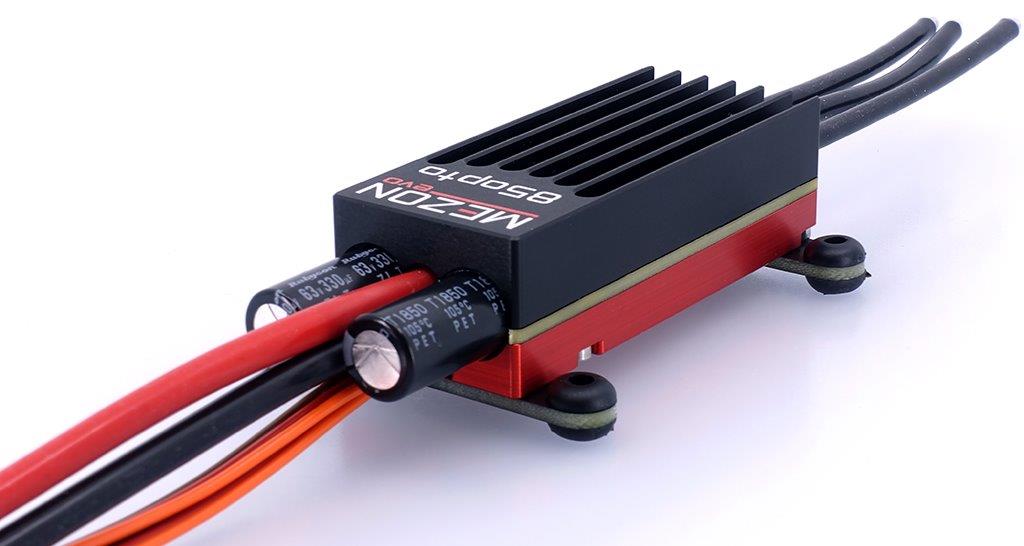

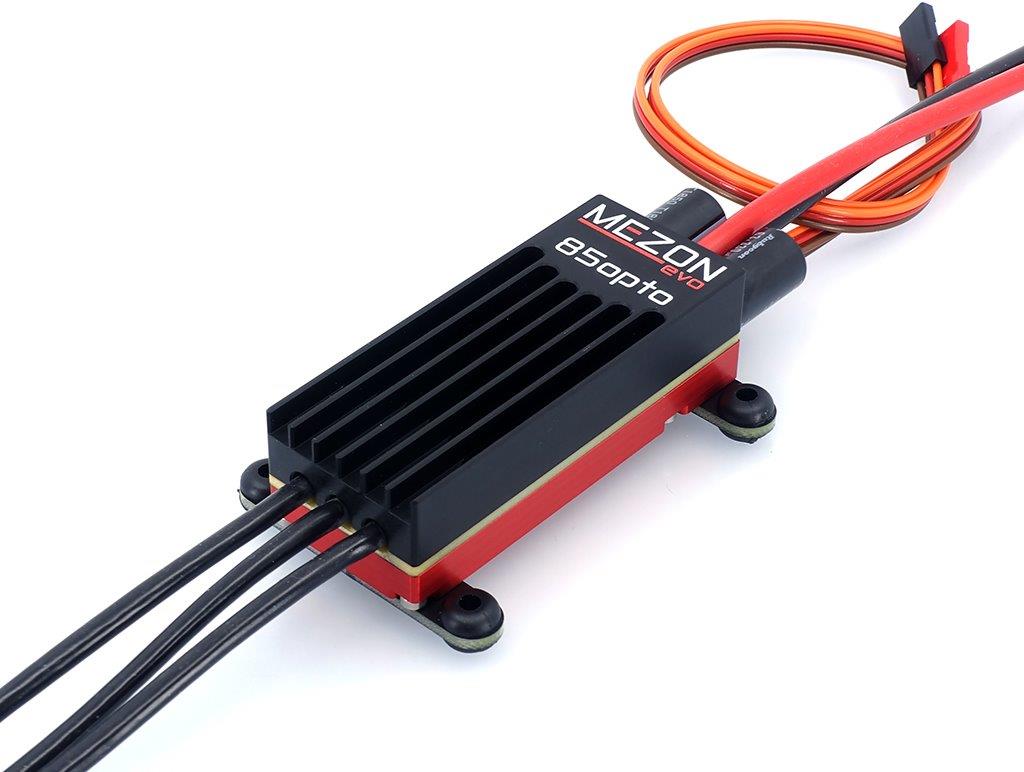

MEZON EVO 85 OPTO controllers have an aluminum box which helps with efficient cooling.
MEZON EVO 85 OPTO is a completely universal controller for models of airplanes, helicopters, ships and vehicles for users not only of JETI Duplex transmitters, but also of other RC systems.
Features
full EX telemetry (voltage, current, capacity, revolution etc.)
setup of device through EX Bus communication from JETI Duplex transmitter
accurate governor and full support of helicopter models
F3A mode for acrobatic planes
adjustable brake with back energy recovering into accumulator
optically separate input
wide range of supply voltage 2 - 12 Lixx (max. 51V)
bidirectional motor run is possible
active proportional brake
effective cooling
compact dimensions
user-friendly wizard for quick setup of the controller ("Quick Setup mode")
in "Expert mode" access to all controller programming options
Weight [g] 83
Dimensions [mm] 28 x 20 x 85
Sustained current [A] 85
Telemetry Yes
Operational temperature [°C] -10 to 85
Supply Voltage [V] 6 to 51
Batteries LiXX 2 to 12
Max. Current BEC [A] -
Voltage BEC [V] -
Resistance in conducting state [mΩ] 1.2
Cable crossection (input/output) [mm²] 4 / 2.5
OPTO (optically separated radio signal from the power management) Yes
Average Current BEC [A] -
Peak Current BEC 1s [A] -
Box Aluminum
