Beskrivning
Art.nr: JuSW15

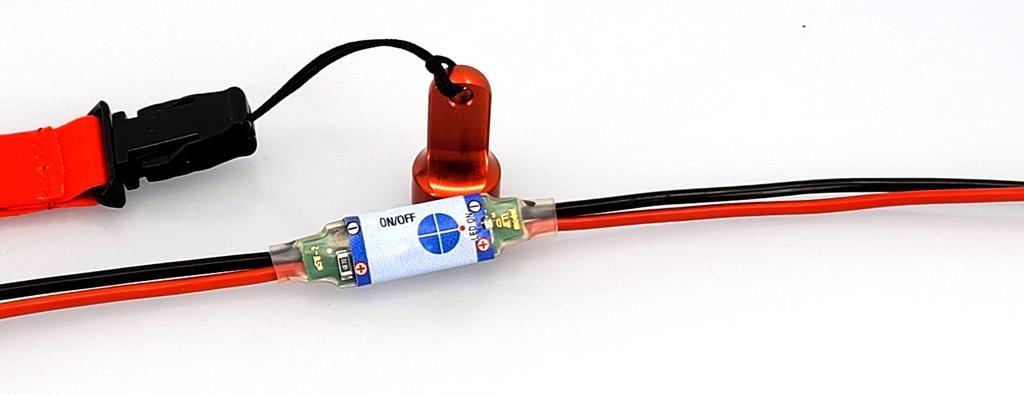

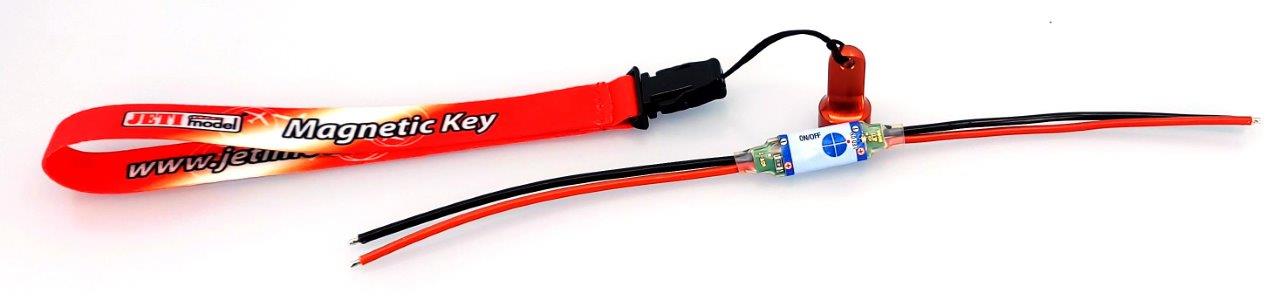

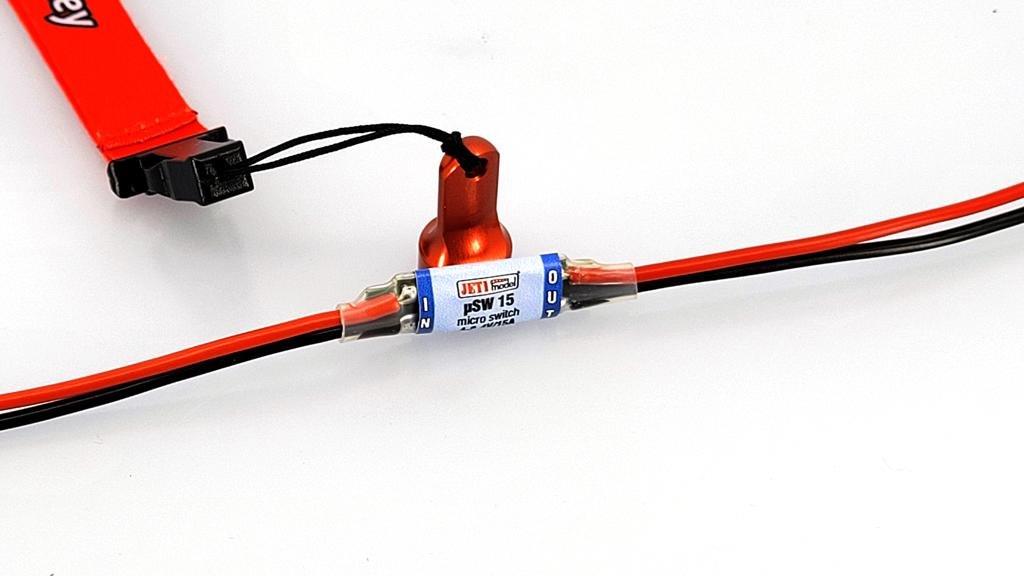

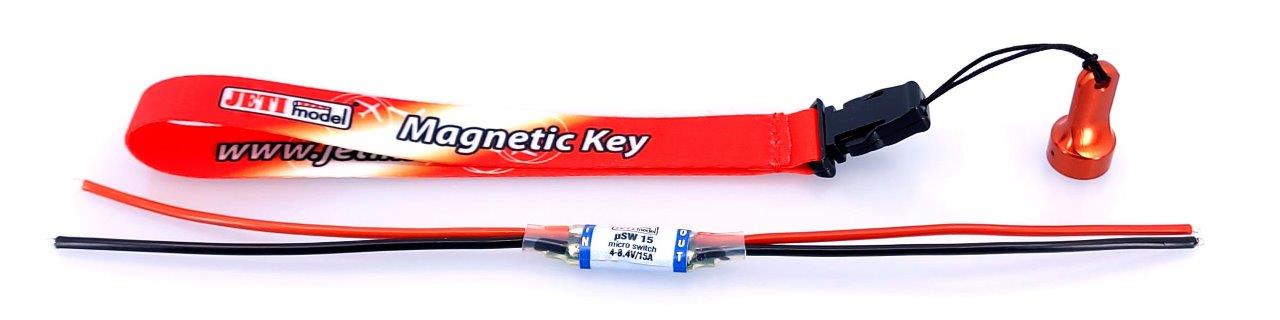

A new type of electronic switch designed for switching the supply voltage of RC models (receivers, servos, etc.). Its compact dimensions and high current endurance will suit all demanding applications for space and weight (e.g. F3J, F5J, F3K, etc.).
Weight [g]: 7
Dimensions [mm]: 32 x 9 x 5
Sustained current [A]: 15
Pulse current [A]: 90
Telemetry: No
Operational temperature [°C]: -10 to 70
Recommended input voltage [V]: 04 to 8.4
Idle current [µA]: 35
Weight [g]: 7
Dimensions [mm]: 32 x 9 x 5
Sustained current [A]: 15
Pulse current [A]: 90
Telemetry: No
Operational temperature [°C]: -10 to 70
Recommended input voltage [V]: 04 to 8.4
Idle current [µA]: 35
