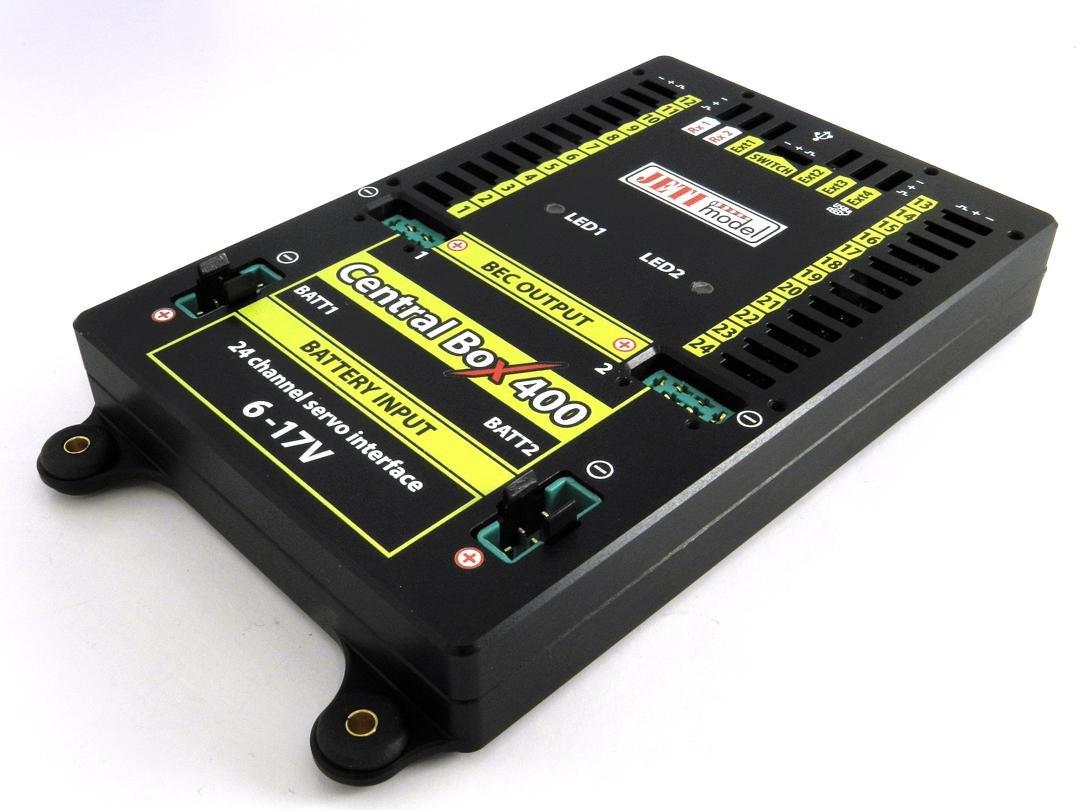

JETI mottagare Central box 400
7 495 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: JCB400
The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety.
The Central Box 400 is a switchboard designed for the complete management of servos in large to giant models with an emphasis on safety. The Central Box 400 has a unique design that provides overload protection at each servo output. An independent, very powerful BEC (battery eliminator circuit) for each battery input makes the Central Box an optimal solution to connect up to 24 servos. The Central Box 400 can manage the batteries and fully supports the JETI EX telemetry system. Up to two receivers with serial (PPM, EX Bus, UDI) output can be connected to the Central Box 400. With a JETI DC/DS transmitter, the full potential of the Central Box can be used, such as easy configuration of the Central Box, EX telemetry, and very fast servo response.
Central Box 400 supports up to 24 protected servo outputs, two battery inputs with voltage regulators and incorporates possibility to connect an RC or magnetic switch.
Attributes
Two independent high-powered BEC´s for voltage stabilization of servos
Overload protection on each channel
Overload protection on Rx, Ext, and Switch outputs
Possibility to connect up to 2 receivers with serial interface (PPM, EX Bus, UDI)
Built-in Expander function for up to 4 sensors
Input for magnetic switch or RC switch
MPX battery input connectors: 2x
Stabilized voltage output via a pair of MPX connectors
100Hz mode of servo outputs (10ms period)
Supports EX telemetry (voltage, current, capacity, and temperature measurement, overload indication, ...)
Easy settings changes via DC/DS transmitter
Internal memory for storage of telemetry data
USB connectivity for connection to PC
Easy settings changes via DC/DS transmitter
Firmware updatable
Suitable for use with high voltage (HV) servos
Robust metal construction with mounting holes
LED status indication
Each output is individually configurable (channel assignment, trim, reverse, ATV)
Weight [g]: 270
Dimensions [mm]: 131 x 88 x 19
Sustained current [A]: 30
Number of channels: 24
Telemetry: Yes
Operational temperature [°C]: -20 to 75
Compatible protocols: EX Bus, PPM, S.Bus, UDI
Supply Voltage [V]: 6 to 17
Average Current [mA]: 50
Satellite receiver support: Yes
Batteries NiXX: 6 ... 12
Batteries LiXX: 2 to 4
Voltage BEC [V]: 5 to 8
Idle current [µA]: 60
Number of battery inputs: 2
Voltage stabilization: Yes
Peak current (2s) [A]: 230
Packaging: Magnetic switch, Magnetic key
Protected servo output: Yes
