Beskrivning

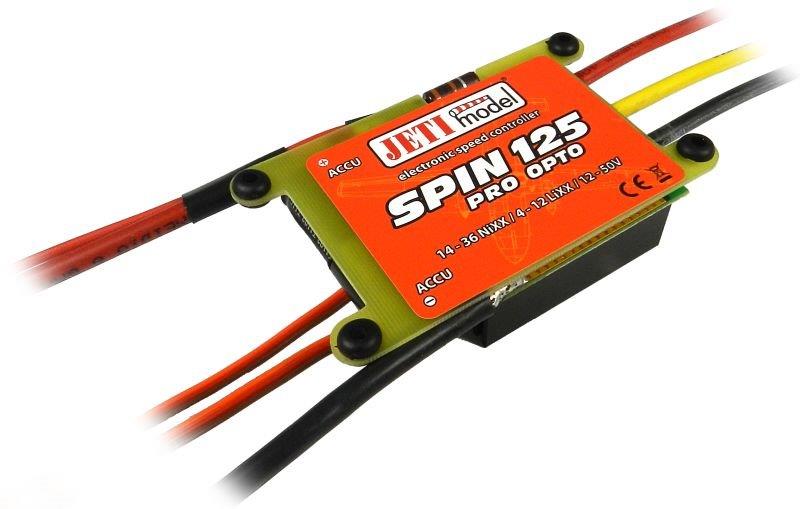

Art.nr: JSP125O
Opto controllers have galvanically separated input (the receiver signal) from power accumulators, therefore it's necessary to use independent power supply for the receiver and servos (4-5 NiXX or 2-3 LiXX with linear voltage regulator, such as MAX BEC).
SPIN opto controllers are provided with two JR connectors. Connector on the longer three-line cable with black ending is to be linked to the receiver. Connector on the shorter three-line cable with red ending is intended for communication with JETIBOX; for programming or data reading connect it into slot marked imp. + - on JETIBOX.
Weight [g]: 120
Dimensions [mm]: 65 x 55 x 25
Sustained current [A]: 125
Supply Voltage [V]: 12 to 50
Batteries LiXX: 4 to 12
Max. Current BEC [A]: -
OPTO (optically separated radio signal from the power management): Yes
Voltage BEC [V]: -
Telemetry: Yes
Operational temperature [°C]: -10 to 85
Max. number of servos: -
Resistance in conducting state [mΩ]: 2 x 1.00
Number of power transistors: 48
Cable crossection (input/output) [mm²]: 4.0 / 2.5
Input capacitance [µF]: 4 x 470
SPIN opto controllers are provided with two JR connectors. Connector on the longer three-line cable with black ending is to be linked to the receiver. Connector on the shorter three-line cable with red ending is intended for communication with JETIBOX; for programming or data reading connect it into slot marked imp. + - on JETIBOX.
Weight [g]: 120
Dimensions [mm]: 65 x 55 x 25
Sustained current [A]: 125
Supply Voltage [V]: 12 to 50
Batteries LiXX: 4 to 12
Max. Current BEC [A]: -
OPTO (optically separated radio signal from the power management): Yes
Voltage BEC [V]: -
Telemetry: Yes
Operational temperature [°C]: -10 to 85
Max. number of servos: -
Resistance in conducting state [mΩ]: 2 x 1.00
Number of power transistors: 48
Cable crossection (input/output) [mm²]: 4.0 / 2.5
Input capacitance [µF]: 4 x 470
