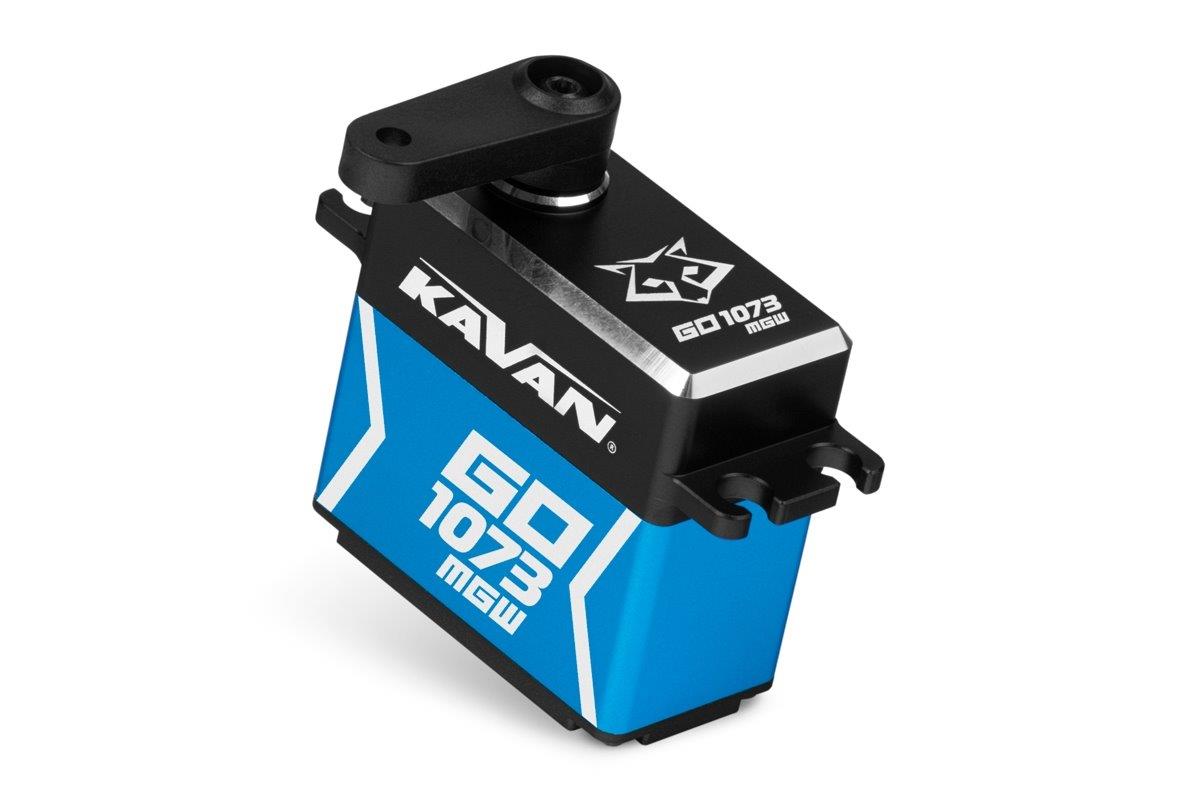

KAVAN GO-1073MGW 0.135s/60°, 32kg.cm

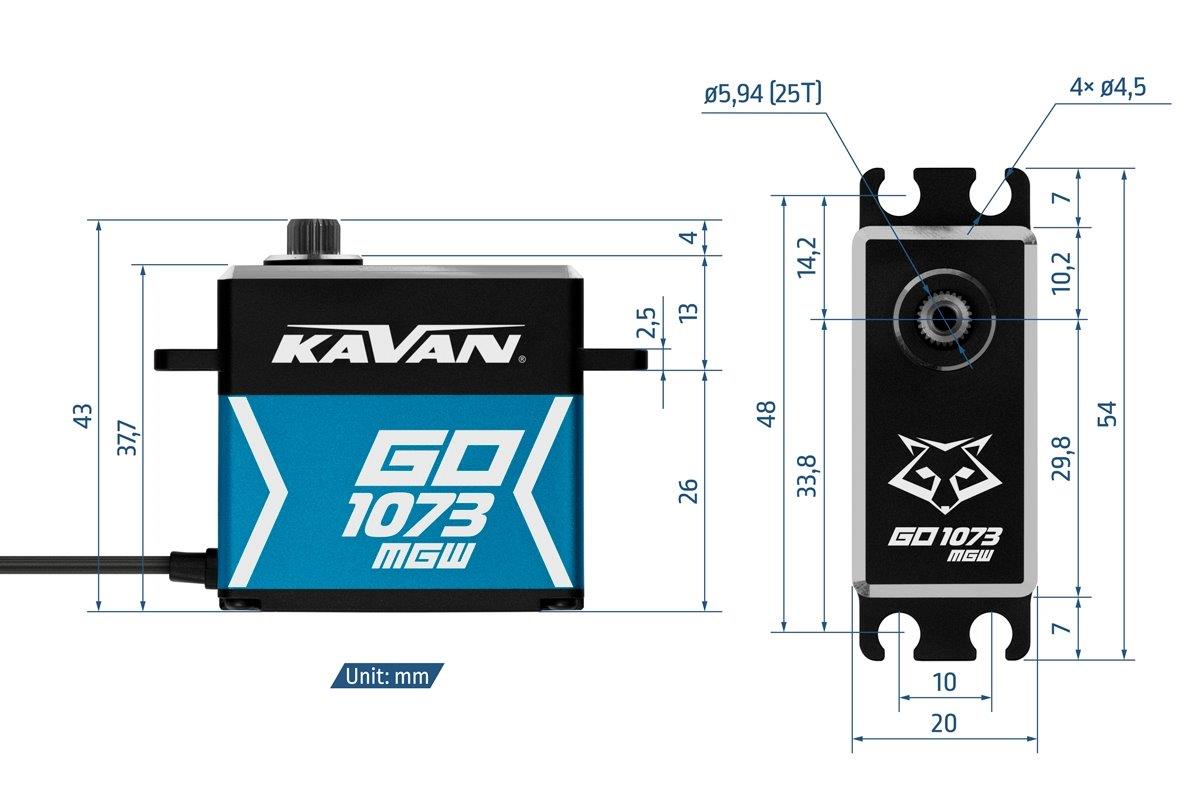

Very high torque/high speed waterproof programmable digital standard brushless 73g servo with a coreless motor, magnetic encoder, hardened steel gears and wide input voltage range 4.8-8.4V, 2xBB, ideal for large/giant aircraft, 1:8-1:10 RC cars, boats etc. Torque 22.0kg.cm, speed 0.180s/60° at 4.8V, torque 26.0kg.cm, speed 0.160s/60° at 6.0V, torque 29.0kg.cm, speed 0.145s/60° at 7.4V, torque 32.0kg.cm, speed 0.135s/60° at 8.4V. Waterproof/dustproof (IP67) aluminium case for perfect cooling under high load and thorough protection. Dimensions 40x20x37.5mm, weight 73g.

Very high torque/high speed programmable digital standard 73g servo with a coreless motor, hardened steel gear and double BB-ed output shaft. Works great in large/giant planes, 1:8 or 1:10 RC cars, boats etc. All-aluminium waterproof/dustproof (IP67 standard) case for perfect cooling under high load and thorough protection.

GO-1073MGW is programmable using the KAVAN GO servo USB programmer/interface and PC software.

Programmable Functions

• Servo Angle: Maximal servo rotation angle range setting. The default range is ca 120° within the regular RC signal pulse width range (900~2100 µs); ca 180° within the max. signal pulse width range (500~2500 µs).
• Servo Neutral: Servo neutral (centre) position setting.
• Damping Factor: Servo damping setting – adjust the characteristics of the servo when stopping.
• PWM Power: Adjusts the servo output power. The higher the power, the higher the speed and torque of the servo – indeed also the current consumption will be higher.
• Sensitivity: Servo sensitivity (Dead Band) setting. The higher sensitivity the narrower the dead band – servo moves only if the change of the signal pulse width is bigger than the dead band width. Too high setting may cause servo jitter in some applications. Range: Ultra High (ca 1 µs dead band) – High (ca 2 µs) – Medium (ca 3 µs) – Low (ca 4 µs)
• Soft Start: Turns on/off the soft start feature. If ON, the servo goes slowly to the initial position corresponding to the servo signal once the power is switched on.
• Reverse: Reverses the servo movement direction.
• Narrow Band: FUTABA SR Mode – only for use with FUTABA radio channels working in the SR mode. Do not turn the option on if you are using a different setting of your FUTABA radio or any other radio.
• SANWA SSR: SANWA SSR Mode - only for use with SANWA radio channels working in the SSR mode. Do not turn the option on if you are using a different setting of your SANWA radio or any other radio.
• Lost PPM Protection (Fail-Safe): In the case the control signal from the receiver is lost completely or cannot be decoded correctly (due to interference) the servo can use choose one of three fail-safe modes:
o (a) Release: No fail-safe protection.
o (b) Keep Position: Keeps the position corresponding to the last correct control signal.
o (c) Go Neutral Position: The servo returns to the neutral (1500 µs pulse width) position.
• Over Load protection: Enables or disables overload protection of the servo in three levels – once the overload conditions last for the pre-set time (in seconds), the output power of the servo is reduced to the corresponding pre-set level (% of the max. power).
• Default: Restores the factory default setting of the connected servo.

Wide input voltage range 4.8-8.4 V (nominal).

25T/5.92 mm output shaft.

Servo dimensions Standard
Servo type Digital
Programmable Yes
Thrust at 4.8V [kg∙cm] 22
Thrust at 6.0V [kg∙cm] 26
Thrust at 7.4V [kg∙cm] 29
Thrust at 8.4V [kg∙cm] 32
Speed at 4.8V [s/60st.] 0.18
Speed at 6.0V [s/60st.] 0.16
Speed at 7.4V [s/60st.] 0.145
Speed at 8.4V [s/60st.] 0.135
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 4.8 - 8.4
Length [mm] 40
Width [mm] 20
Height [mm] 37.5
Weight [g] 73
Intended for Aeroplanes,On-road cars,Off-road cars,Sailing boats,Boats
Water resistance Waterproof
