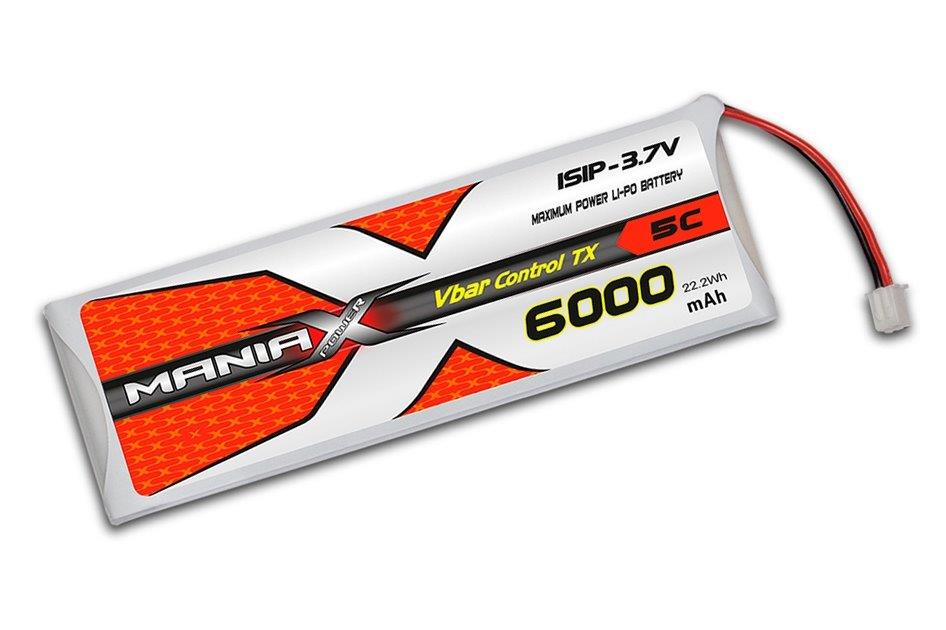

ManiaX Lipol 3.7V 6000mAh 5C (Vcontrol TX)

The specific conditions of the transmitter (and also receiver) operation call for a dedicated type of LiPo batteries – there is no need for high discharge rate but low self-discharge and tolerance to irregular charging cycles and long term storage in fully charged state are essential. We are happy to introduce a special line of 5/10C, resp. 15/30C ManiaX LiPo batteries optimized for transmitter or receiver use.

Do not use a charge rate higher than 2C, the recommended charge rate is 1C. We recommend using a balancer during every charge. ManiaX transmitter LiPo batteries do not require any initial forming; however, the initial three charging cycles should be performed at a rate not higher than 0.5C. There is no need to discharge the LiPo batteries before the charging - you can charge partly discharged packs.

The batteries are supplied as a pack tailored to the Vbar Control transmitters. The packs feature output (charging) cables with the JST-XH connector.

The package contents: ManiaX battery pack, instruction manual.

Capacity [mAh]: 6000
Voltage [V]: 3.7
Charging current [A]: 3 - 6
Max. charging current [A]: 12
Discharging current [A]: 30
Max. discharging current [A]: 60
Energy [Wh]: 22.2
Length [mm]: 132
Width [mm]: 43
Height [mm]: 10
Weight [g]: 116
