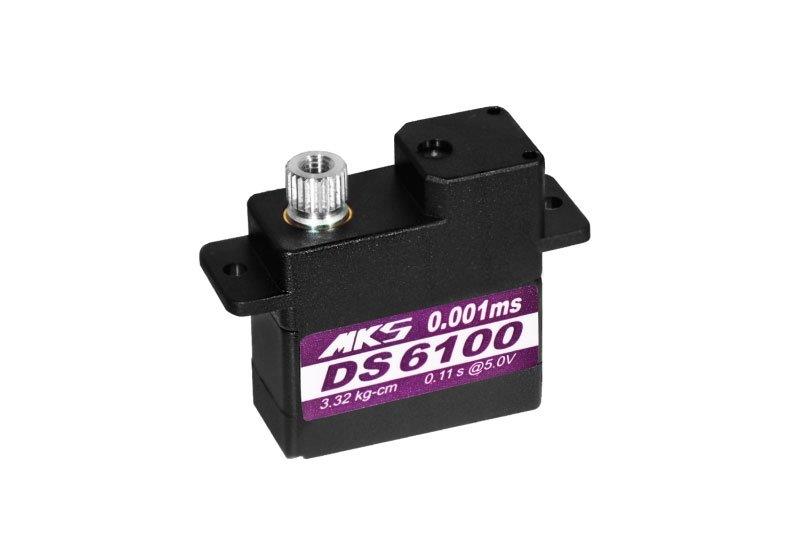

MKS DS6100 0.12s/60°, 3.19kg.cm

Very high torque/ high speed programmable digital micro servo with metal gears with 2 jewel bearings and one oil-retaining bearing. The slim 10 mm servo case makes it particularly suitable for controlling ailerons and flaps in hand launch gliders, smaller gliders/hotliners and motor models.

Input voltage range 4.8-5.0 V (nominal).

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.

Servo dimensions Micro
Servo type Digital
Programmable Yes
Thrust at 4.8V [kg∙cm] 3.19
Torque at 5.0 V [kg∙cm] 3.32
Speed at 4.8V [s/60st.] 0.12
Speed at 5.0 V [s/60st.] 0.11
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings None
High-voltage No
Power supply [V] 4.8 - 5

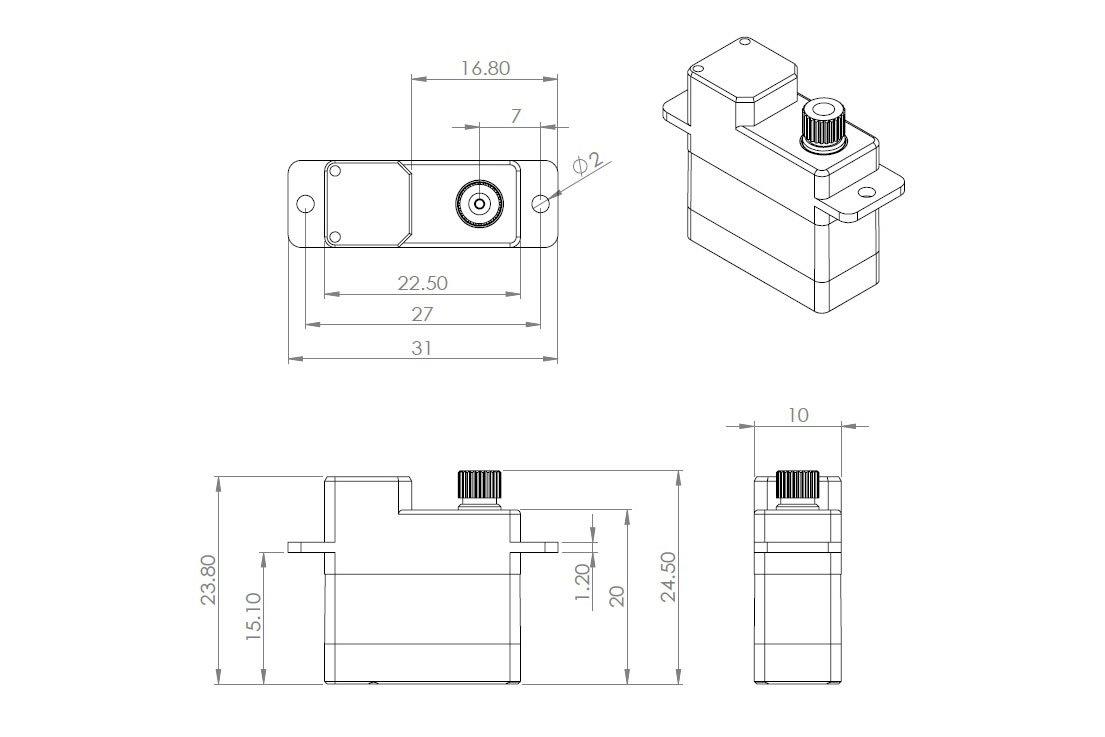

Length [mm] 22.5
Width [mm] 10
Height [mm] 23.8
Weight [g] 9.5
Intended for Aeroplanes
