MKS DS760 0.027s/60°, 4.9kg.cm
1 337,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: MKS12002

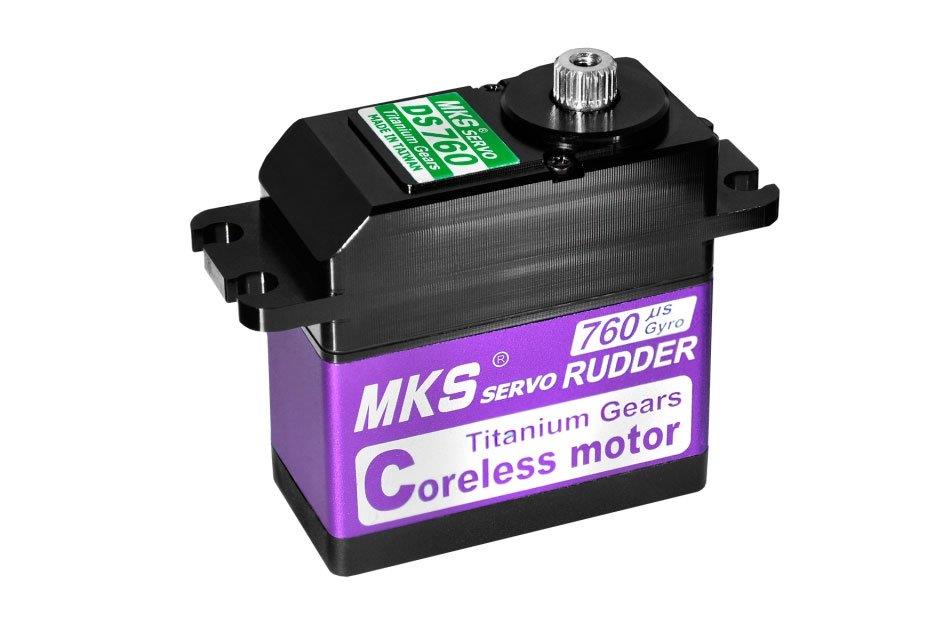

Ultra high speed narrowband (760µs) digital standard servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 600 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium mid case for perfect cooling even under high loads. This servo is not programmable.
Input voltage range 4.8-6.6 V (nominal), 4.8-7.0 V operational.
Servo dimensions Standard
Servo type Digital
Programmable No
Thrust at 4.8V [kg∙cm] 3.9
Thrust at 6.0V [kg∙cm] 4.9
Speed at 4.8V [s/60st.] 0.034
Speed at 6.0V [s/60st.] 0.027
Control pulse width in neutral [µs] 760
Frame Rate [Hz] 560
Deadband [ms] 0.0004
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 4.8 - 6

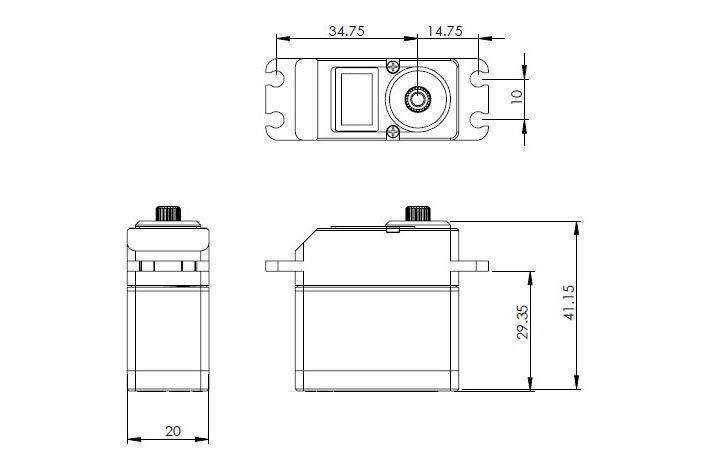

Length [mm] 40
Width [mm] 20
Height [mm] 40
Weight [g] 75
Intended for Helicopters
Input voltage range 4.8-6.6 V (nominal), 4.8-7.0 V operational.
Servo dimensions Standard
Servo type Digital
Programmable No
Thrust at 4.8V [kg∙cm] 3.9
Thrust at 6.0V [kg∙cm] 4.9
Speed at 4.8V [s/60st.] 0.034
Speed at 6.0V [s/60st.] 0.027
Control pulse width in neutral [µs] 760
Frame Rate [Hz] 560
Deadband [ms] 0.0004
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 4.8 - 6
Length [mm] 40
Width [mm] 20
Height [mm] 40
Weight [g] 75
Intended for Helicopters
