MKS DS95 0.053s/60°, 3.05kg.cm
1 062,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: MKS17002
Ultra high speed narrowband (760µs) digital micro servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 380-420 class mini helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case for perfect cooling even under high loads. This servo is not programmable.
Input voltage range 4.8-6.0 V (nominal).
Servo dimensions Micro
Servo type Digital
Programmable No
Thrust at 4.8V [kg∙cm] 1.92
Thrust at 6.0V [kg∙cm] 2.4
Speed at 4.8V [s/60st.] 0.047
Speed at 6.0V [s/60st.] 0.038
Control pulse width in neutral [µs] 760
Frame Rate [Hz] 560
Deadband [ms] 0.0005
Servo gears Metal
Ball bearings 2×
High-voltage No
Power supply [V] 4.8 - 7

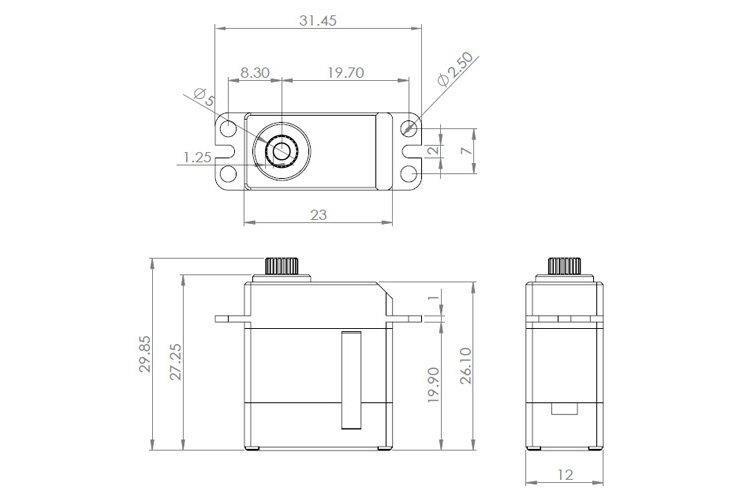

Length [mm] 23
Width [mm] 12
Height [mm] 27.25
Weight [g] 21.21
Intended for Aeroplanes,Helicopters
