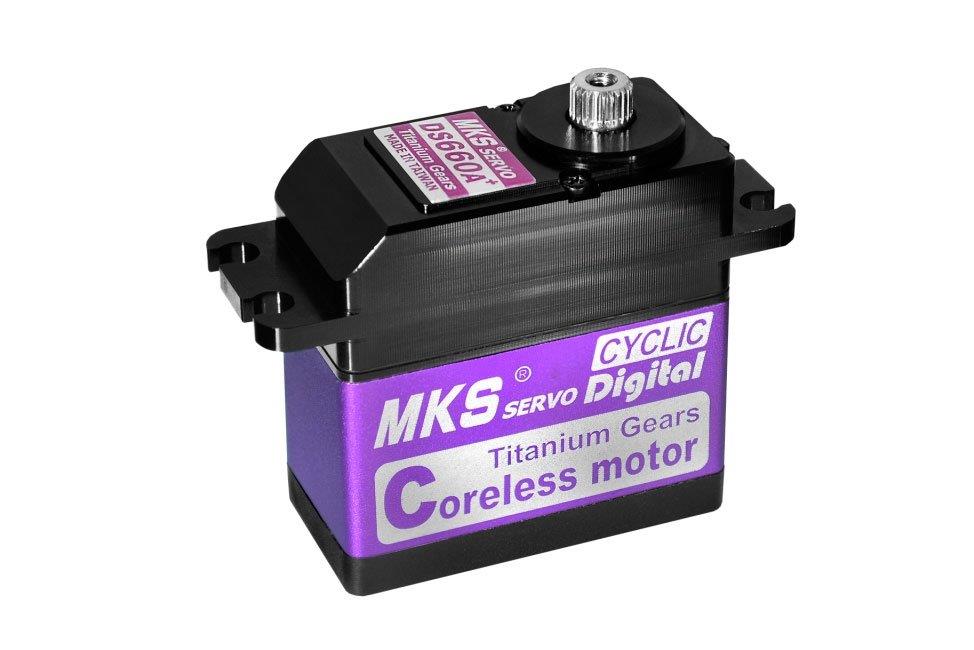

MKS DS9910 DS660A+ 0.14s/60°, 26.3kg.cm
1 342,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: MKS120A1
High torque digital standard servo with metal gears and twin ballraced output shaft for general use, larger model aeroplanes as well as RC cars and boats. An aluminium mid case for perfect cooling even under high loads. This servo is not programmable
Input voltage range 4.8-6.0 V (nominal), 4.8-7.0 V operational.
Servo dimensions Standard
Servo type Digital
Programmable No
Thrust at 4.8V [kg∙cm] 21.05
Thrust at 6.0V [kg∙cm] 26.3
Speed at 4.8V [s/60st.] 0.186
Speed at 6.0V [s/60st.] 0.149
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 4.8 - 6

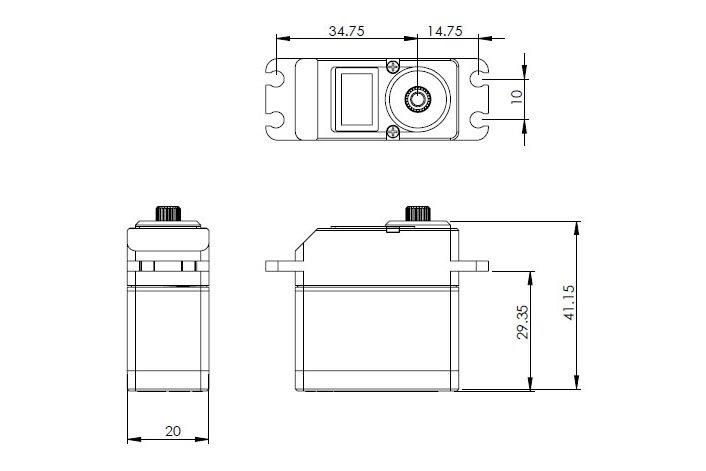

Length [mm] 40
Width [mm] 20
Height [mm] 40
Weight [g] 75
Intended for Aeroplanes
Input voltage range 4.8-6.0 V (nominal), 4.8-7.0 V operational.
Servo dimensions Standard
Servo type Digital
Programmable No
Thrust at 4.8V [kg∙cm] 21.05
Thrust at 6.0V [kg∙cm] 26.3
Speed at 4.8V [s/60st.] 0.186
Speed at 6.0V [s/60st.] 0.149
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 4.8 - 6
Length [mm] 40
Width [mm] 20
Height [mm] 40
Weight [g] 75
Intended for Aeroplanes
