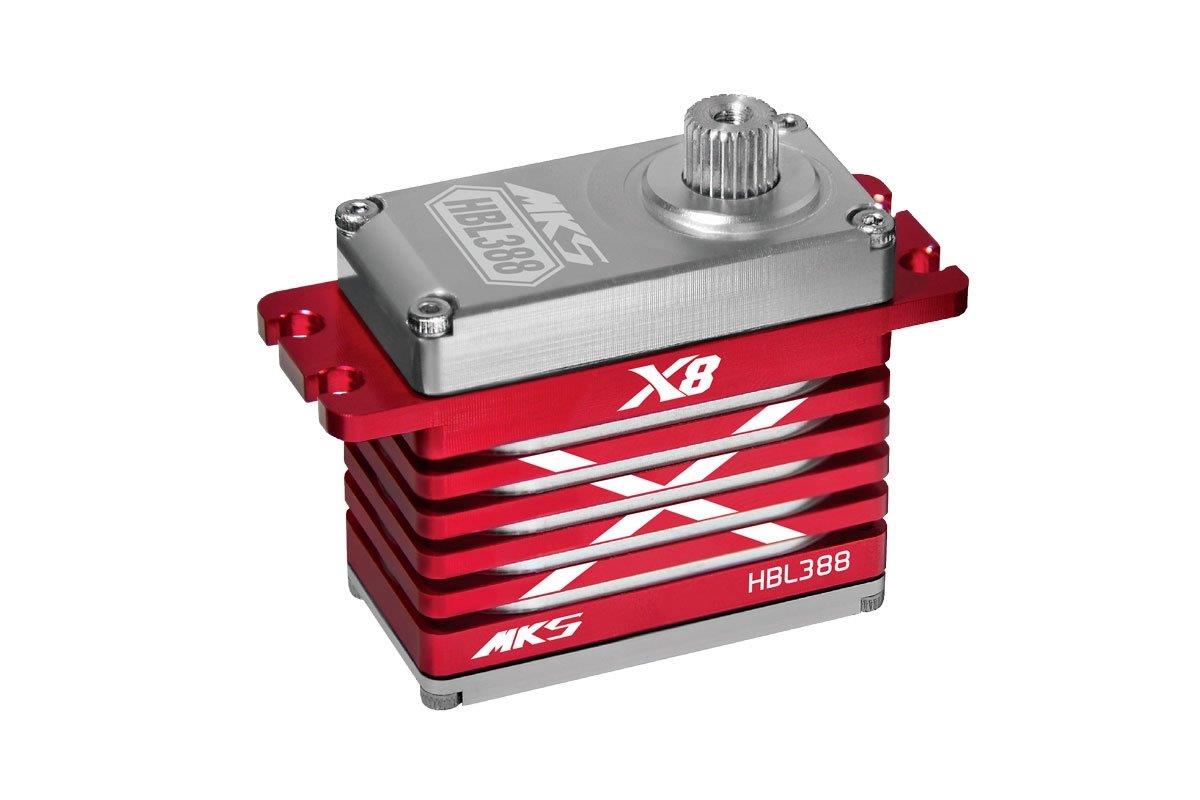

MKS HBL388 0.14s/60°, 68.0kg.cm

Ultra high torque programmable digital standard brushless servo with titanium gears and twin ballraced output shaft; ideal for giant model aeroplanes. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads.

Input voltage range 6.0-7.4 V (nominal), operational 6.0-8.4 V.

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.

Servo dimensions Standard
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg∙cm] 50
Thrust at 7.4V [kg∙cm] 60
Torque at 8.2 V [kg∙cm] 68
Speed at 6.0V [s/60st.] 0.19
Speed at 7.4V [s/60st.] 0.16
Speed at 8.2 V [s/60st.] 0.14
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.0008
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4

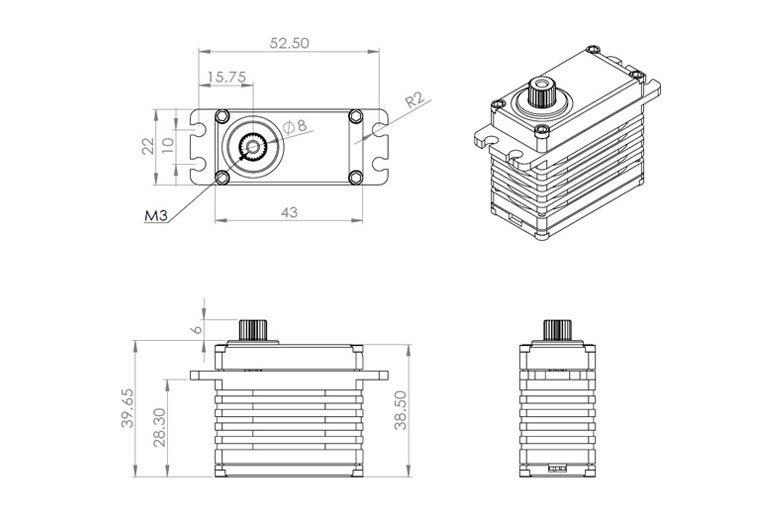

Length [mm] 43
Width [mm] 22
Height [mm] 39.65
Weight [g] 93.3
Intended for Aeroplanes
