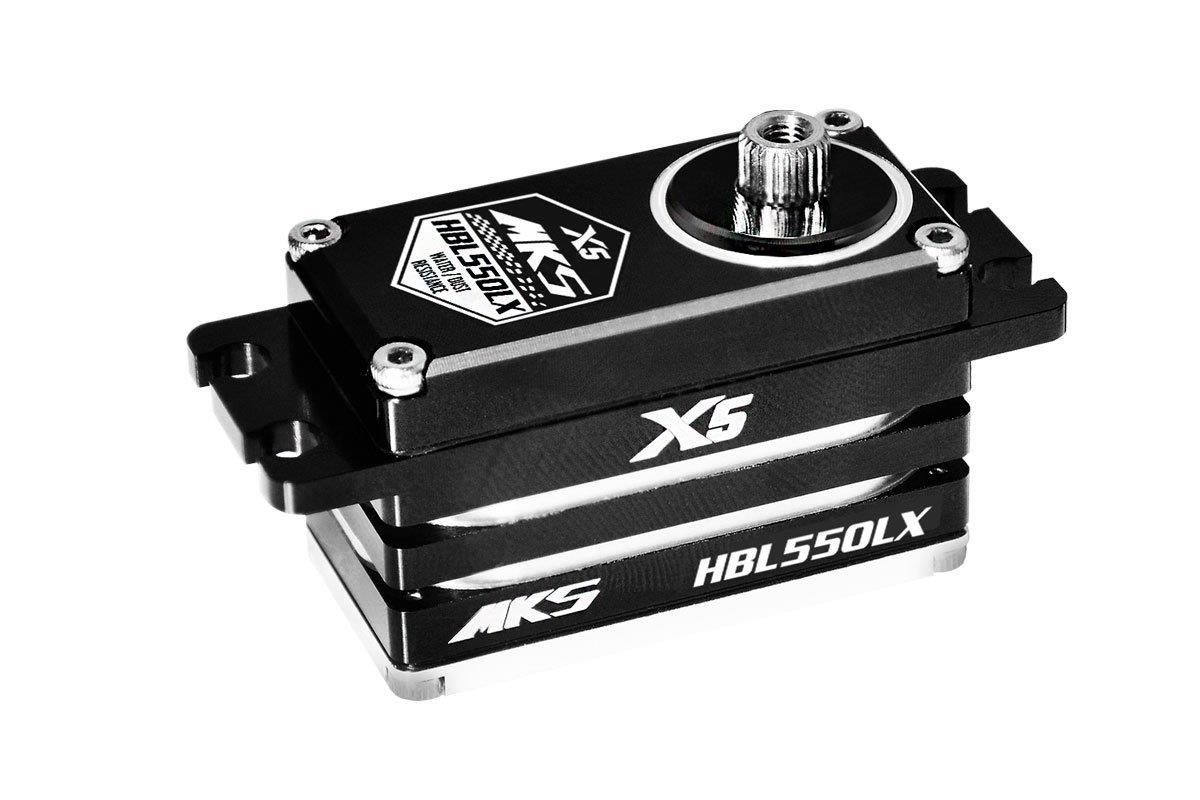

MKS HBL550LX 0.083s/60°, 16.0kg.cm

Very high torque/very high speed waterproof/dustproof programmable digital low-profile standard brushless servo with metal gears and twin ballraced output shaft; ideal for 1/10 and 1/8 off-road RC cars. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads.

Wide input voltage range 4.8-7.4 V (nominal), operational 4.8-8.4 V.

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.

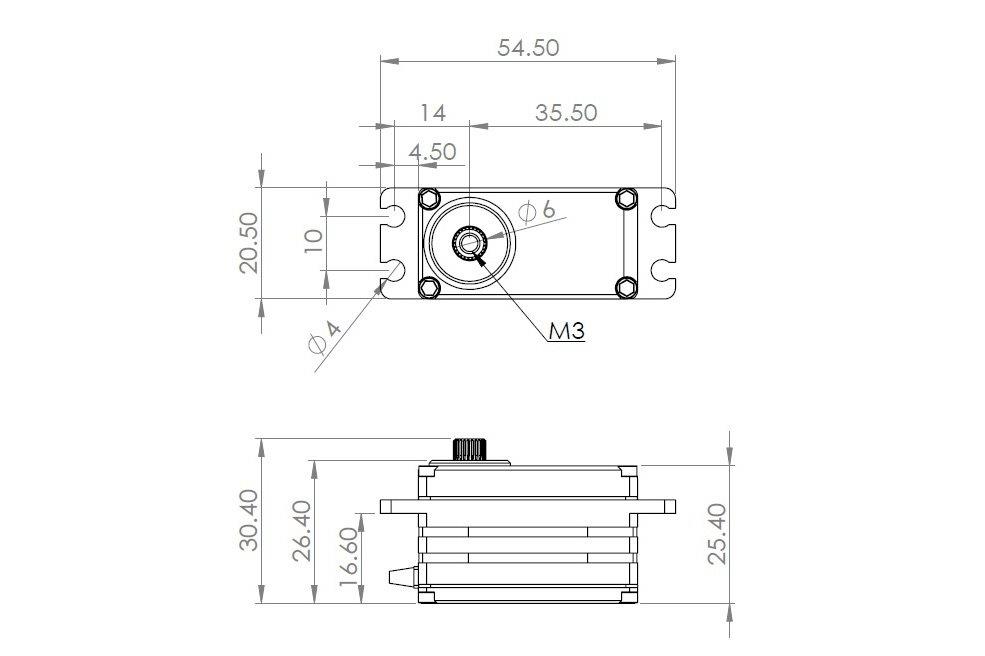

Servo dimensions Standard
Servo type Digital
Programmable Yes
Thrust at 4.8V [kg∙cm] 10.4
Thrust at 6.0V [kg∙cm] 13
Thrust at 7.4V [kg∙cm] 16
Speed at 4.8V [s/60st.] 0.13
Speed at 6.0V [s/60st.] 0.103
Speed at 7.4V [s/60st.] 0.083
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 4.8 - 8.4
Length [mm] 40.5
Width [mm] 20.5
Height [mm] 26.4
Weight [g] 57.8
Intended for Aeroplanes,On-road cars,Off-road cars
