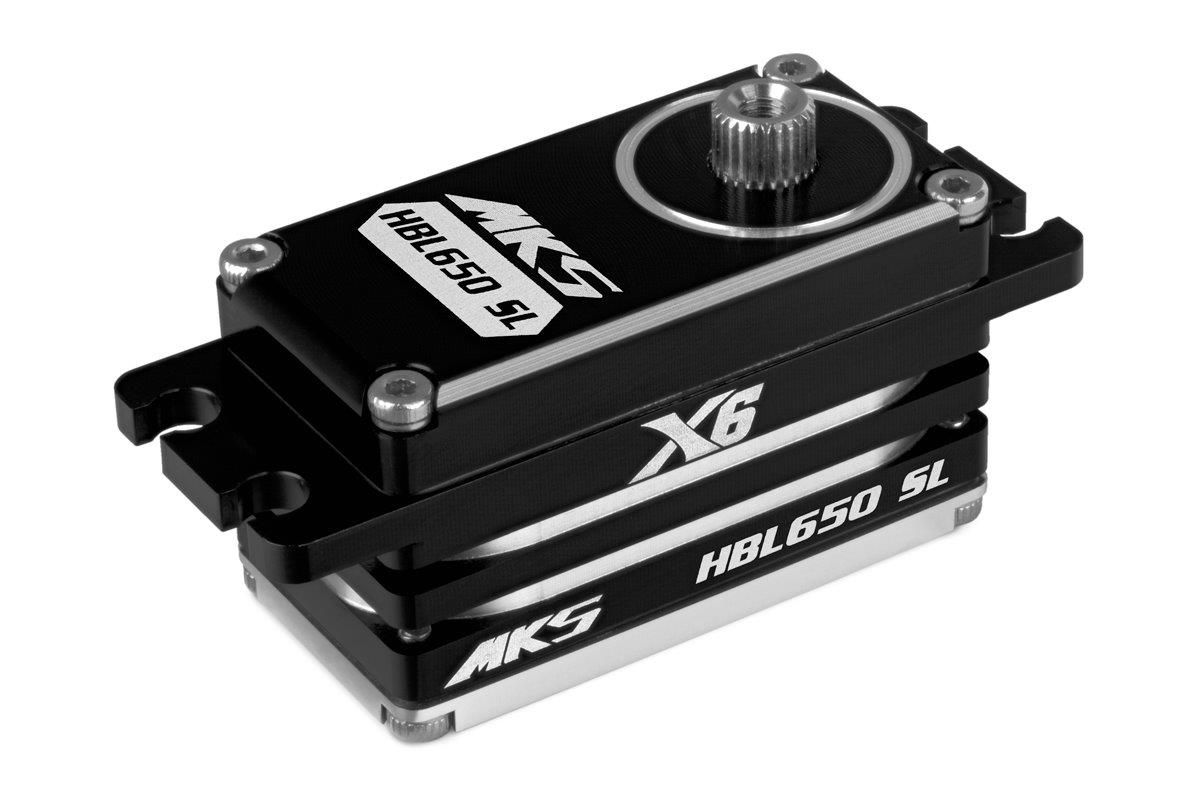

MKS HBL650SL (0.081s/60°, 24.4kg.cm)
1 953,75 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: MKS10018
Super high torque/super high speed 73g HV digital brushless low-profile standard servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for cyclic of 550-700 class helicopters. Torque 18.5kg.cm, speed 0.110s/60° at 6.0V, torque 22.9kg.cm, speed 0.090s/60° at 7.4V, torque 25.4kg.cm, speed 0.081s/60° at 8.2V. Aluminium case w. CNC milled heatsink for perfect heat dissipation. Dimensions 40.5x20.5x23.1mm, weight 54g
Super high torque/super high speed programmable digital low-profile standard brushless servo with metal gears and twin ballraced output shaft. Ideal for cyclic of 550-700 class helicopters. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads.
Input voltage range 6.0-7.4 V (nominal).
Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Servo dimensions: Standard
Servo type: Digital
Programmable: Yes
Torque at 6.0V [kg∙cm]: 18.5
Torque at 7.4V [kg∙cm]: 22.9
Torque at 8.2 V [kg∙cm]: 25.4
Speed at 6.0V [s/60st.]: 0.11
Speed at 7.4V [s/60st.]: 0.09
Speed at 8.2 V [s/60st.]: 0.081
Control pulse width in neutral [µs]: 1520
Frame Rate [Hz]: 333
Deadband [ms]: 0.0008
Servo gears: Metal
Ball bearings: 2×
High-voltage: Yes
Power supply [V]: 6 - 8.4

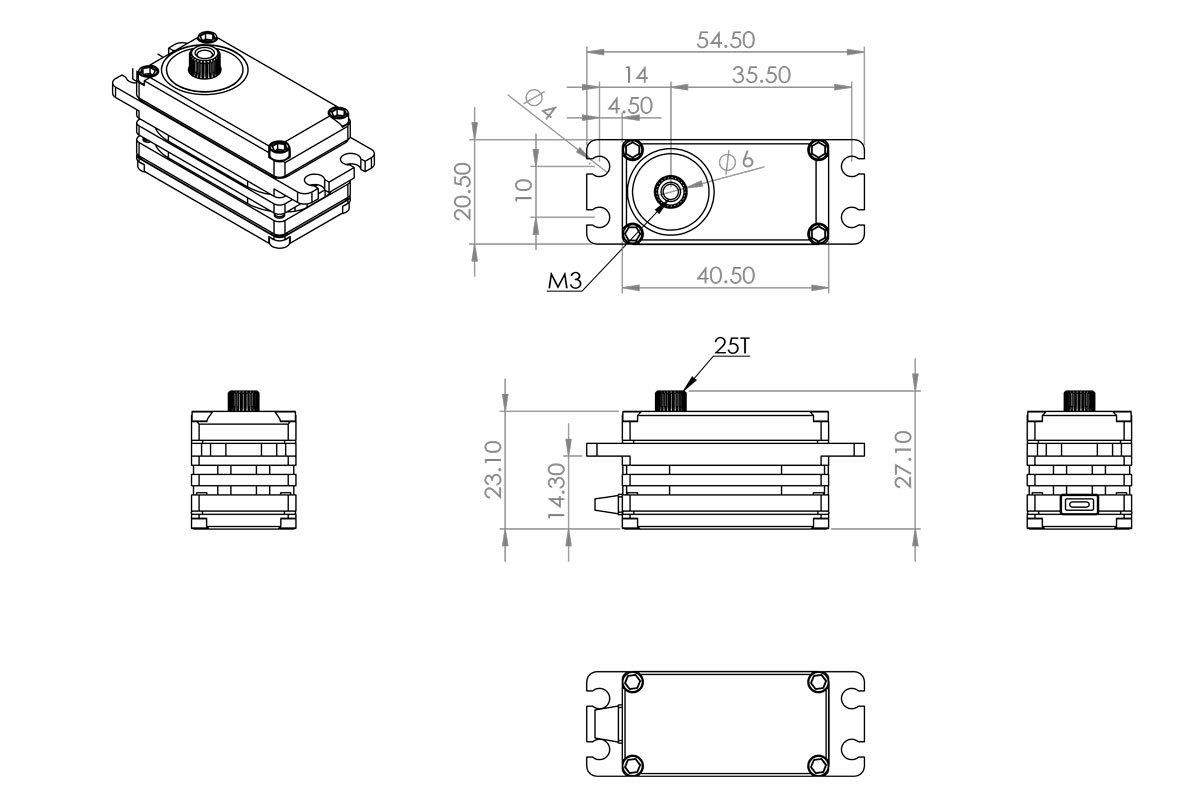

Length [mm]: 40.5
Width [mm]: 20.5
Height [mm]: 23.1
Weight [g]: 54
Intended for: Aeroplanes,Helicopters
Servo motor type: Brushless
Super high torque/super high speed programmable digital low-profile standard brushless servo with metal gears and twin ballraced output shaft. Ideal for cyclic of 550-700 class helicopters. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads.
Input voltage range 6.0-7.4 V (nominal).
Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Servo dimensions: Standard
Servo type: Digital
Programmable: Yes
Torque at 6.0V [kg∙cm]: 18.5
Torque at 7.4V [kg∙cm]: 22.9
Torque at 8.2 V [kg∙cm]: 25.4
Speed at 6.0V [s/60st.]: 0.11
Speed at 7.4V [s/60st.]: 0.09
Speed at 8.2 V [s/60st.]: 0.081
Control pulse width in neutral [µs]: 1520
Frame Rate [Hz]: 333
Deadband [ms]: 0.0008
Servo gears: Metal
Ball bearings: 2×
High-voltage: Yes
Power supply [V]: 6 - 8.4
Length [mm]: 40.5
Width [mm]: 20.5
Height [mm]: 23.1
Weight [g]: 54
Intended for: Aeroplanes,Helicopters
Servo motor type: Brushless
