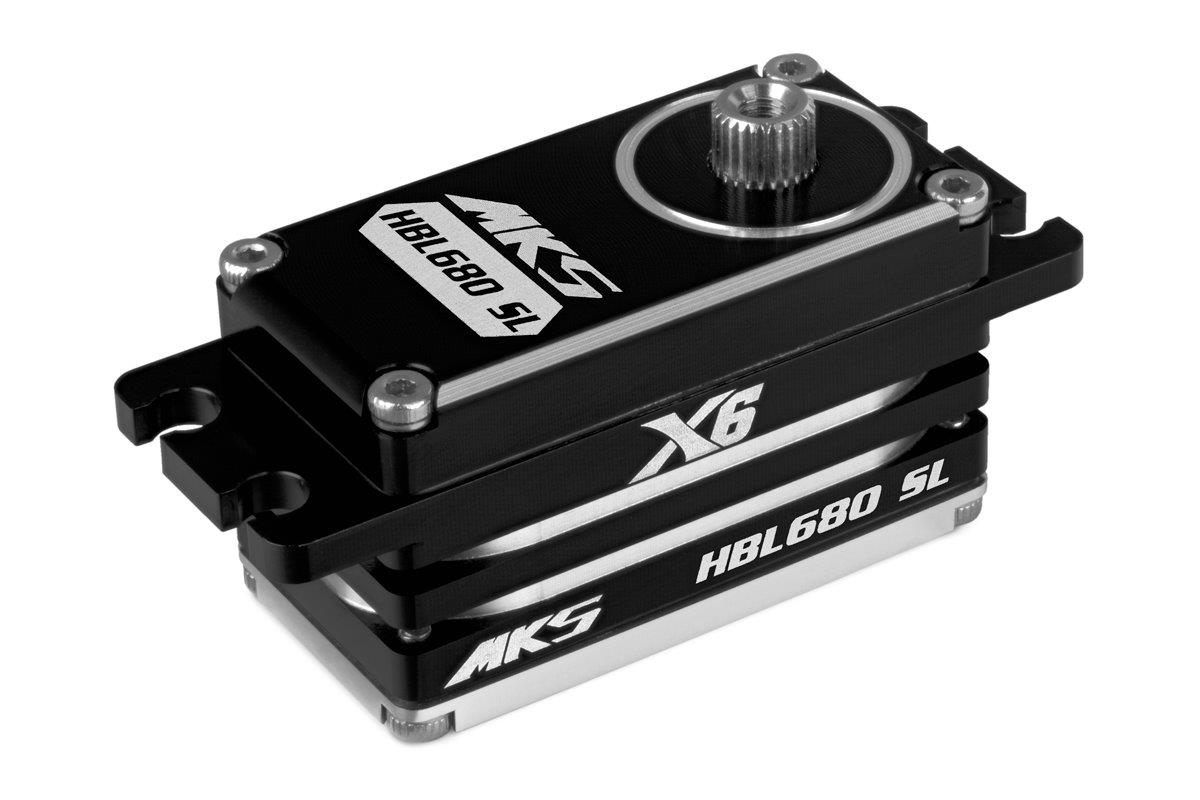

MKS HBL680SL (0.045s/60°, 9,5kg.cm)

High torque/ultra high speed 54g HV digital narrowband (760µs) brushless low-profile standard servo w. metal gears; input voltage 6.0-8.4V, 2xBB. Ideal for tail rotors of 550-700 class helicopters, compatible with most of 760µs gyro and flybarless systems. Torque 7.0kg.cm, speed 0.056s/60° at 6.0V, torque 8.6kg.cm, speed 0.045s/60° at 7.4V, torque 9.5kg.cm, speed 0.041s/60° at 8.2V. Aluminium case w. CNC milled heatsink for perfect heat dissipation. Dimensions 40.5x20.5x23.1mm, weight 54g. Non-programmable.

High torque/ultra high speed narrowband (760µs) digital low-profile standard brushless servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 550-700 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads. This servo is not programmable.

Input voltage range 6.0-7.4 V (nominal), 4.8-8.4 V (operational).

Servo dimensions: Standard
Servo type: Digital
Programmable: No
Torque at 6.0V [kg∙cm]: 7
Torque at 7.4V [kg∙cm]: 8.6
Torque at 8.2 V [kg∙cm]: 9.5
Speed at 6.0V [s/60st.]: 0.056
Speed at 7.4V [s/60st.]: 0.045
Speed at 8.2 V [s/60st.]: 0.041
Control pulse width in neutral [µs]: 760
Frame Rate [Hz]: 560
Deadband [ms]: 0.0004
Servo gears: Metal
Ball bearings: 2×
High-voltage: Yes
Power supply [V]: 6 - 8.4

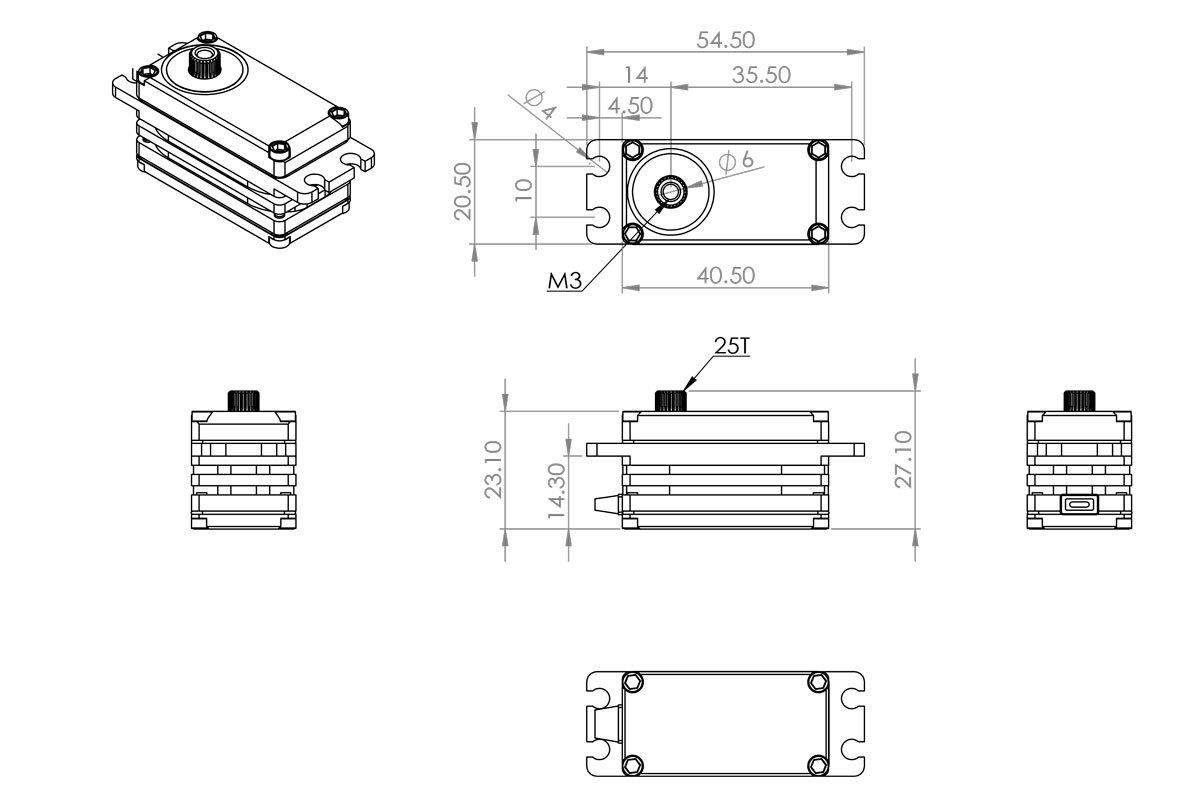

Length [mm]: 40.5
Width [mm]: 20.5
Height [mm]: 23.1
Weight [g]: 54
Intended for: Helicopters
Servo motor type: Brushless
