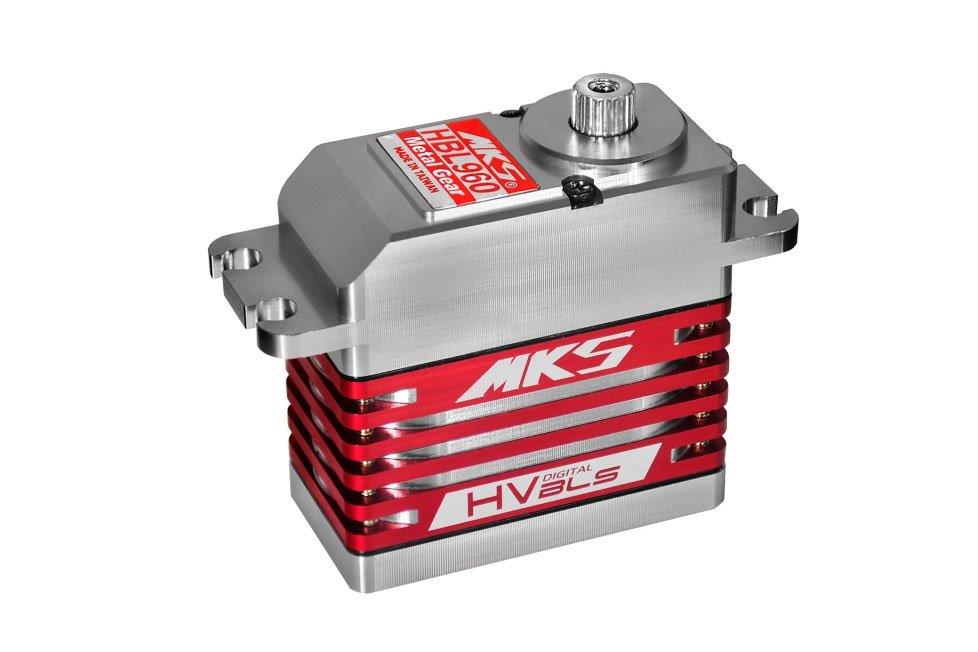

MKS HBL960 0.09s/60°, 18.6kg.cm

Very high torque/very high speed programmable digital standard brushless servo with metal gears and twin ballraced output shaft. Ideal for cyclic of 600-800 class helicopters. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads.

Input voltage range 6.0-7.4 V (nominal).

Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.

Servo dimensions Standard
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg∙cm] 13.6
Thrust at 7.4V [kg∙cm] 17
Torque at 8.2 V [kg∙cm] 18.6
Speed at 6.0V [s/60st.] 0.12
Speed at 7.4V [s/60st.] 0.1
Speed at 8.2 V [s/60st.] 0.09
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.0008
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4

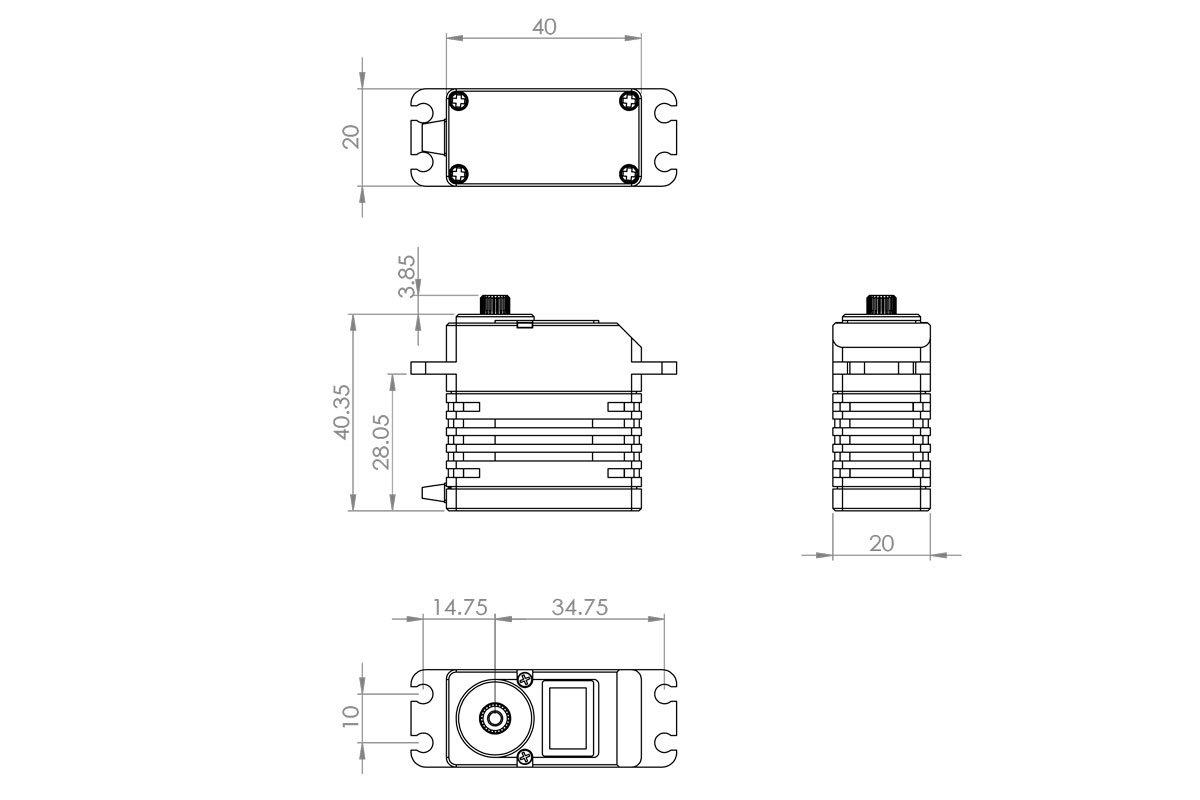

Length [mm] 40
Width [mm] 20
Height [mm] 40
Weight [g] 70.15
Intended for Aeroplanes,Helicopters
