MKS HBL980 0.03s/60°, 6.2kg.cm
1 602,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: MKS10006
Ultra high speed narrowband (760µs) digital standard brushless servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 550-800 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case for perfect cooling even under high loads. This servo is not programmable.
Input voltage range 6.0-7.4 V (nominal).
Servo dimensions Standard
Servo type Digital
Programmable No
Thrust at 6.0V [kg∙cm] 4.5
Thrust at 7.4V [kg∙cm] 5.6
Torque at 8.2 V [kg∙cm] 6.2
Speed at 6.0V [s/60st.] 0.04
Speed at 7.4V [s/60st.] 0.036
Speed at 8.2 V [s/60st.] 0.03
Control pulse width in neutral [µs] 760
Frame Rate [Hz] 560
Deadband [ms] 0.0004
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4

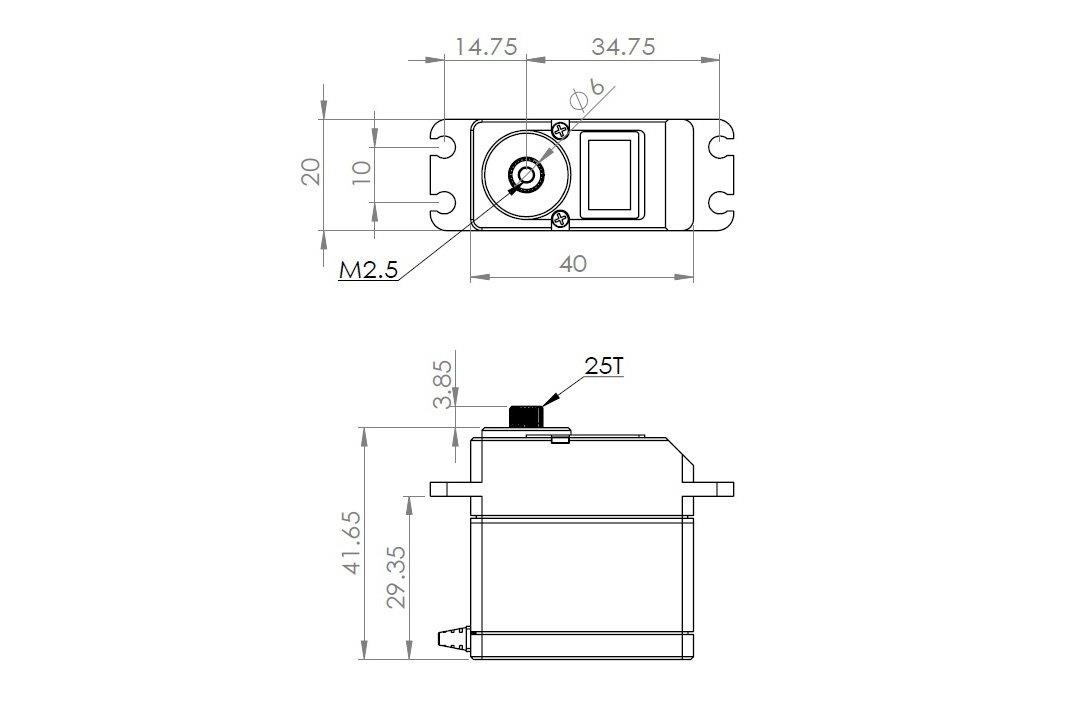

Length [mm] 40
Width [mm] 20
Height [mm] 40
Weight [g] 70.29
Intended for Helicopters
