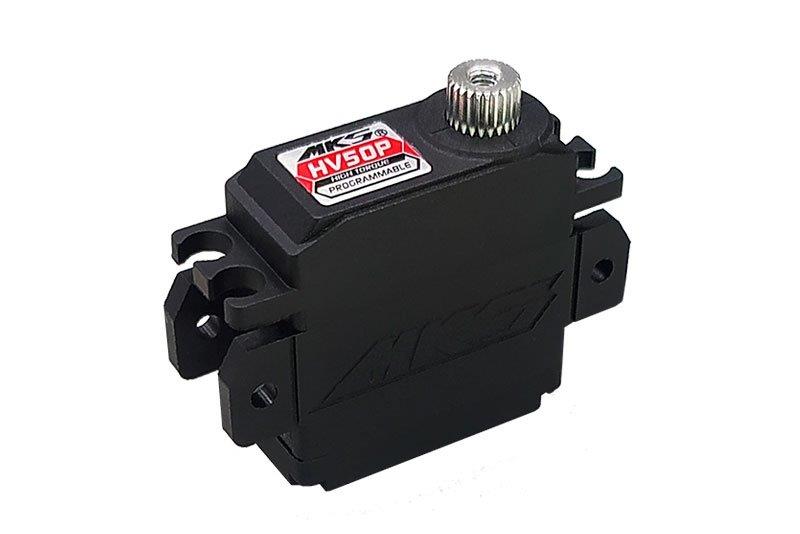

MKS HV50P 0.071s/60°, 8.3kg.cm
1 185 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: MKS30001
Ultra high torque/ super high speed programmable digital micro servo with metal gears with twin ballraced output shaft. It was specially designed for contest 1/12th on-road RC cars, developed in cooperation with the Europen champion Max Mächler. A plastic case with regular and flat mounting lugs for easy installation into any chassis.
Wide input voltage range 3.7-7.4 V (nominal), operational 3.5-8.4 V.
Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.
Left Angle: Max. Left angle adjustment.
Right Angle: Max. Right angle adjustment.
Reversion: Reverse of the PWM command.
Allow Uncont: The Servo move to the Uncontrolled Position when the PWM command is loss.
Uncontrolled Pos: The emergency position in the case of PWM command loss, if the Allow Uncont is turned on.
Uncontrolled Time: The Servo will move to the Uncontrolled Pos after the Uncontrolled Time when the PWM command is loss.

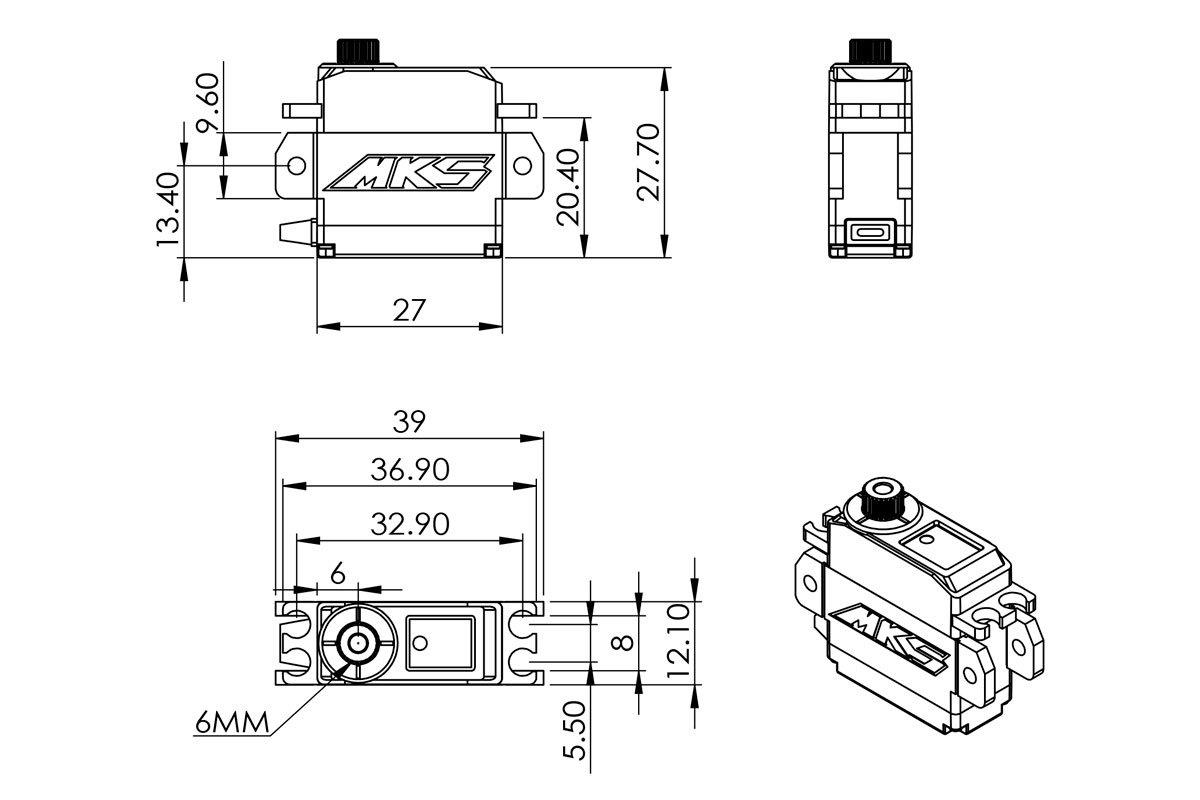

Servo dimensions Micro
Servo type Digital
Programmable Yes
Torque at 3.7 V [kg∙cm] 3.75
Thrust at 6.0V [kg∙cm] 6.1
Thrust at 7.4V [kg∙cm] 7.5
Torque at 8.2 V [kg∙cm] 8.3
Speed at 3.7 V [s/60st.] 0.157
Speed at 6.0V [s/60st.] 0.097
Speed at 7.4V [s/60st.] 0.079
Speed at 8.2 V [s/60st.] 0.071
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.001
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 3.7 - 8.4
Length [mm] 27
Width [mm] 12.1
Height [mm] 27.7
Weight [g] 18.1
Intended for On-road cars
