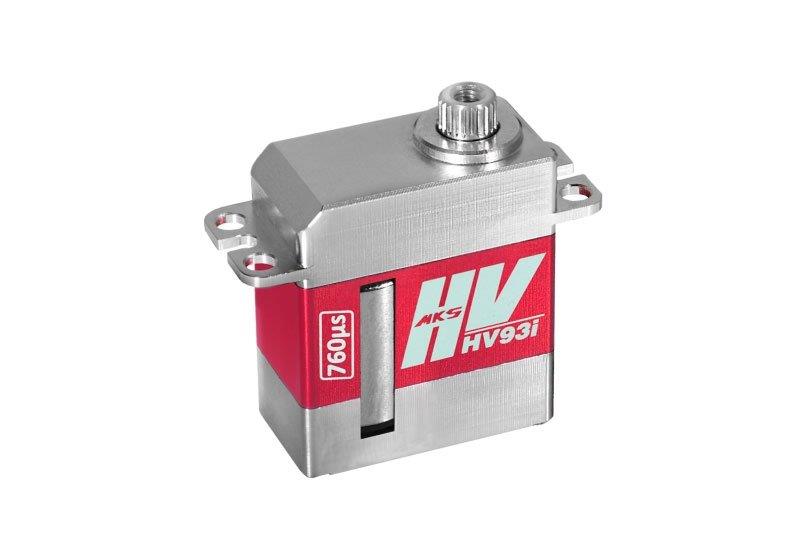

MKS HV93i (0.031s/60°, 2.6kg.cm)
996,25 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: MKS25002
Ultra high speed narrowband (760µs) digital micro servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 380-420 class mini helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case for perfect cooling even under high loads. This servo is not programmable.
Input voltage range 6.0-7.4 V (nominal).
Servo dimensions Micro
Servo type Digital
Programmable No
Thrust at 6.0V [kg∙cm] 1.8
Thrust at 7.4V [kg∙cm] 2.3
Torque at 8.2 V [kg∙cm] 2.6
Speed at 6.0V [s/60st.] 0.043
Speed at 7.4V [s/60st.] 0.035
Speed at 8.2 V [s/60st.] 0.031
Control pulse width in neutral [µs] 760
Frame Rate [Hz] 560
Deadband [ms] 0.0005
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4

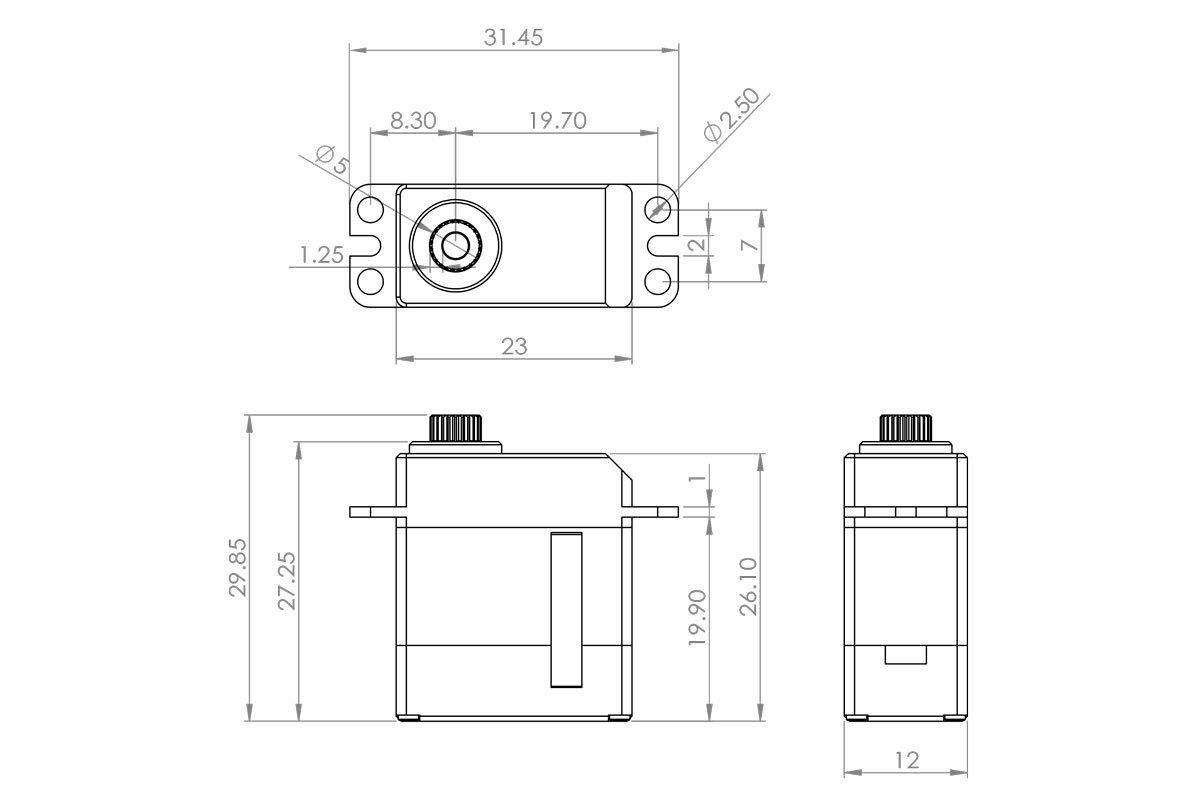

Length [mm] 23
Width [mm] 12
Height [mm] 27.25
Weight [g] 19.87
Intended for Helicopters
