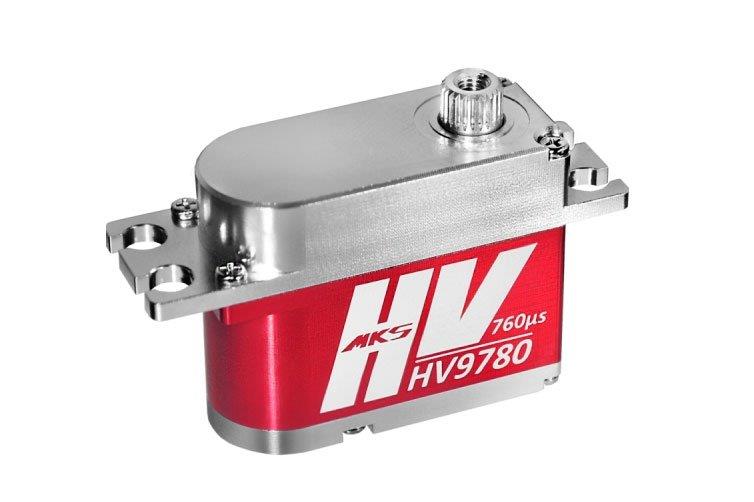

MKS HV9780 0.04s/60°, 4.5kg.cm
1 195 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: MKS08005
Ultra high speed narrowband (760µs) digital mini servo with metal gears and twin ballraced output shaft. Ideal for tail rotors of 500 class helicopters, compatible with most of 760µs gyro and flybarless systems. An aluminium case for perfect cooling even under high loads. This servo is not programmable.
Input voltage range 6.0-7.4 V (nominal).
Servo dimensions Mini
Servo type Digital
Programmable No
Thrust at 6.0V [kg∙cm] 3.3
Thrust at 7.4V [kg∙cm] 4
Torque at 8.2 V [kg∙cm] 4.5
Speed at 6.0V [s/60st.] 0.055
Speed at 7.4V [s/60st.] 0.045
Speed at 8.2 V [s/60st.] 0.04
Control pulse width in neutral [µs] 760
Frame Rate [Hz] 560
Deadband [ms] 0.0005
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4

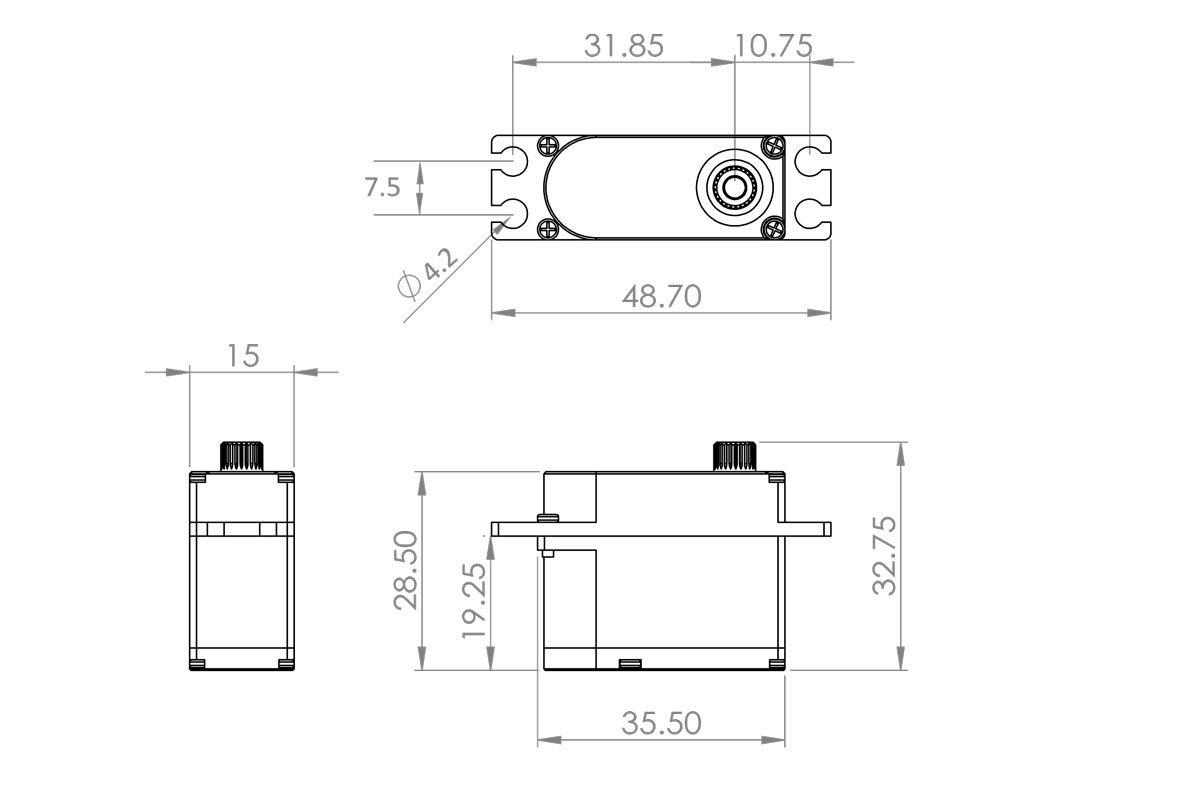

Length [mm] 35.5
Width [mm] 15
Height [mm] 28.55
Weight [g] 38.01
Intended for Helicopters
