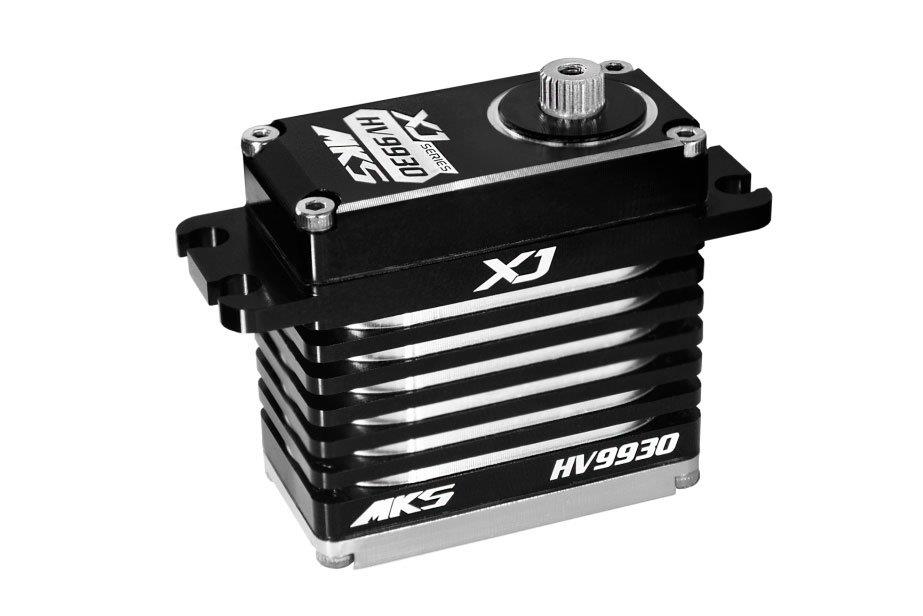

MKS HV9930 0.098s/60°, 43.0kg.cm
1 878,75 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: MKS27001
Very high torque/high speed programmable digital standard servo with metal gears and twin ballraced output shaft; for general use, large model aeroplanes. An aluminium case with CNC milled heatsink for perfect cooling even under extreme loads.
Input voltage range 6.0-7.4 V (nominal), operational 6.0-8.4 V.
Using the DSP-1 USB Digital Servo Programmer/interface and the MKS PC software you can program a wide range of servo parameters:
Dead Band: The signal value can be allowed to change under the circumstance without affecting the angle of the output / servo arm. MKS Default = 1μs or 1.2μs
Lock: The setting when the servo does not receive the signal - Keep at the last angular position / The motor is released.
Max. Duty: The duty cycle of the motor will be limited within this value.
Pulse Lower: The minimum angular range will be limited within this command value.
Neutral: The setting of the neutral position.
Pulse Upper: The maximum angular range will be limited within this command value.
Boost: The steps of the motor when starting-up. The larger the value is, the more powerful the step of the motor during the start-up.
Left Angle: Max. Left angle adjustment.
Right Angle: Max. Right angle adjustment.
Reversion: Reverse of the PWM command.
Allow Uncont: The Servo move to the Uncontrolled Position when the PWM command is loss.
Uncontrolled Pos: The emergency position in the case of PWM command loss, if the Allow Uncont is turned on.
Uncontrolled Time: The Servo will move to the Uncontrolled Pos after the Uncontrolled Time when the PWM command is loss.
Servo dimensions Standard
Servo type Digital
Programmable Yes
Thrust at 6.0V [kg∙cm] 31.4
Thrust at 7.4V [kg∙cm] 38.8
Torque at 8.2 V [kg∙cm] 43
Speed at 6.0V [s/60st.] 0.135
Speed at 7.4V [s/60st.] 0.11
Speed at 8.2 V [s/60st.] 0.098
Control pulse width in neutral [µs] 1520
Frame Rate [Hz] 333
Deadband [ms] 0.0007
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 6 - 8.4

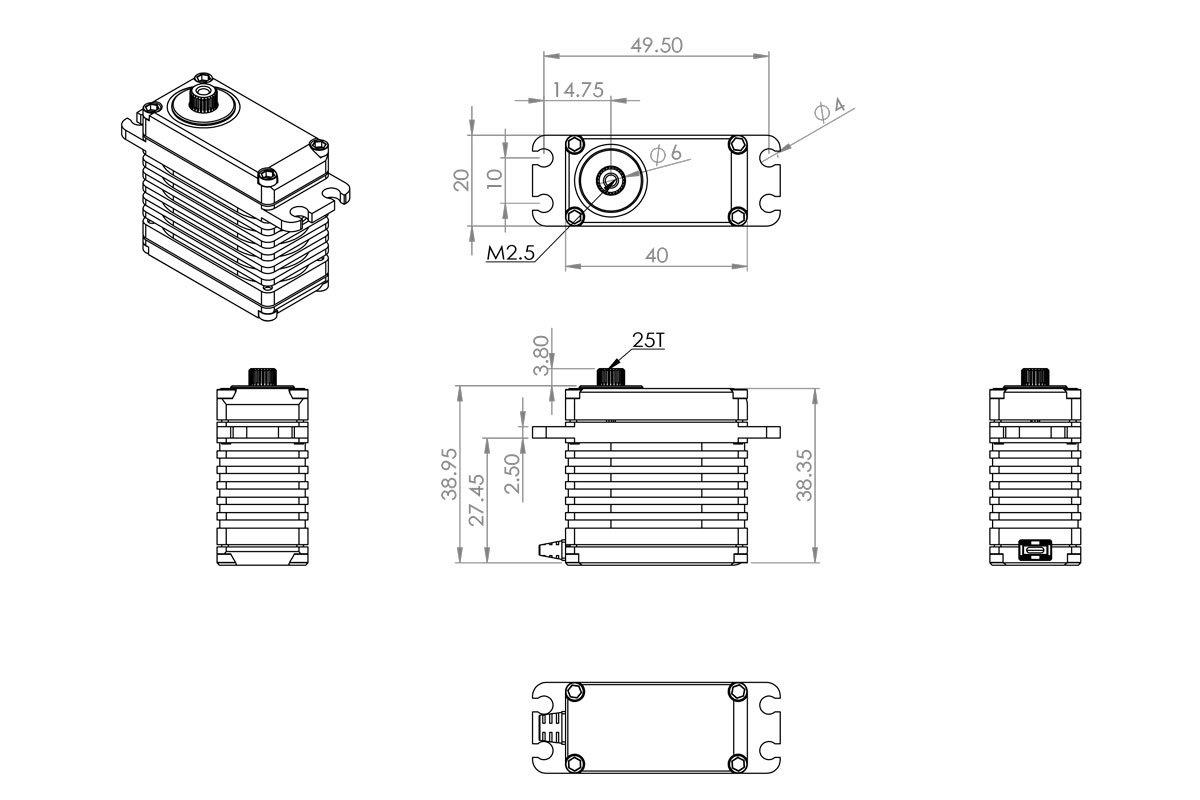

Length [mm] 40
Width [mm] 20
Height [mm] 38.8
Weight [g] 74
Intended for Aeroplanes,Helicopters
