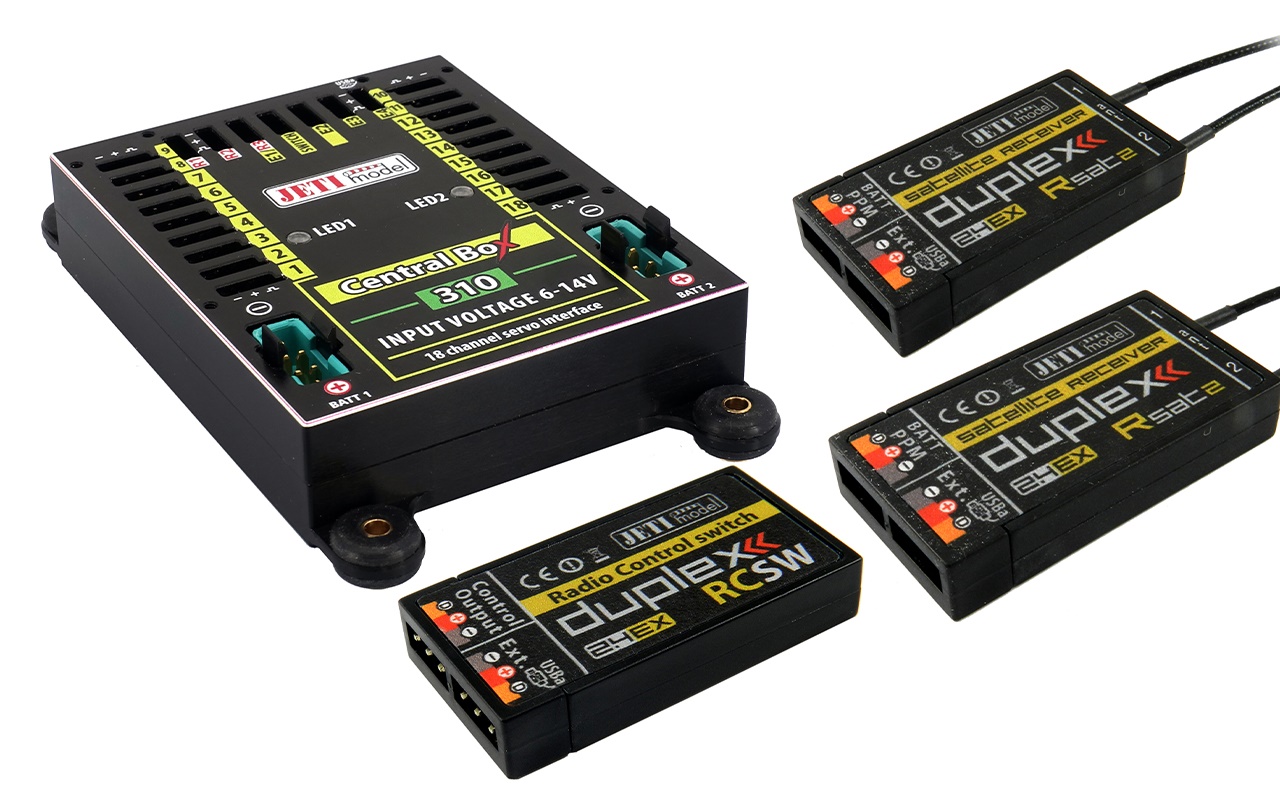

JETI mottagare Central box 310 med 2x Rsat2 och RCSW

The Central Box is a switchboard designed for the complete management of servos in a model with an emphasis on safety.

Central box 310
has full unreduced power from the internal BEC on the servo outputs.


• Adjustable powerful BEC for voltage stabilization
(connection of standard or HV servos)
• DITEX servo telemetry support
• Possibility to connect up to 3 receivers with serial communication
• built-in Expander function with the possibility of independent connection
of up to four JETI EX sensors
• Input for magnetic switch or RC switch
• Power supply batteries connected via MPX connector
• 100Hz mode of servo outputs (10ms period)
• EX telemetry support (measurement of voltage, current, capacity, temperature, etc.)
• Easy settings changes via DC/DS transmitter („Device explorer“)
• Robust metal construction with mounting holes

Weight [g]: 135
Dimensions [mm]: 66x107x21
Sustained current [A]: 25
Number of channels: 18
Telemetry: Yes
Operational temperature [°C]: -20 up to 75
Supply Voltage [V]: 4 up to 14
Satellite receiver support: Yes
Batteries LiXX: 1 -3
Voltage BEC [V]: 5 up to 8.4
Idle current [µA]: 80
Number of battery inputs: 2
Voltage stabilization: Yes
Peak current (2s) [A]: 230
Packaging: CB310 + RCSwitch + 2x receivers RSAT2
Protected servo output: No
