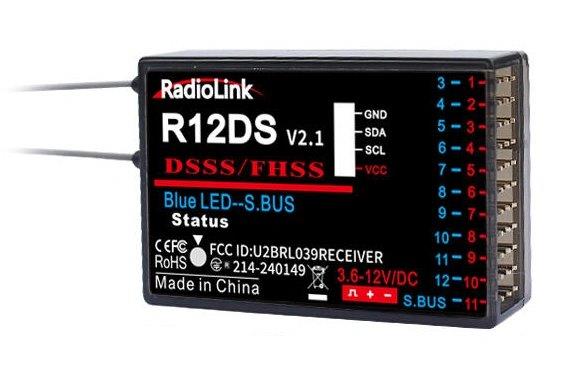

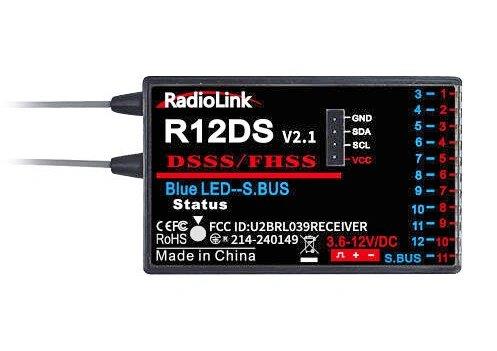

RadioLink Mottagare R12DS 12-kanaler (AT9, AT9S, AT10, AT10ll)
435 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: RLR12DS
Product Info:
RadioLink R12DS - 12CH Receiver
4000 Meters Control Distance
DSSS* and FHSS* hybrid spread spectrum, 16 channels pseudo-random frequency hopping, and QPSK* modulation ensures excellent anti-interference performance, highly constant, and stable transmission signal present on all 12 channels of R12DS. 4KM* Range enables all possible RC fun. The maximum PWM jitter is 1.84us with a standard of just 0.25us.
Direct Sequence Spread Spectrum transmissions multiply the data by a "noise" signal. This noise signal is a pseudorandom sequence of 1 and -1 at a frequency higher than that of the original signal.
Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.
Maximum range is tested in an unobstructed area free of interference.
SBUS and PWM Signals Output
12 channels. Detachable antennas. SBUS and PWM can operate simultaneously for seamless user control. Adaptable models include Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat and Robot. Compatible with PIXHWAK, MINI PIX, TURBO PIX, APM, Byme-A and Byme-D flight controllers which support SBUS or PPM signal.
Real-time Telemetry
Real-time model data enables users to access crucial information about the model's systems. When paired with flight module PRM-01, model voltage is displayed.
Compatible
Compatible with Radiolink transmitters AT10II, AT10, AT9S Pro, AT9S, and AT9.
R12DS Receiver Specs:
Size: 50x32x14.5mm
Antenna Length: 215mm
Weight: 14g
Channels: 11 for PWM signal output, 12 for SBUS and PWM signal output.
Signals Output: PWM/SBUS & PWM
Operating Voltage: 3.6-12V
Operating Current: 38-45mA @5V
Frequencies Band: 2.4GHz ISM (2400MHz~2483.5MHz）
Spread Spectrum Mode: DSSS & FHSS
Section Precision: 4096, 0.25us per section
Applicable Models: Helicopter, Fixed-wing, Glider, Multicopter, Car, Boat, Robot
Control Distance: 4000 meters in the air, the maximum range tested in unobstructed areas free of interference and may vary depending on local regulations.
Compatible Transmitters: AT10II, AT10, AT9S Pro, AT9S, AT9
Telemetry:
Connect PRM-01 for model voltage telemetry.
Connect PRM-03 and flight controller PIX6, PIXHAWK, CrossFlight-CE, CrossFlight, CrossRace Pro, CrossRace, Mini Pix, TURBO PiX, or APM for OSD information telemetry.
Mottagare Applikation: Båt , Bil , Flyg , Helikopter , Multirotor
Mottagare System: FHSS
Partistorlek: 1
Ursprungsland: CN
