RadioLink PRM-03 OSD Telemetri Sensor
202,50 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: RLPRM-03
Product Info:

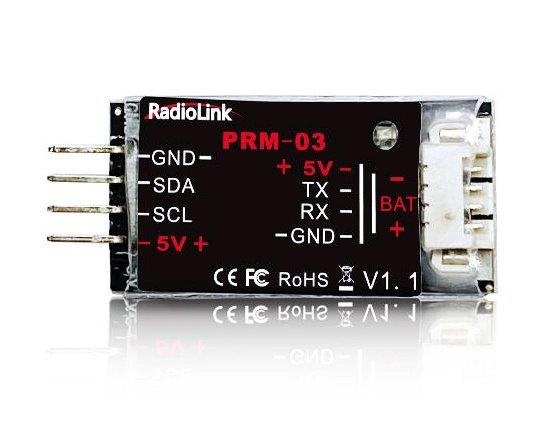

RadioLink PRM-03 - Real-time OSD Information Telemetry Module
Real-time Telemetry

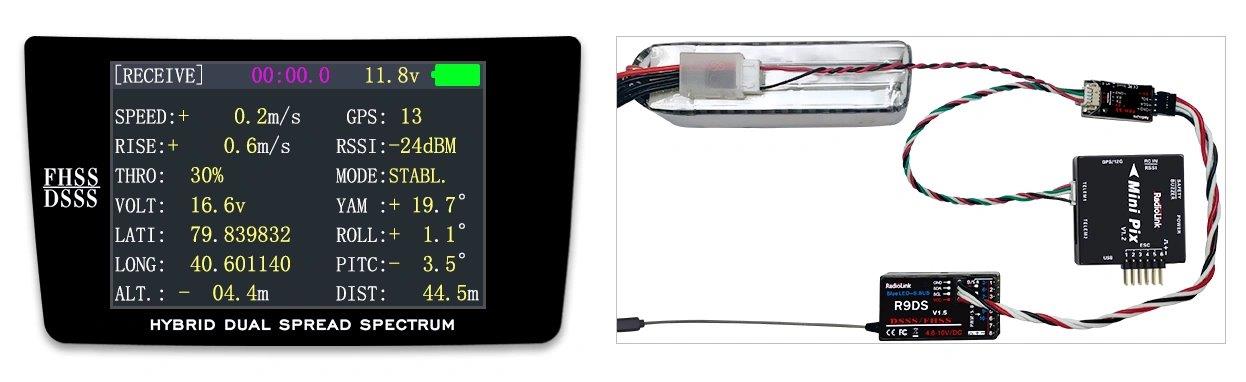

Real-time model data allows users to receive crucial information on the model's systems. With flight module PRM-03 and flight controller crossflight/Radiolink PIXHAWK/Mini Pix/TURBO PiX/open-source PIXHAWK/APM, model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch, and distance are displayed on the transmitter screen. Configurable sound/message alarms signal potential problems when low model voltage. A low model voltage alarm value can be customized.
Mini Enough

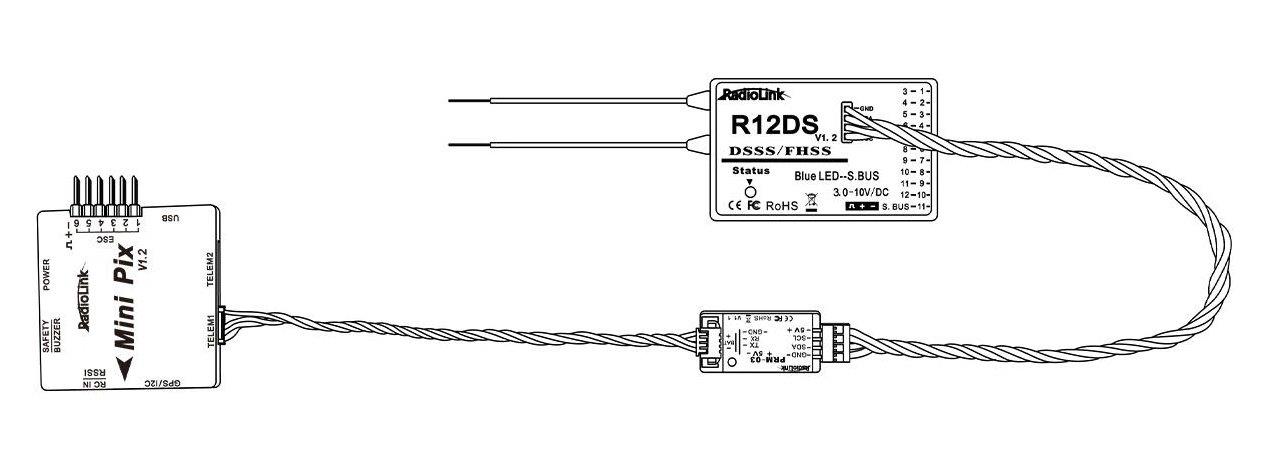

Compatible with flight controllers crossflight/Radiolink PIXHAWK/Mini Pix/TURBO PiX/open-source PIXHAWK/APM. A weight of 12g and a small size of 27x13mm makes the PRM-03 tiny enough even for a mini racing drone and glider.
PRM-03 Specifications:
Size: 27x13mm
Weight (with wires): 12g
Telemetry: model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI, flight mode, yaw, roll, pitch, and distance are displayed on the transmitter screen
Control Distance: same as the receiver control distance (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Voltage Input Range: 1S-12S LiPo
Compatible Receivers: R12DS, R12DSE, R9DS (Old version receiver: R10DS, R10DII, R10D, R9D)
Compatible Transmitters: AT10II, AT10, AT9S Pro, AT9S, AT9
Compatible Flight Controllers: PIX6, PIXHAWK, CrossFlight-CE, CrossFlight, CrossRace Pro, CrossRace, Mini Pix, TURBO PiX, and open-source PIXHAWK
Partistorlek: 1
Ursprungsland: CN
