Product Details
Key Features
Streamlined design in a compact and lightweight hard-case
Bind-button eliminates the need for a bind plug
SmartSafe Failsafe and Preset "Gas Mode" Failsafe options
Outstanding range and 5.5ms capable DSMR technology
Ideal for nearly any surface RC model

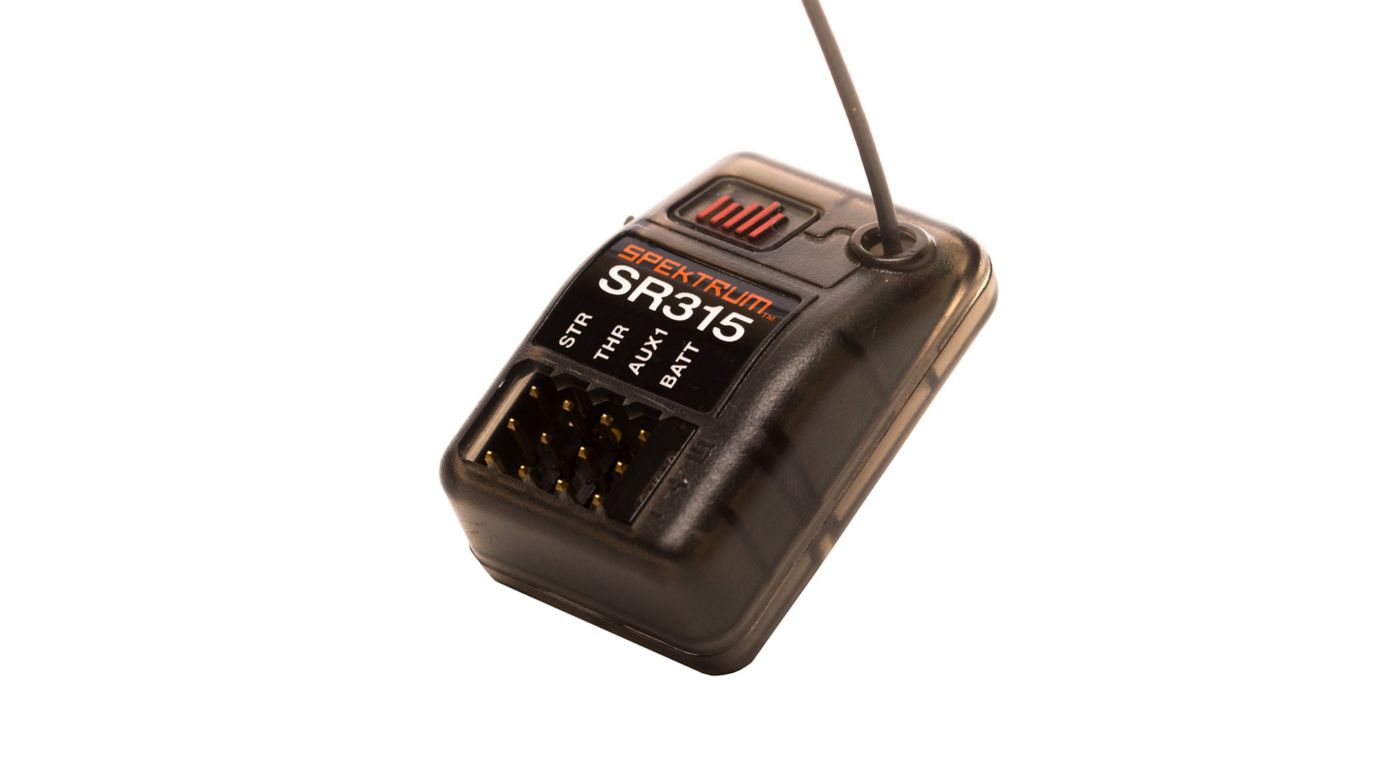

Dual Protocol SR315 Supports Spektrum DSMR/DSM2 2.4Ghz Protocol and SLT FHSS 2.4Ghz Protocol
Overview
Built around frequency-agile DSMR technology, the SR315 receiver delivers superb range and response, especially in noisy RF environments where a solid 2.4GHz link is crucial. Not only is the 2.4ghz link solid, this model also implements our lightning fast 5.5ms frame rate, providing a quicker , low-latency connection for the pro-level enthusiast.
The SR315 also features a new, modern case design that is small, streamlined, and ready for nearly any RC application. The case also features added antenna support and an integrated antenna tube slot for seamlessly easy installation.
No more bind plugs! Instead, an easy-to-use bind button is used to enter the bind mode. Plus, while binding, you have the choice of SmartSafe as well as preset Gas failsafe options. All combined, Spektrum gives drivers more features in an affordable receiver, so you can drive with confidence.
Product Specifications:
Modulation: DSMR
Telemetry: No
Remote Receiver Ports: 0
Technology: Standard
Band: 2.4GHz
Input Voltage: 3.5-9.6 V
Part Type: Electronics
Product Application: Surface
Product Height: 0.53 in (13.6 mm)
Serial Out: None
Application: Surface
Failsafe: Yes
Product Weight: 0.21 oz (6.0 g)
Water-Resistant: No
Forward Programming: No
Product Length: 1.28 in (32.7 mm)
Antenna Length: 9" (229 mm)
Product Width: 0.84 in (21.4 mm)
Channels: 3
Data Port: No
Integrated Variometer: No
Programmable: No
Bind Method: Bind Button
Range: Full
Telemetry Range: Drive By
