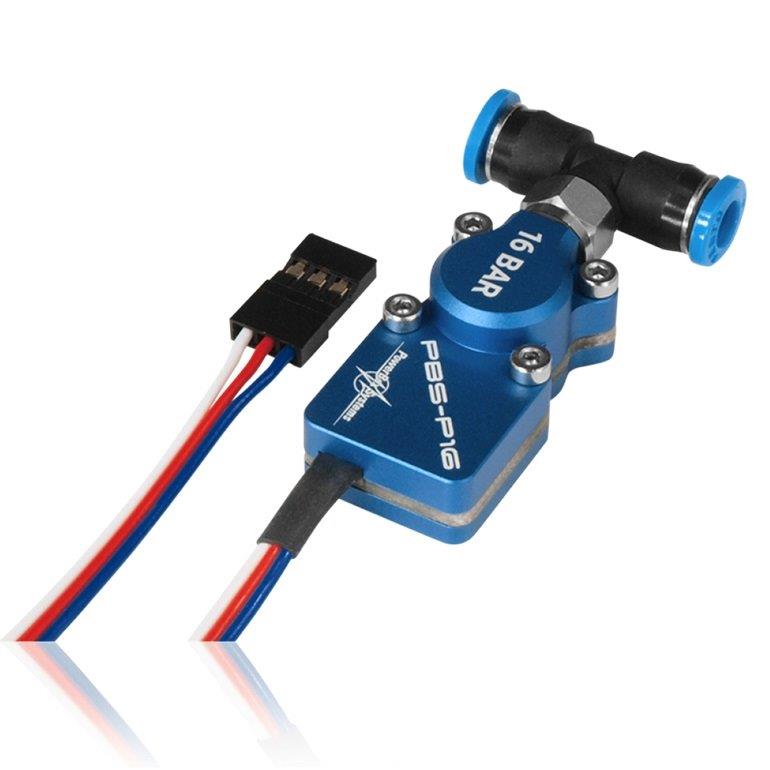

PowerBox pressure sensor 16Bar
1 363 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 6622
Features
Pressure measurement up to 16 Bar (230 psi)
Compact design
Low weight
Supports the following telemetry systems: PowerBox CORE P²BUS, Jeti EX-Bus, Multiplex M-Link, Graupner HoTT, Futaba
Technical Data
Operating voltage 4.0V - 9.0V
Current drain Power-on state max. 20mA
Supported RC systems PowerBox, Jeti, Multiplex, Graupner, Futaba
Dimensions 42 x 17 x 12 mm
Weight 14g
Temperature range -30°C to +85°C
Product description
The robust aluminium case is machined from solid, and contains a small pressure chamber fitted with a digital Mems pressure sensor. The Festo T-connector is simply installed in the existing 4 mm pressure line to the pressure tank. Other pressure hose connections can easily be screwed into the PBS-P16's M5 threaded socket.
The PBS-P16 is Plug'n'Play for the CORE telemetry system, but can also be switched for use with Jeti, Futaba*, M-Link and HoTT using the PowerBox Terminal program.
*Futaba will display the pressure value as a temperature as the system cannot show pressure values
