Beskrivning
Art.nr: 8250

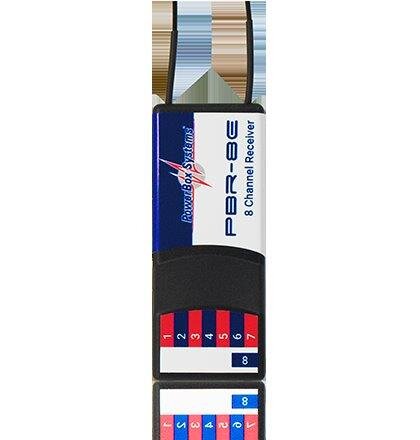

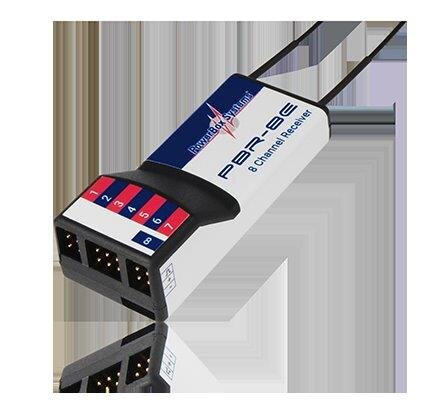

Product description The receiver units Five different receivers are available to match the CORE: PBR-9D This is a nine-channel receiver with two redundant receiver circuits. The unit features a P²BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 10. PBR-7S This is a seven-channel receiver with a single receiver circuit. The unit features a P²BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 8. PBR-5S This is a five-channel receiver with a single receiver circuit. The unit features a P²BUS interface for servo and telemetry data, while its minuscule size makes it the natural choice for small models. PBR-26D This is a satellite receiver featuring two redundant receiver circuits. The unit features a P²BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or S-BUS. This unit is designed to be connected to our PowerBox power supply systems or a flybarless system. PBR-8E This is a eight-channel receiver with two redundant receiver circuits. The unit features 8 PWM servo outputs and telemetry data for battery voltage and RF-data. With the exception of the PBR-5S and the PBR-8E all receivers have a FastTrack interface with which the iGyro SAT can be easily connected! Features • 8 Channel 2.4GHz Receiver • Two independent redundant receiver circuits • Extreme interference rejection • Ultra-long range • Reception quality and airborne battery voltage available via telemetry as standard Technical Data Operating voltage 4.0V - 9.0V Supported RC systems CORE Channels 26 Servo sockets 8 Servo signal resolution 4096 Steps Dimensions 62 x 25 x 17 mm Weight 16g Temperature range -30°C to +85°C
