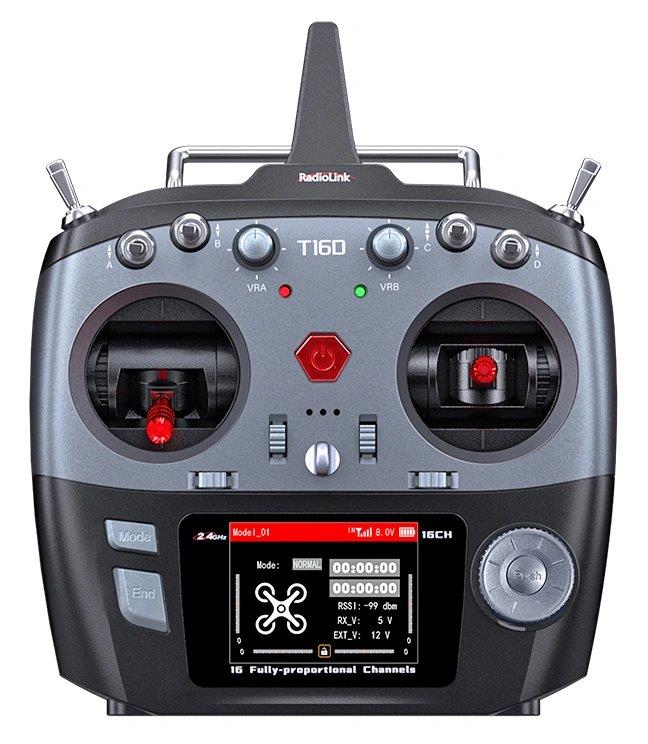

RadioLink T16D Mode-1 RC Sändare med 2x R16F Mottagare
2 379 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: RLT16DM1-1
Product Info:
RLT16DM1-1 - T16D Mode-1 RC Transmitter with 2x R16F Receivers
16 Fully-proportional Channels Transmitter - Prodigy without Fear
Cutting-edge Communication Technology - Fearless of Interference
Relying on its pioneering communication algorithms, the Radiolink remote controllers are widely used in robotics, automotive, security, and other fields. The T16D has upgraded and optimized the original communication technology, improving the response speed and fault tolerance rate.
Excellent Anti-interference Capability
4096 Resolution
Up to 4000 Meters Control Distance
3ms Response
Excellent anti-interference performance, highly constant, and stable transmission signal present on all 16 channels of T16D.
Hundreds of users can compete at the same time without interference, far exceeding the industry's maximum limit of eight units at the same time. Help T16D users participate in large-scale events such as the International University Student Electronics Design/Engineering Competition, or racing drone competitions.
Supports ELRS, Crossfire, and Other Mainstream Long-range Modules - Realize the FPV aircraft's full parameters adjusted by the T16D
TBS Crossfire Nano TX
TBS Crossfire TX
BETAFPV ELRS Micro TX
BETAFPV ELRS Nano TX
Note: Due to their large size, the TBS Crossfire Nano TX, TBS Crossfire TX, and BETAFPV ELRS Nano TX do not support direct insertion.
If you need to use them, you must modify the back handle and purchase the fixing seat separately. It fully supports ELRS, TBS Crossfire, and other mainstream long-range modules to realize FPV aircraft full parameters adjusted by the T16D. The operating system can be synchronized to its latest version with one click through each long-range module script file. Realize the perfect combination of the humanized user interface of the remote control and the various functions of the open-source long-range modules.
Unique Personalized and Humanized Voice Broadcast Customization - Racing Drone Field, You Are the Coolest!
The unique user-defined voice, personalized and humanized voice broadcast. Voice broadcast language, broadcast form, and broadcast content can be customization according to actual user needs.
Mainstream Operating Systems - Maintain a Trailblazing Position through Constant R&D Investment
The mainstream embedded system freeRTOS can synchronize with the latest needs anytime and provide unlimited upgrades. Plus with LVGL GUI, it realizes a colorful and responsive user interface. Compared with the current CO system used in open-source high-end remote controls that have stopped updating, freeRTOS is more powerful and efficient. It can embody high-resource processors' effects on low-resource processors, achieving the perfect combination of performance and price.
Top Configuration | 3ms Response
512K bytes RAM, 288MHz Basic Frequency Memory, 2.8 inches, 240x320 pixels, 16-color screen. A freeRTOS system plus LVGL GUI user interface realizes a colorful and responsive user interface. The same level of appearance, throttle joysticks, and gimbals as RC8X. With eight switches and four knobs, the user experience is uncompromised from electronics to construction. 16 channels respond simultaneously in 3ms, providing accurate response without delay.
16 Fully-proportional Channels Transmitter
The T16D, with 16 fully-proportional channels, exceeds the current high-end sixteen channels remote control which is only twelve fully-proportional channels, and the eighteen channels which are only fourteen fully-proportional channels. Rich user-defined functions can satisfy almost all products from engineering vehicles, and robots, to turbojet aircraft.
Full Models with Full Functions
T16D, the 16 fully proportional channels with full models and functions transmitters, support helicopters, fixed-wings, gliders, multi-rotors, racing drones, football drones, engineering vehicles, racing boats, robots, lawnmowers, bait boats, and other models on the market.
Built-in Simulator Functionality - Supports Both Wireless and Wired Simulators
Beyond traditional simulators like Phoenix, the T16D features built-in simulator support (requires a firmware upgrade to V1.7.1). With no external dongle needed, connect to your computer via a Type-C cable to seamlessly support open-source simulators such as TRYP FPV, AeroFly, Uncrashed, Liftoff, FPV LOGIC, Velocidrone compatible with macOS and Windows systems.
Trainer Function
Supports both the innovative wireless trainer mode and the traditional wired trainer mode. Unlike traditional trainer cables that restrict the instructors movement, the wireless trainer link allows the instructor to move freely within 600 meters without any impact! No need to stand constantly, run, or jump throughout the entire training sessiontrue freedom for the instructor. Teaching is no longer hard labor!
Real-time Flight Controller Data Transmission
In bait boat mode, the T16D can store up to 100 fishing-point GPS coordinates. Each fishing point can be named by the user, so anglers no longer need to remember or guess fishing-point numbers. The device can transmit real-time data such as Ship Distance, Satellite Number, Ship Voltage, Longitude, Latitude, and display route maps. With one click, users can check the flight-control mode, the coordinates of the fishing point information, and the home point information.
32 Groups of Programmable Mix Control - Unleash the Full Potential of Your Excavator!
With 32 groups of programmable mixing control, seamlessly control multi-functional operations including oil pumps, hydraulics, chainsaws, buckets, sound modules, and indicator lights to meet all your excavator simulation needs.
Radiolink One-Click Aircraft Mode Switching
After upgrading the T12D to firmware V1.8.2+, models 91-96 in the "MODEL" feature pre-loaded configurations for A560, D460, SU27, the 200mm soccer drone, the 400mm soccer drone, and the optical flow FPV drone F108. After toggling the corresponding flight mode switch, in addition to the main interface display of the remote controller, the remote controller also synchronizes the voice broadcast of the current flight mode to avoid the situation where there are too many flight modes and it is impossible to remember them accurately, or the flight mode is switched incorrectly.
Multiple Languages
The optional language menu includes Chinese, English, German, French, Russian, Japanese, Spanish, Korean, Thai and Polish, etc. Also, voice broadcasts can be customized in multiple languages. * More language versions are being added continuously.

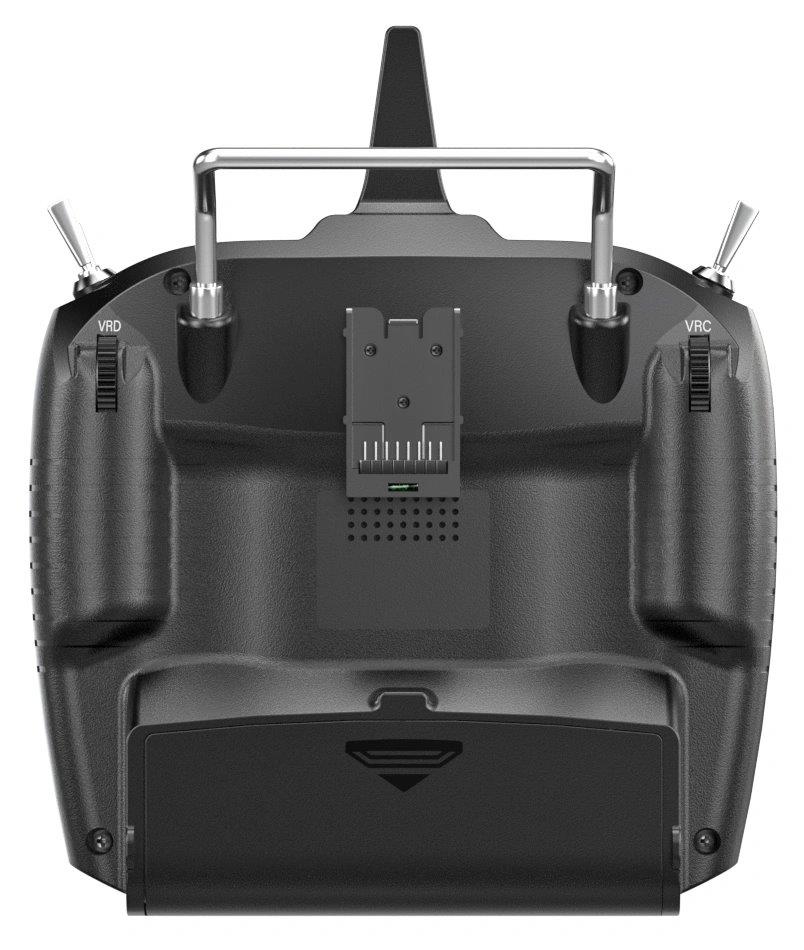

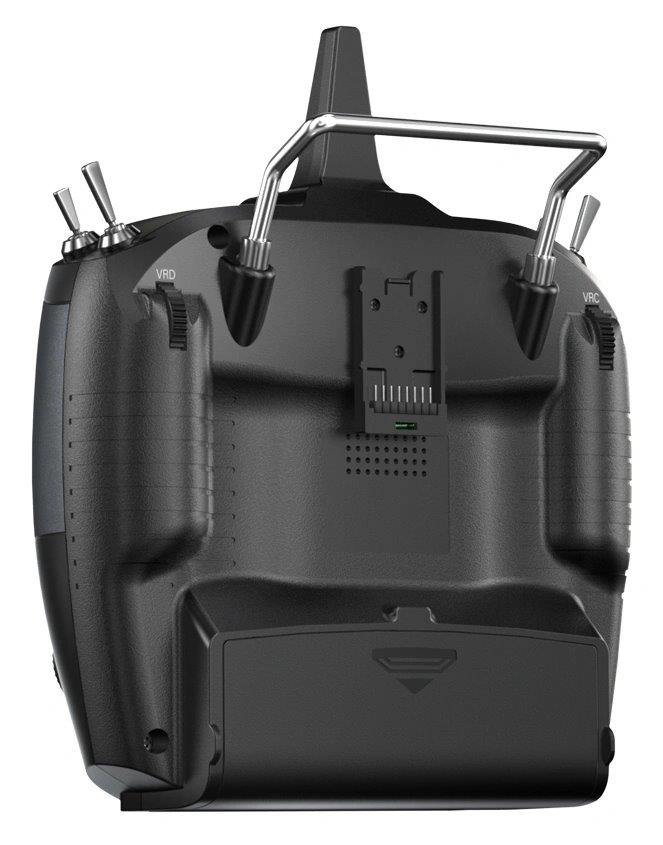

Ergonomically Designed
Four 2-position switches, three 3-position switches, 2 pieces of dials, 2 pieces of sliders(can back to the center automatically), and a trainer switch, plus ergonomically designed make the T16D fit a wide range of pilot needs. User-friendly design for each operation and handling makes T16D becomes an excellent transmitter for recreation, competition, or 3D aerobatics flying.
Real-time Latitude and Longitude, Distance, Heading, and Other Information Telemetry
The receiver has a built-in data transmission function*. The remote control features a 2.8-inch color screen, displaying rich information such as the names of fishing spots, the power of the transmitter, receiver, and bait boat, the distance meter between the shore and fishing spots, and the number of GPS satellites received.
* The receiver can choose R16F. R16F has built-in data transmission functions. When connected to the flight control, they can send back information such as latitude and longitude, distance, number of satellites, heading, and other information in real-time.
Wide Compatible
The T16D is delivered with two 16-channel R16F receivers.
The T16D is also compatible with the 16-channel receiver R16SM is designed for racing drones or multicopters.
The 16-channel receiver R16F is designed for a helicopter, fixed-wing, multicopter, car, boat, or robot.
The 8-channel receivers R8FG, R8FGH are designed for lawnmowers, bait boats.
The 8-channel receiver R8EF is designed for fixed-wing or helicopter.
The 8-channel receivers R8SM, R8FM, and R8XM are designed for racing drones or multicopters.
The 6-channel receivers R6FG, R6F, and the 7-channel receiver R7FG are designed for cars and boats.
The 4-channel mini receiver R4FGM is designed for Mini RC cars.
Receiver Supports Upgrade Online.
The 16-channel receiver, R16F, will be included with the T16D.
With a Type-C cable (for data transmission) connecting the R16F to the computer, the latest cutting-edge functions can be easily added without any extra devices.
Programmable Mix Control Cascade Function
All 16 channels can be programmed to any advanced setting*. Multiple mixing controls can be cascaded infinitely to achieve one switch controlling any number of channels. The T16D is the perfect choice whether for daily training equipment or use to compete with the world's top pilots.
Navigation Reminder Parameter Setting Menu. Humanized and Easy to Operate
The new navigation user reminder parameters setting menu is powerful and extremely easy to use. The transmitter can be used quickly without an instruction manual.
Reverse Polarity Protection Circuit. Multiple Power Supply Modes.
Uses a standard JST battery connector with a wide 7.418V input range! Supports power from 8 AA batteries, 2S4S LiPo batteries (Note: when using an external high-frequency module, the maximum supported input is 3S LiPo), or 18650 lithium batteries. Through circuit design, true reverse-polarity protection is achieved when the battery is inserted backwards, no current flows, so there's no risk of damaging the transmitter regardless of how long it remains incorrectly connected.
Power Supply Circuit Design Provides Longer Battery Life
Switching Mode Power Supply (SMPS) makes the operating amperage of T16D only 100mA(±10mA)@8.4VDC, it consumes 50% less power than similar products. The transmitter can operate for twelve hours with an 1800mAh LiPo battery.
T16D Transmitter Specs:
Size: 174.3x206.9x106.9mm
Battery Case Dimension: 114.4x35.4x32mm
Antenna Length: 90mm
Weight: 558g
Channels: 16 fully proportional channels, all 16 channels can be programmed
Output Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
Spread Spectrum: FHSS 67 channels pseudo-random frequency hopping
Operating Systems: freeRTOS + LVGL GUI
Long-range Module Script: LUA script
Long-range Module: Fully supports ELRS, TBS Crossfire, and other mainstream long-range modules to realize FPV aircraft full parameters adjusted by the T16D
Voice Broadcast: Unique personalized and humanized voice broadcast customization
Response Latency: 3ms, 4ms, 14ms can be selected
Channel Resolution: 4096 with regular jitter of 0.25us
Modulation Mode: GFSK
Channel Band Width: 400KHz
Channel Pacing: 1200KHz
Transmitter Power: <100mW (20dBm)
Adjacent Channel Rejection: >36dBm
Transmission Rate: 38kbps
Reception Sensitivity: -104dBm
PWM Output Range: 875-2125
Cycle: 15ms/per frame
Operating Voltage: 7.4-18.0V (8pcs AA battery, a 2S-4S LiPo or 2x 18650 Lithium battery)
Type-C Port Specifications:
Input Voltage: 5V (T16D can also be powered by a computer or a mobile power bank via Type-C cable)
Input Current: 500mA
Output Voltage: 4.6V-5.0V
Output Current: Maximum 1A
Operating Current: 100mA (±10mA) @8.4VDC
Control Distance:
① FHSS: Up to 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)
② CRSF: Depends on the RX and TX of the long-range module
Adaptable Models: Helicopter, Fixed-wing, Glider, Multicopter, Car, Boat, Robot
Signal Output: PWM, SBUS, PPM & CRSF
Low Voltage Alarm: Low transmitter voltage, low receiver voltage, low model battery voltage, or low RSSI alarm can be customized
Storage Model Quantity: 100
Storage Subsidiary ID Models Quantity: 16
270° Servo: Supported (Enable the 270° servo function set in Receiver Setting → RF SETTING → PROTOCOL menu.)
Simulator Function: Beyond traditional simulators like Phoenix, the T16D features built-in simulator support (requires a firmware upgrade to V1.7.1). With no external dongle needed, connect to your computer via a Type-C cable to seamlessly support open-source simulators such as TRYP FPV, AeroFly, Uncrashed, Liftoff, FPV LOGIC, and Velocidrone - compatible with macOS and Windows systems.
Trainer Function: Supported
Screen: 2.8 inches, 16 colorful screens, 320*240 pixels
Compatible Receivers: R16F (Standard), R16SM, R12F, R8EF, R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM
Compatible Control Board Hardware Models: Ardupilot, pix4, beta, Arduino, and Raspberry Pi, can be connected with SBUS signal
Operating Temperature: -30° to 85°C
R16F Receiver Specs:
Size: 45x32x15mm
Weight: 17g
Antenna Length: 205mm
Channels: 16
Operating Voltage: 3-12V
Operating Current: 50±10mA @5V
Signal Output: SBUS+CRSF+PWM
Output Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
Spread Spectrum: FHSS 67 channels pseudo-random frequency hopping
Section Precision: 4096, 0.25us per section
Adaptable Models: Helicopter, Fixed-wing, Glider, Multicopter, Car, Boat, Robot
Control Distance: Up tp 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)
Telemetry: Real-time built-in telemetry of the model battery voltage, RSSI, and receiver voltage. R16F has built-in data transmission functions. When connected to the flight control, they can send back information such as latitude and longitude, distance, number of satellites, heading, and other information in real-time.
EXT Battery Input: 1S-14S (3.0-60V)
Upgrade Online: With a Type-C cable (for data transmission) connecting the R16F to the computer, the latest cutting-edge functions can be easily added without any extra devices.
Response Latency: 3ms, 4ms, 14ms can be selected
Simulator Function: The R16F comes with a built-in PC Game Joystick communication program(requires a firmware upgrade to V1.7), so it supports the latest simulator by connecting to the computer directly via Type-C port, such as TRYP FPV, AeroFly, Uncrashed, liftoff, FPV LOGIC, Velocidrone (Black Sheep Simulator), and other open-source simulators. No need to supply additional power to the receiver. It can be used on both Apple and Windows computers.
Operating Temperature: -30° to 85°C
Compatible Transmitters: T16D, T12D, T8FB, T8S, RC8X, RC6GS V3, RC4GS V3, RC6GS V2, RC4GS V2, RC6GS & RC4GS
Partistorlek: 1
Ursprungsland: CN
