Holybro Microhard Telemetry Radio V2, P400 (Pair)
12 519 SEK
- Säkra kortbetalningar
- Fri frakt på ordrar över 2500kr
Beskrivning
Art.nr: 17038
Holybro Microhard Telemetry Radio integrates a Microhard Pico Series RF module, which is capable of delivering high-performance wireless serial communications in robust topologies, such as Point to Point, Point to Multipoint, and secure Mesh (Mesh only available on P900).
It uses frequency hopping spread spectrum (FHSS) technology, providing reliable wireless asynchronous data transfer between most equipment types that employ a serial interface. The radio can be configured using AT commands through the Data port or using the PicoConfig application through the USB. V2 design now does not require a UART to USB adapter for configuration; a dedicated switch enables easy mode change to change firmware parameters.
P900 Radio operates within the 902-928 MHz ISM frequency band, and P400 operates within 410-480MHz. You can select your radio based on your region's legal frequency band.
Feature
USB Type-C port, integrated USB to UART converter
6-pin JST-GH connector, which can be directly connected to the TELEM port on various flight controllers
XT30 power port with high voltage BEC onboard, supports DC7~35V voltage supply

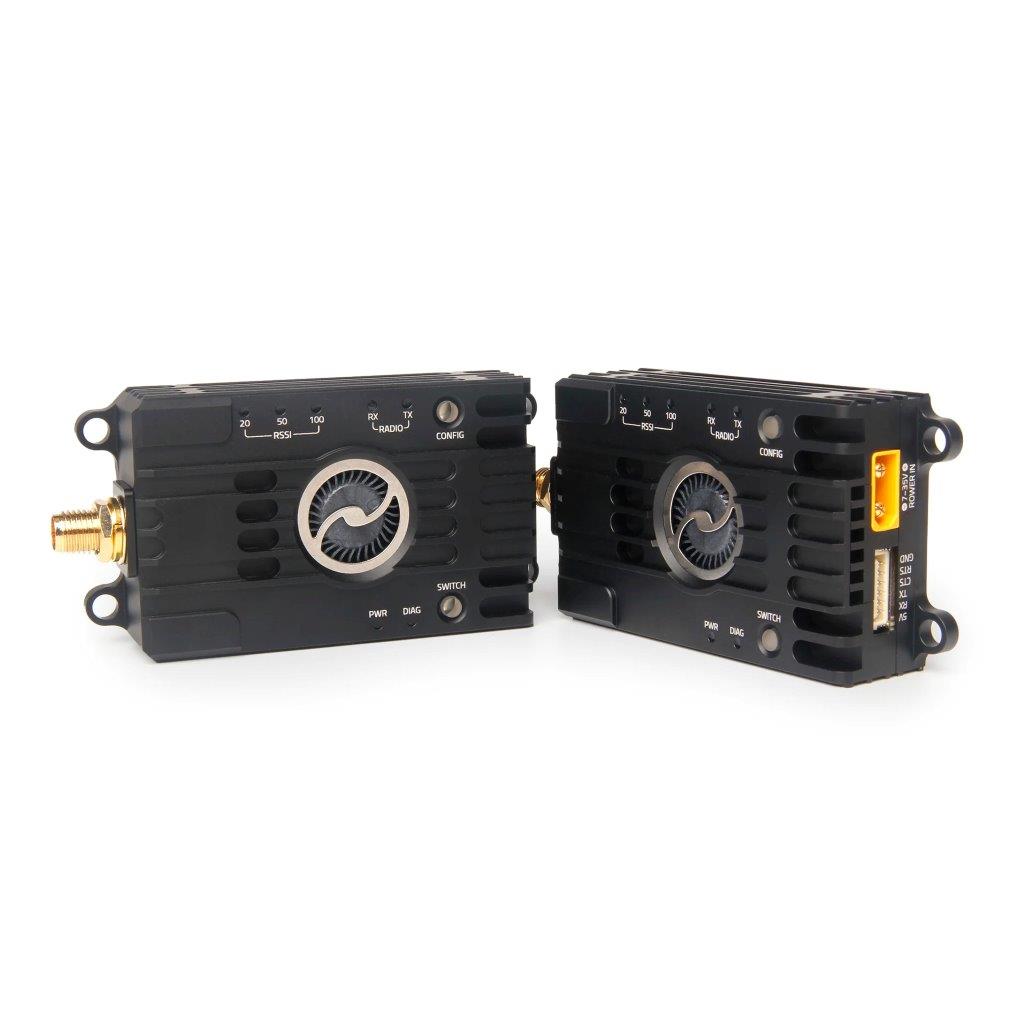

UART transmission LED indicator

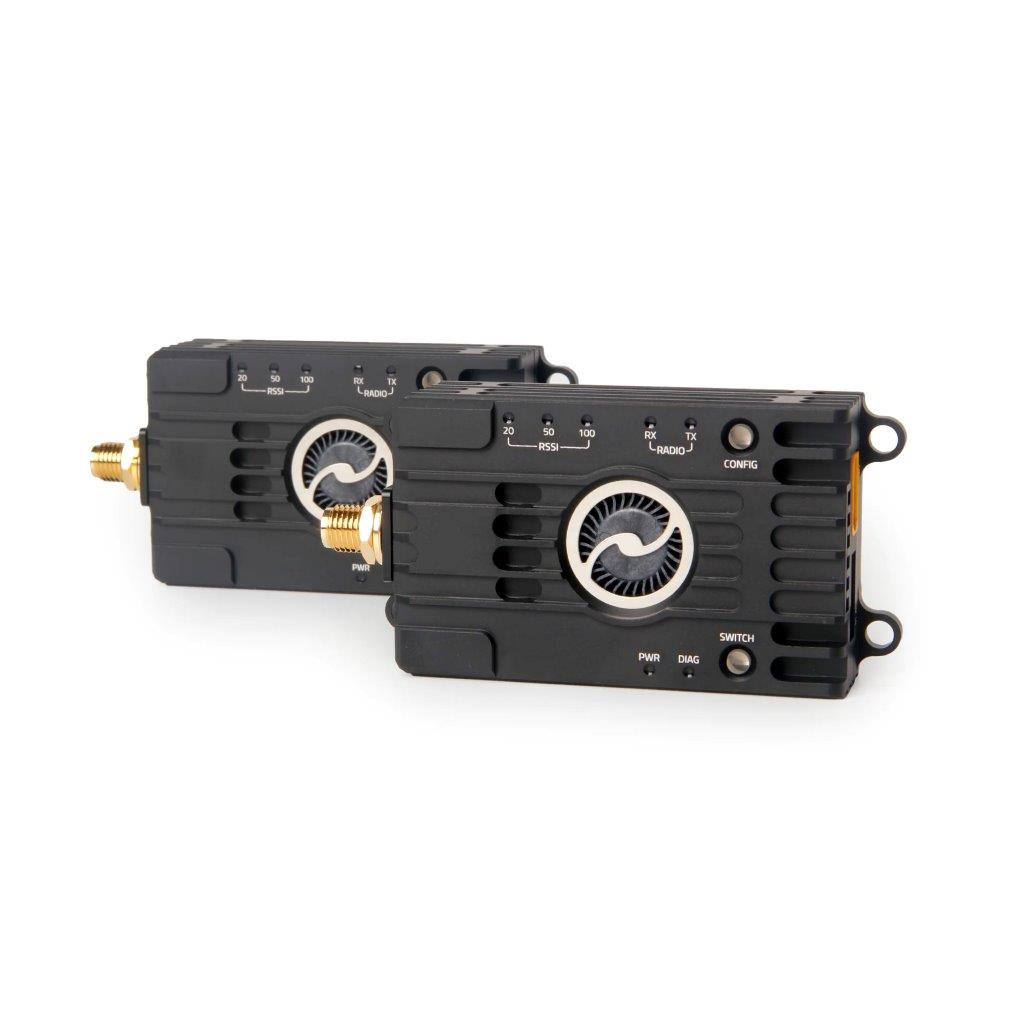

Three-stage RSSI LED indicator
Diagnostic Port LED indicator
Transmission within a public, license-exempt band of the radio spectrum
Transparent, low-latency link rates up to 276 kbps (P900) and 345 kbps (P860 & P400)
Supports a robust true Mesh operation with auto-routing (P900 Only)
32 bits of CRC, selectable retransmission, and forward error correction
Separate diagnostics port, transparent remote diagnostics, and online network control
Specification:
P900 V2 / P400-C1S V2
Frequency Range: 902 to 928 MHz / 410 to 480 MHz
Transmit Power
(software adjustable): 100mW to 1W (20-30dBm) / 100mW to 1W (20-30dBm)
Link Rate: Up to 276 kbps / Up to 345 kbps
Serial Baud Rate: Up to 230.4 kbps asynchronous / 300 bps to 230 kbps
Spreading Method: Frequency Hopping Spread Spectrum (FHSS) / Frequency Hopping,
GMSK, 2GFSK, 4GFSK, QPSK
Operating Modes:
Mesh, Point-to-Point, Point-to-Multipoint, Store and Forward,
Auto Routing, Self-Healing, Packet Routing Modes / Point-to-Point, Point-to-Multipoint,
Store & Forward Repeater, Peer-to-Peer
Input Voltage: DC7~35V
(4-position JST-GH)
Power Consumption:
Sleep < 1mA / Sleep < 1mA
Idle 3.5mA / Idle 20mA
Rx: 45mA to 98mA / Rx: 45mA to 98mA
Tx: 1000mA to 1400mA / Tx Peak: 2A
Error Detection: 32 bits of CRC, ARQ
Antenna Gain: 5dBi

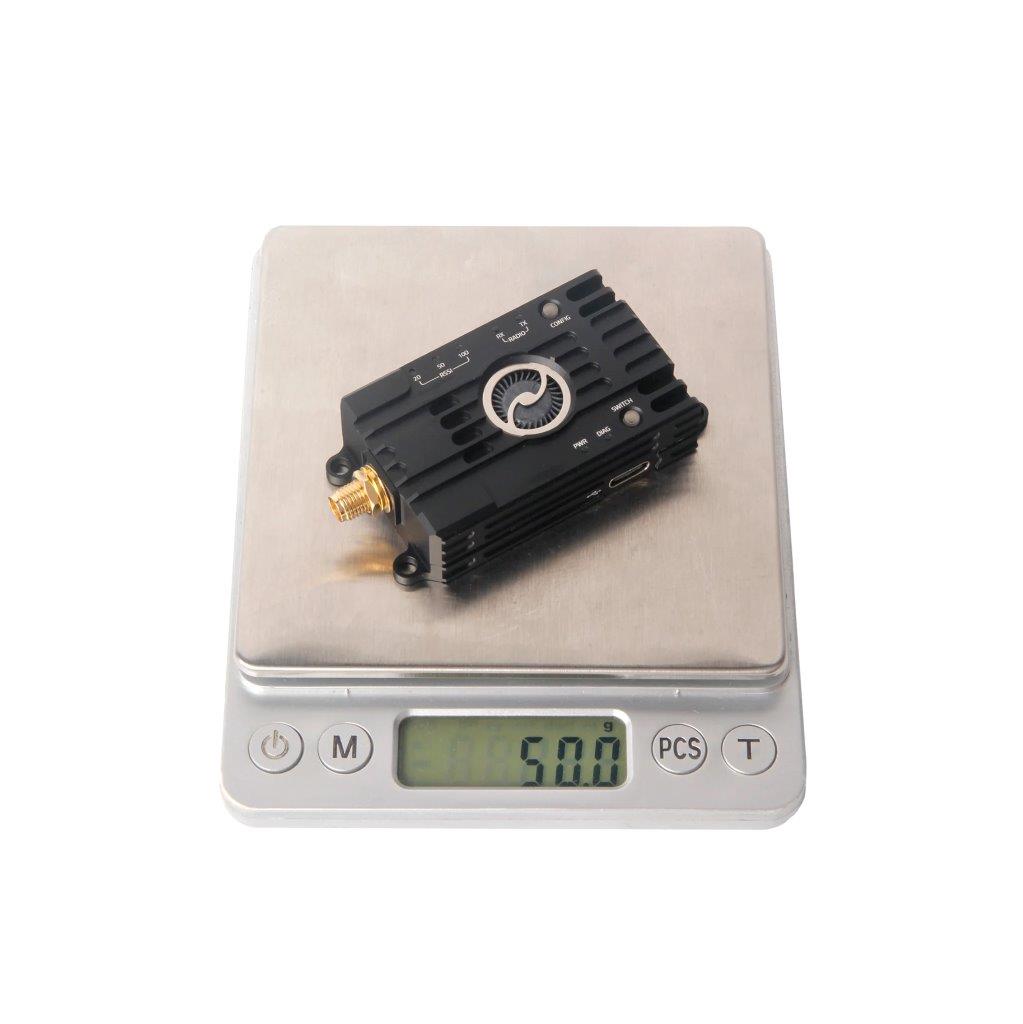

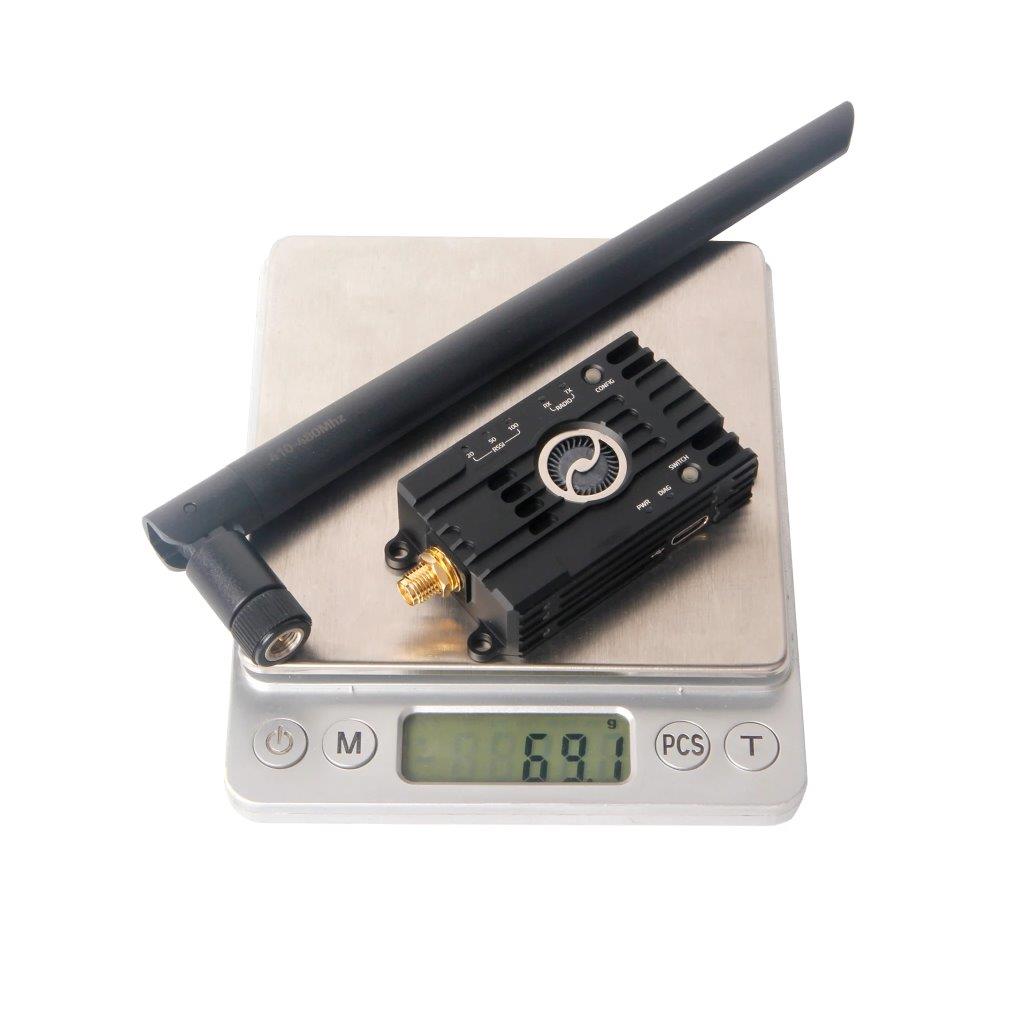

Weight:
51g (w/o antenna) / 51g (w/o antenna)
81g (/w antenna) / 76g (/w antenna)
SKU17035/17037 Includes:
1x Microhard P900/P400 V2 Radio
1x Antenna
1x XT30 Power cable
1x XT60 Power cable
1x GH 6P to 6P cable
1x Type-C cable

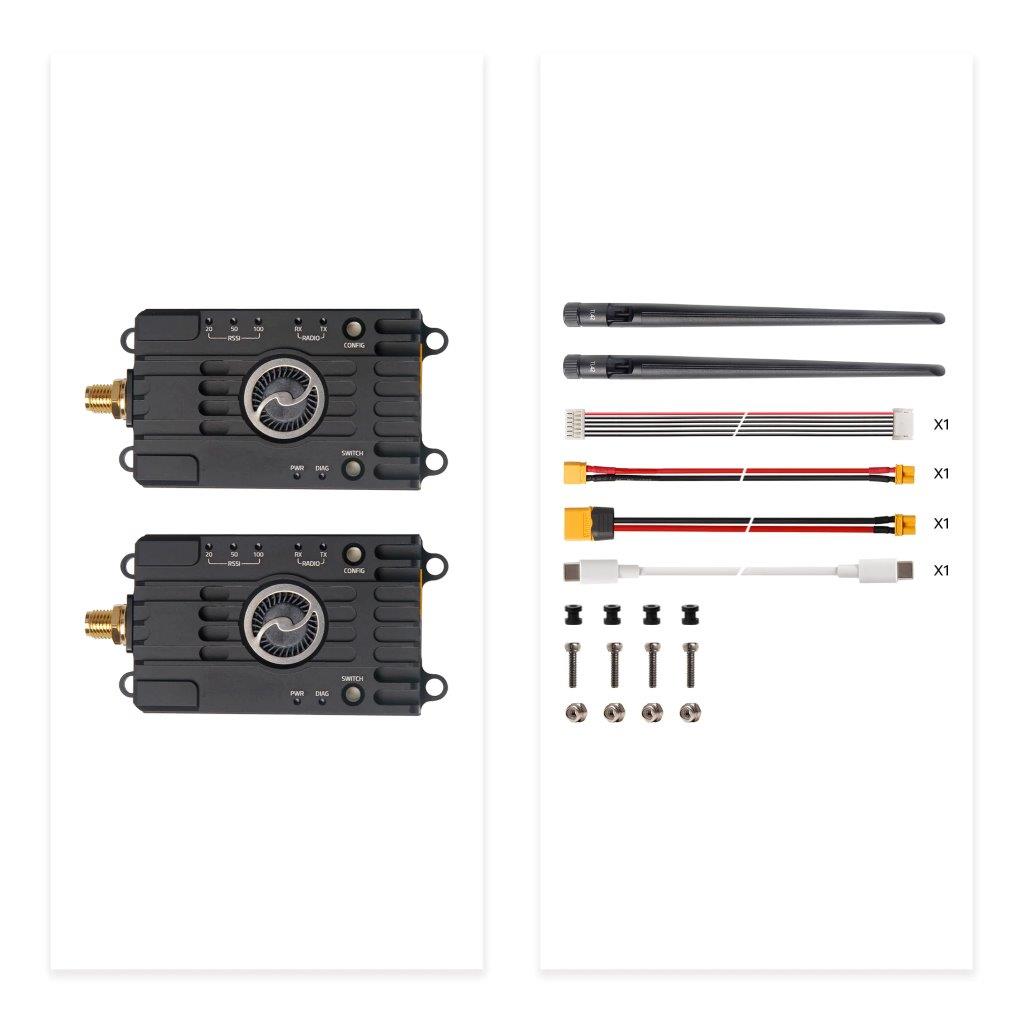

SKU17036/17038 Includes:
2x Microhard P900/P400 V2 Radio
2x Antennas
1x XT30 Power cable
1x XT60 Power cable
1x GH 6P to 6P cable
1x Type-C cable
